#09135
NEW
SwitchesTP-LINKTL-SG105PE

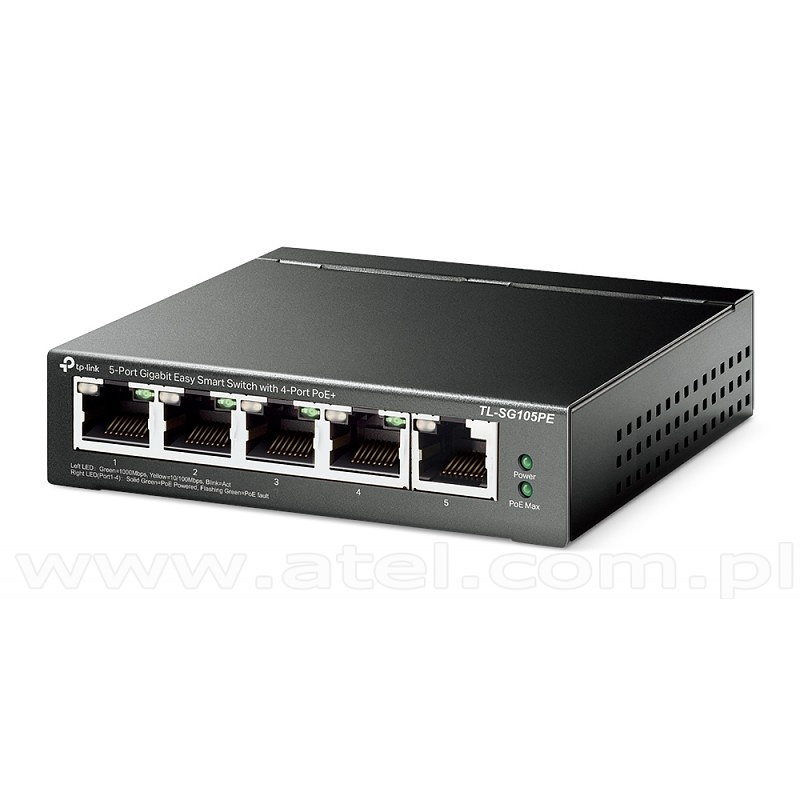

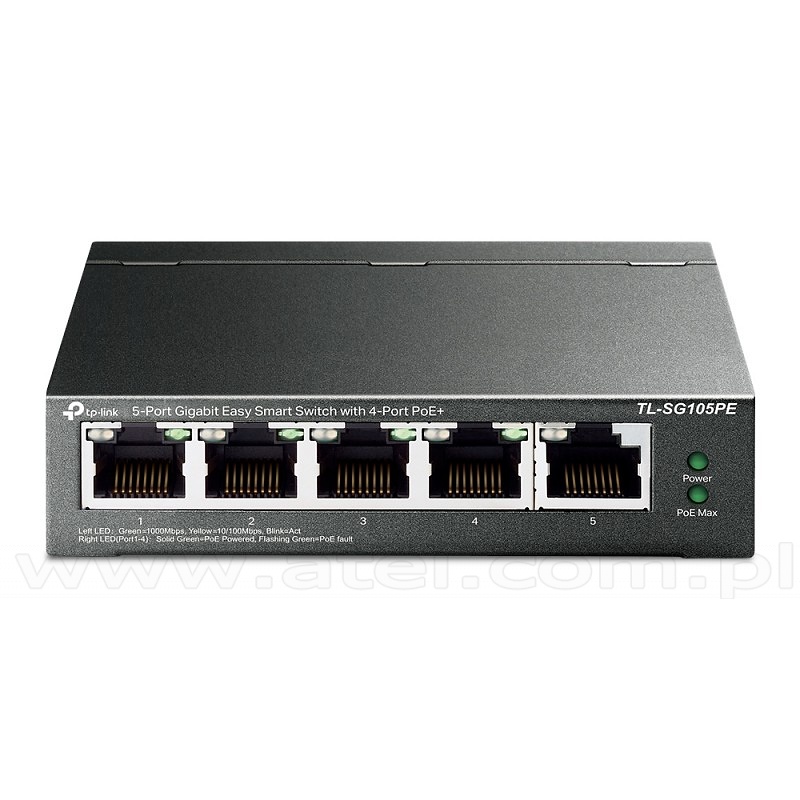

Smart switch, 5x 10/100/1000 RJ-45, PoE+, desktop (TP-Link TL-SG105PE)

  • Five 10/100/1000Mbps RJ45 ports
  • Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
  • Supports PoE power up to 65 W for all PoE ports*
  • Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and Easy Smart Configuration Utility simplify configuration
  • Fanless design lowers energy consumption and eliminates operating noise
Standards IEEE 802.3i,
IEEE 802.3u,
IEEE 802.3ab,
IEEE 802.3af,
IEEE 802.3x,
IEEE 802.1q,
IEEE 802.1p,
IEEE 802.3at
Copper ports 5x 10/100/1000 Mbps RJ-45
PoE+ Ports Port1- Port4
Power Supply 65W
Switching Capacity 10Gbps
Packet Forwarding Rate 7.44 Mpps
Mac Address Table 2K
Jumbo Frame 16 KB
Packet Buffer Memory 1.5 Mb
Auto MDI/MDI-X yes
Auto-negotiation (Nway) yes
Switching architecture / speed Store and Forward
Quality of Service Support Port-Based/802.1p/DSCP priority,
Support 4 priority queues,
Rate Limit,
Storm Control
L2 Features IGMP Snooping V1/V2/V3,
Static Link Aggregation,
Port Mirroring,
Cable Diagnostics,
Loop Prevention,
PoE Auto Recovery,
Extend Mode
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs),
MTU/Port/Tag VLAN
Management Web-based GUI,
Easy Smart Configuration Utility
Housing / case type desktop,
metal
Dimensions 3.9 3.9 1.0 in (99.8 98 25 mm)
Operating temperature 0C 40C
Operating humidity 10% 90%,
non-condensing

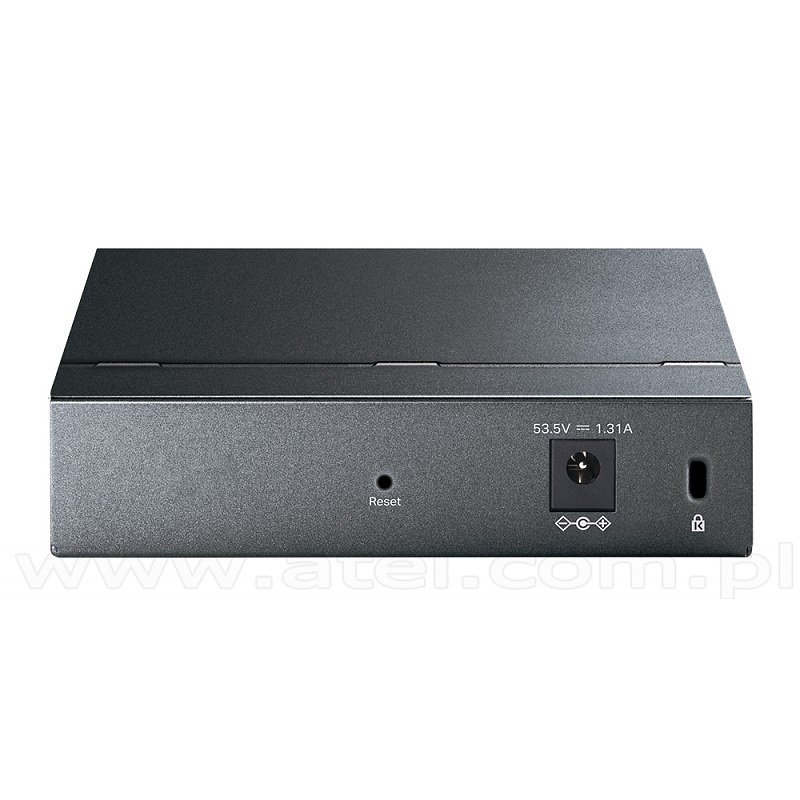

Power External Power Adapter (Output 53.5 VDC/1.31 A)
Power Consumption 4.52W (max. no PD connected),
75.16W (max. with 65W PD connected)
Max Heat Dissipation 15.41BTU/h(no PD connected),
256.30BTU/h(with 65W PD connected)
Certificates CE,
FCC,
RoHS
Package Contents TL-SG105PE,
Power Cord,
Installation Guide,
Resource CD,
Rubber Feet
System Requirements Microsoft® Windows® for running Utility
Warranty 5 years
Manufacturer TP-Link

TAGS: PoE plus
Net Price: 44,60 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
