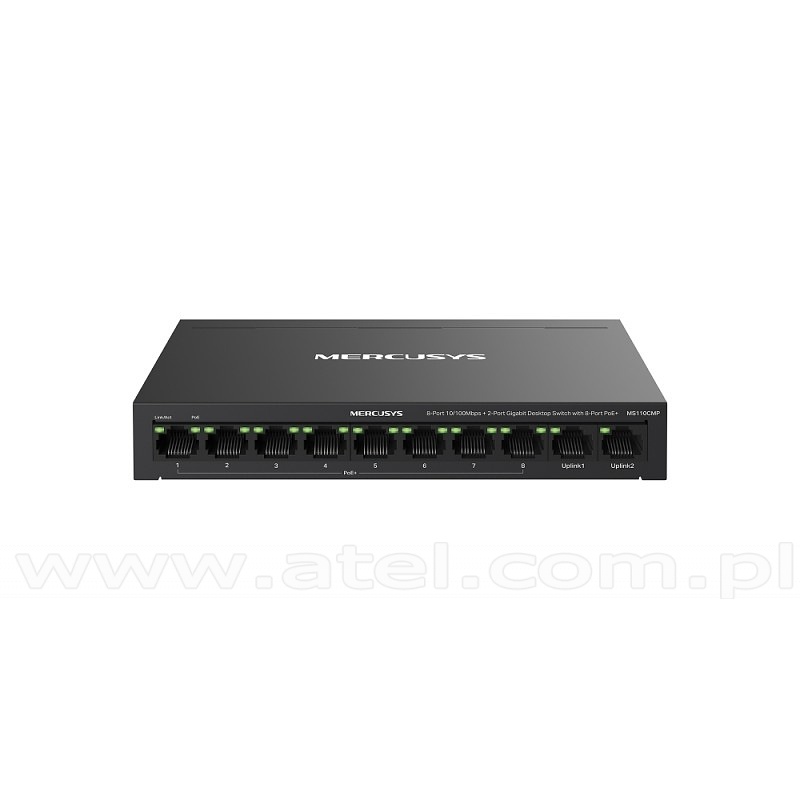

SwitchesTP-LINKMS110CMP

Unmanaged switch, 8x 10/100 RJ-45, 2x gigabitowe porty, PoE+, desktop (TP-Link Mercusys MS110CMP)

  • 10 Ports: 8× 10/100 Mbps PoE+ Ports + 2× Gigabit non-PoE Ports
  • Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
  • High Power PoE+: Support PoE Power up to 30 W for each PoE port and 115 W for all PoE ports*
  • 2× Uplink Ports: MS110CMP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
  • Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**
  • Isolation Mode: One click to divide traffic for specific ports for stability and security
  • Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
  • Plug and Play: Simple to use and saves time and effort
  • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
  • Durable Metal Casing: Allows for efficient heat dissipation and long network life
Standards IEEE 802.3/x
Copper ports 8x 10/100 Mbps RJ-45 (PoE),
2× 1000 Mbps RJ45 Ports
PoE Ports RJ45,
Standard Compliant with 802.3 af/at Powered Devices,
PoE Ports Port 1- Port 8
PoE Power Budget 115 W
Auto MDI/MDI-X yes
Auto-negotiation (Nway) yes
Switching architecture / speed Store and Forward
Mac Address Table 2K
Jumbo Frame 2 KB
Dimensions 171 × 98 × 27 mm (6,7 × 3,9 × 1,1 in)
Operating temperature 0°C ÷ 40°C
Storage Temperature -40°C ÷ 70°C
Operating humidity 10% ÷ 90%,
non-condensing
External Power Supply External Power Adapter (Output 53,5V DC / 1,31A)
Max Power Consumption 3.79W(220 V / 50 Hz,
no PD connected),
130.49W(220 V / 50 Hz,
with 115W PD connected

« previous product  |  next product »     » show on list«» Switches «
Net Price: 29,10 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
