#09270
SwitchesTP-LINKTL-SX3206HPP

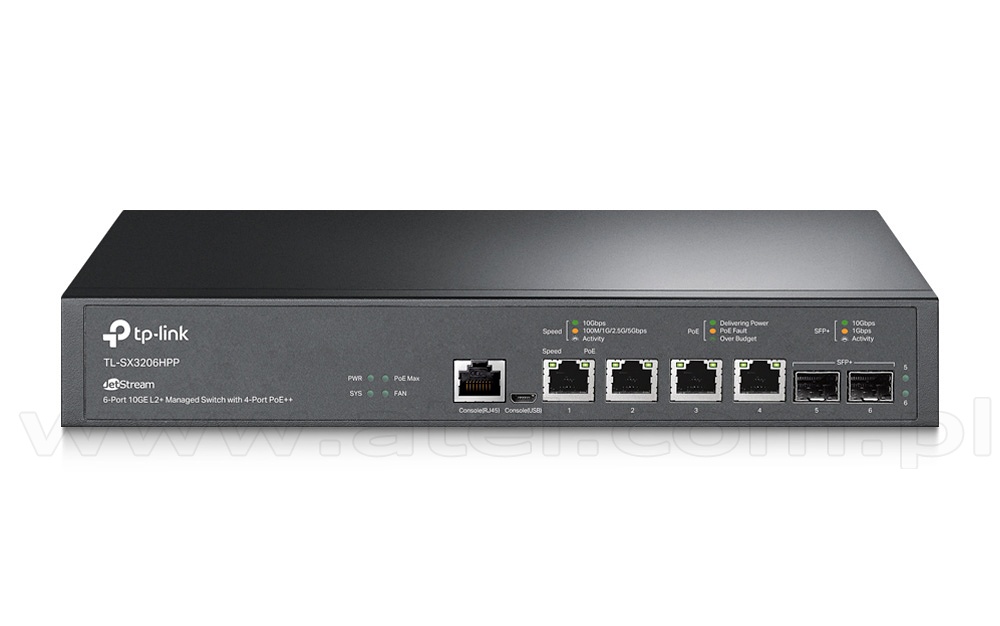

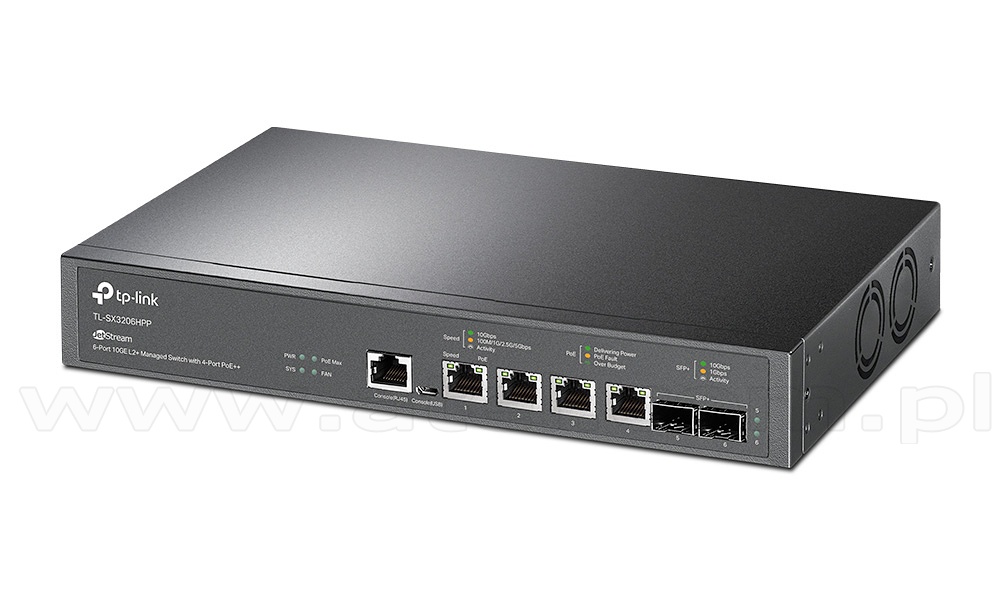

Managed switch, 6x 10G RJ-45, 2x SFP+, PoE++, 11.6", 19" Rack-mounting Bracket (TP-Link TL-SX3206HPP)

  • Full 10G Lightning-Fast Connection: Offers high-bandwidth connectivity with lightning-fast 4 10 Gbps RJ45 ports and 2 10 Gbps SFP+ slots.
  • PoE++ Output with 200 W Power Budget†: Four 802.3af/at/bt PoE++ 10G ports with up to 60 W PoE output on each port make it ideal for the deployment of Omada WiFi 6 and WiFi 6E APs.
  • Abundant L2 and L2+ Features: Supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping.
  • Robust Security Strategies: Supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
Ports 4 100/1000/2500/5000/10000 Mbps RJ45 Ports,
2 10G SFP+ Slots,
1 RJ45 Console Port,
1 Micro-USB Console Port
PoE Ports (RJ45) Standard 802.3bt/at/af compliant,
PoE+ Ports 4 Ports,
up to 60 W per port,
Power Budget 200 W
Auto MDI/MDI-X yes
Auto-negotiation (Nway) yes
Fan Quantity 2
Switching Capacity 120 Gbps
Packet Forwarding Rate 89.28 Mpps
MAC Address Table 32 K
Jumbo Frame 9 KB
Software features
Quality of Service 802.1p CoS/DSCP priority,
8 priority queues,
Priority Schedule Mode,
SP (Strict Priority),
WRR (Weighted Round Robin),
Queue Weight Config,
Bandwidth Control,
Port/Flow-based Rating Limit,
Smoother Performance,
Storm Control,
Multiple Control Modes(kbps/ratio),
Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features DHCP Relay,
DHCP VLAN Relay,
DHCP L2 Relay,
Link Aggregation,
Static link aggregation,
802.3ad LACP,
Up to 8 aggregation groups and up to 8 ports per group,
Spanning Tree Protocol,
802.1D STP,
802.1w RSTP,
802.1s MSTP,
STP Security TC Protect,
BPDU Filter/Protect,
Root Protect,
Loopback Detection,
Flow Control,
802.3x Flow Control,
Mirroring,
Port Mirroring,
CPU Mirroring,
One-to-One,
Many-to-One,
Flow-Based,
Ingress/Egress/Both,
Device Link Detect Protocol (DLDP),
802.1ab LLDP/ LLDP-MED
L2 Multicast 511 IPv4,
IPv6 shared multicast groups,
IGMP Snooping,
IGMP v1/v2/v3 Snooping,
Fast Leave,
IGMP Snooping Querier,
Static Group Config,
Multicast VLAN Registration (MVR),
Multicast Filtering,
MLD Snooping,
MLD v1/v2 Snooping,
Fast Leave,
MLD Snooping Querier,
Static Group Config,
Limited IP Multicast (256 profiles and 16 entries per profile)
IPv6 Support IPv6 Dual IPv4/IPv6,
Multicast Listener Discovery (MLD) Snooping,
IPv6 neighbor discovery (ND),
Path maximum transmission unit (MTU) discovery,
Internet Control Message Protocol (ICMP) version 6,
TCPv6/UDPv6,
IPv6 applications,
DHCPv6 Client,
Ping6,
Tracert6,
Telnet (v6),
IPv6 SNMP,
IPv6 SSH,
IPv6 SSL,
Http/Https,
IPv6 TFTP
VLAN VLAN Group,
Max. 4K VLAN Groups,
802.1Q tag VLAN,
MAC VLAN 12 Entries,
Protocol VLAN,
GVRP,
Voice VLAN
Access Control List Support up to 230 entries,
Time-Range,
Time Slice,
Week Time-Range,
Absolute Time-Range,
Holiday,
Time-based ACL,
MAC ACL,
Source MAC,
Destination MAC,
VLAN ID,
User Priority,
Ether Type,
IP ACL,
Source IP,
Destination IP,
IP Protocol,
TCP Flag,
TCP/UDP Source Port,
TCP/UDP Destination Port,
DSCP/IP TOS,
IPv6 ACL,
Combined ACL,
Rule Operation,
Permit/Deny,
Policy Action,
Mirror,
Rate Limit,
Redirect,
QoS Remark,
ACL Rules Binding,
Port Binding,
VLAN Binding,
Actions for flows,
Mirror (to supported interface),
Redirect (to supported interface),
Rate Limit,
QoS Remark
Security AAA,
802.1X,
Port-based authentication,
MAC (Host) based authentication,
Authentication Method includes PAP/EAP-MD5,
MAB,
Guest VLAN,
Support Radius authentication and accountability,
IP/IPv6-MAC Binding,
512 Binding Entries,
DHCP Snooping,
DHCPv6 Snooping,
ARP Inspection,
ND Detection,
IP Source Guard,
253 Entries,
Source IP+Source MAC,
IPv6 Source Guard,
183 Entries,
Source IPv6 Address+Source MAC,
DoS Defend,
Static/Dynamic/Permanent Port Security,
Up to 64 MAC addresses per port,
Broadcast/Multicast/Unicast Storm Control,
kbps/ratio control mode,
Port Isolation,
Secure web management through HTTPS with SSLv3/TLS 1.2,
Secure Command Line Interface (CLI) management with SSHv1/SSHv2,
IP/Port/MAC-based access control
Advanced Features Automatic Device Discovery,
Batch Configuration,
Batch Firmware Upgrading,
Intelligent Network Monitoring,
Abnormal Event Warnings,
Unified Configuration,
Reboot Schedule
MIBs MIB II (RFC1213),
Bridge MIB (RFC1493),
P/Q-Bridge MIB (RFC2674),
Radius Accounting Client MIB (RFC2620),
Radius Authentication Client MIB (RFC2618),
Remote Ping,
Traceroute MIB (RFC2925),
Support TP-Link private MIBs,
RMON MIB(RFC1757,
rmon 1,2,3,9)
Management
Omada App Yes,
through,
Omada Cloud-Based Controller,
OC300,
OC200,
Omada Software Controller
Centralized Management Omada Cloud-Based Controller,
Omada Hardware Controller (OC300),
Omada Hardware Controller (OC200),
Omada Software Controller
Cloud Access Yes,
through,
Omada Cloud-Based Controller,
OC300,
OC200,
Omada Software Controller
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller
Management Features Web-based GUI,
Command Line Interface (CLI) through telnet,
SNMPv1/v2c/v3,
SNMP Trap/Inform,
RMON (1,2,3,9 groups),
SDM Template,
DHCP/BOOTP Client,
Dual Image,
Dual Configuration,
CPU Monitoring,
Cable Diagnostics,
EEE,
SNTP,
System Log
Housing / case type 11.6",
metal
Dimensions 29418044 mm
Operating temperature 0C 50C
Operating humidity 10% 90%,
non-condensing
Power 100-240 V AC~50/60 Hz
Max Power Consumption 27.29 W (110V/60Hz) (no PD connected),
244.90 W (110V/60Hz) (with 200 W PD connected)
Max Heat Dissipation 93.12 BTU/h (110 V/60 Hz) (no PD connected),
835.67 BTU/h (110 V/60 Hz) (with 200 W PD connected)
Certificates CE,
FCC ,RoHS
Warranty period 5 years
Manufacturer TP-Link

« previous product  |  next product »     » show on list« » Switches «
Net Price: 523,00 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
[+]add item to comparison | show comparison [0]
