#09232
SwitchesTP-LINKTL-SG3452XP

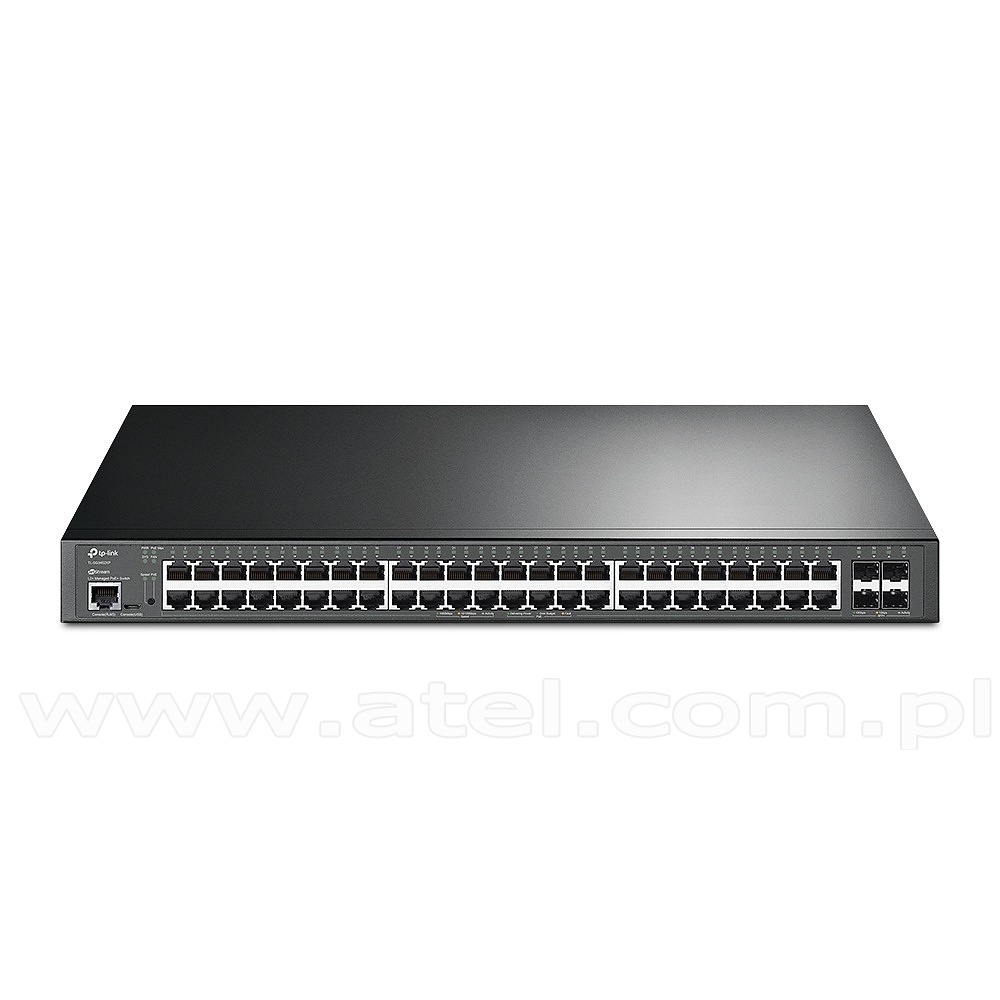

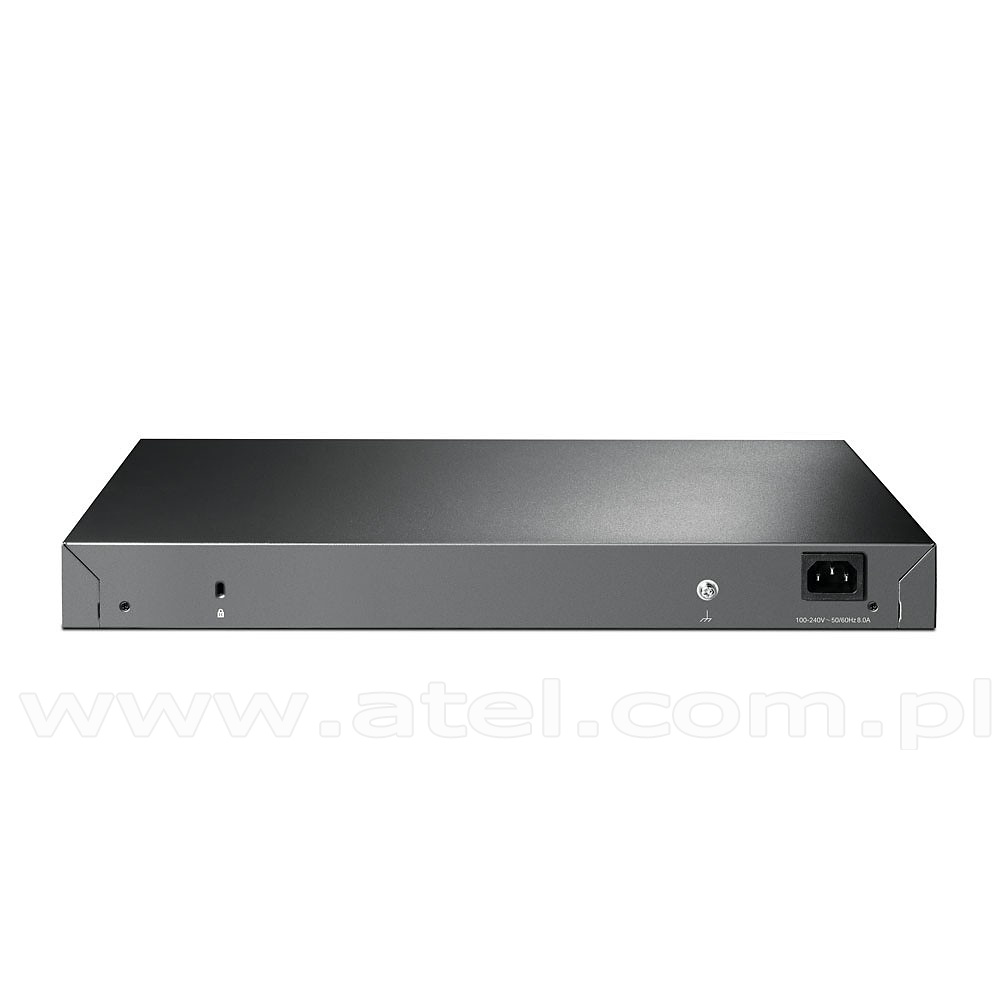

Managed switch, 48x 10/100/1000 RJ-45, 4 slide-in 10G SFP+ slot, PoE+, 19" (TP-Link TL-SG3452XP)

  • 10G Lightning-Fast Uplink: Enjoy high-bandwidth connectivity and non-blocking switching capacity with four 10 Gbps SFP+ slots.
  • PoE+ Output with 500 W Power Budget: Design your optimal network layout with forty-eight 802.3af/at PoE+ gigabit ports.*
  • Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
  • Abundant L2 and L2+ Features: It supports a complete lineup of L2 and L2+ features, including Static Routing, enterprise-level QoS, and IGMP Snooping.
  • Robust Security Strategies: Helps protect LAN area investment with integrated IP-MAC-Port Binding, ACL, Port Security, and 802.1X Authentication.
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
Standards IEEE 802.3 10Base-T,
IEEE802.3u 100Base-TX
Copper ports 48x 10/100/1000 Mbps RJ-45
Free slots 4x SFP+ 10G
Additional ports 1× RJ45 Console Port,
1× Micro-USB Console Port
Fan Quantity 3
Porty PoE+ (RJ45)
Standard 802.3at/af compliant
PoE+ Ports 48 Ports,
up to 30 W per port
Power Budget 500 W
Max Power Consumption 49.19 W (110V/60Hz) ( no PD device connected),
635.7 W (110V/60Hz) ( with 500 W PD device connected)
Max Heat Dissipation 167.85 BTU/hr (110 V/60 Hz) (no PD connected),
2169.2 BTU/hr (110 V/60 Hz) (with 500 W PD connected)
Performance
Switching Capacity 176 Gbps
Packet Forwarding Rate 130.9 Mpps
MAC Address Table 16 K
Packet Buffer Memory 12 Mbit
Jumbo Frame 9 KB
Software features
Quality of Service Support 802.1p CoS/DSCP priority,
Support 4 priority queues,
Queue scheduling- SP,
WRR,
SP+WRR,
Port/Flow- based Rate Limiting
L2 and L2+ Features DHCP Relay,
DHCP VLAN Relay,
DHCP L2 Relay,
Link Aggregation,
Static link aggregation,
802.3ad LACP,
Up to 8 aggregation groups and up to 8 ports per group,
Spanning Tree Protocol,
802.1D STP,
802.1w RSTP,
802.1s MSTP,
STP Security TC Protect,
BPDU Filter/Protect,
Root Protect,
Loopback Detection,
Flow Control,
802.3x Flow Control,
Mirroring,
Port Mirroring,
CPU Mirroring,
One-to-One,
Many-to-One,
Flow-Based,
Ingress/Egress/Both,
Device Link Detect Protocol (DLDP),
802.1ab LLDP/ LLDP-MED
L2 Multicast 511 IPv4,
IPv6 shared multicast groups,
IGMP Snooping,
IGMP v1/v2/v3 Snooping,
Fast Leave,
IGMP Snooping Querier,
Static Group Config,
Multicast VLAN Registration (MVR),
Multicast Filtering,
MLD Snooping,
MLD v1/v2 Snooping,
Fast Leave,
MLD Snooping Querier,
Static Group Config,
Limited IP Multicast (256 profiles and 16 entries per profile)
IPv6 Support IPv6 Dual IPv4/IPv6,
Multicast Listener Discovery (MLD) Snooping,
IPv6 neighbor discovery (ND),
Path maximum transmission unit (MTU) discovery,
Internet Control Message Protocol (ICMP) version 6,
TCPv6/UDPv6,
IPv6 applications,
DHCPv6 Client,
Ping6,
Tracert6,
Telnet (v6),
IPv6 SNMP,
IPv6 SSH,
IPv6 SSL,
Http/Https,
IPv6 TFTP
VLAN VLAN Group,
Max. 4K VLAN Groups,
802.1Q tag VLAN,
MAC VLAN,
Protocol VLAN,
GVRP,
Voice VLAN
Security AAA,
802.1X,
Port based authentication,
MAC (Host) based authentication,
Authentication Method includes PAP/EAP-MD5,
MAB,
Guest VLAN,
Support Radius authentication and accountability,
IP/IPv6-MAC Binding,
512 Binding Entries,
DHCP Snooping,
DHCPv6 Snooping,
ARP Inspection,
ND Detection,
IP Source Guard,
253 Entries,
Source IP+Source MAC,
IPv6 Source Guard,
183 Entries,
Source IPv6 Address+Source MAC,
DoS Defend,
Static/Dynamic/Permanent Port Security,
Up to 64 MAC addresses per port,
Broadcast/Multicast/Unicast Storm Control,
kbps/ratio control mode,
Port Isolation,
Secure web management through HTTPS with SSLv3/TLS 1.2,
Secure Command Line Interface (CLI) management with SSHv1/SSHv2,
IP/Port/MAC based access control
Management
Omada App Yes
Centralized Management Omada Cloud-Based Controller,
Omada Hardware Controller (OC300),
Omada Hardware Controller (OC200),
Omada Software Controller
Cloud Access Yes (Through OC300,
OC200,
Omada Cloud-Based Controller,
or Omada Software Controller)
Management Features Web-based GUI,
Command Line Interface (CLI) through telnet,
SNMPv1/v2c/v3,
SNMP Trap/Inform,
RMON (1,2,3,9 groups),
SDM Template,
DHCP/BOOTP Client,
Dual Image,
Dual Configuration,
CPU Monitoring,
Cable Diagnostics,
EEE,
SNTP,
System Log
Housing / case type Rack Mountable
Dimensions 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Operating temperature 0°C ÷ 45°C
Operating humidity 10% ÷ 90%,
non-condensing
Power internal,
100~230VAC 50/60Hz
Certificates CE,
FCC
Warranty period 5 years
Manufacturer TP-Link
