#06276
SwitchesTP-LINK#06276

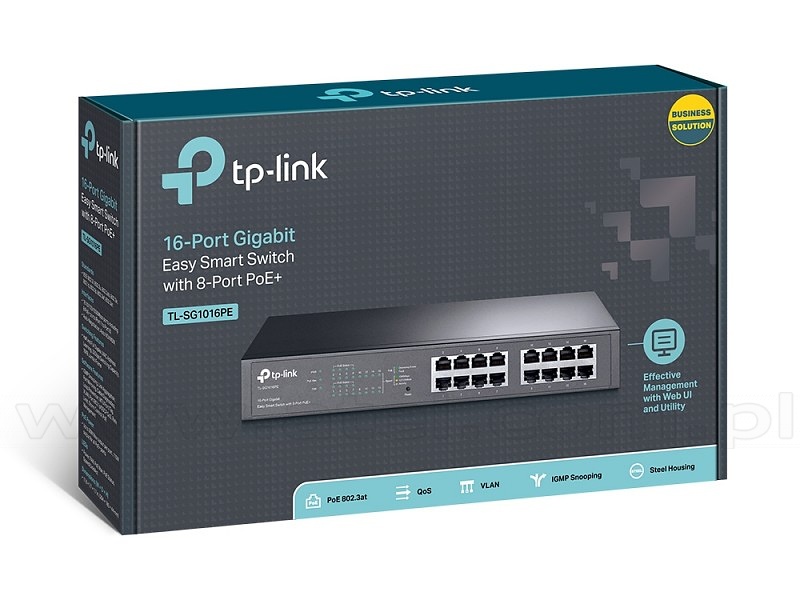

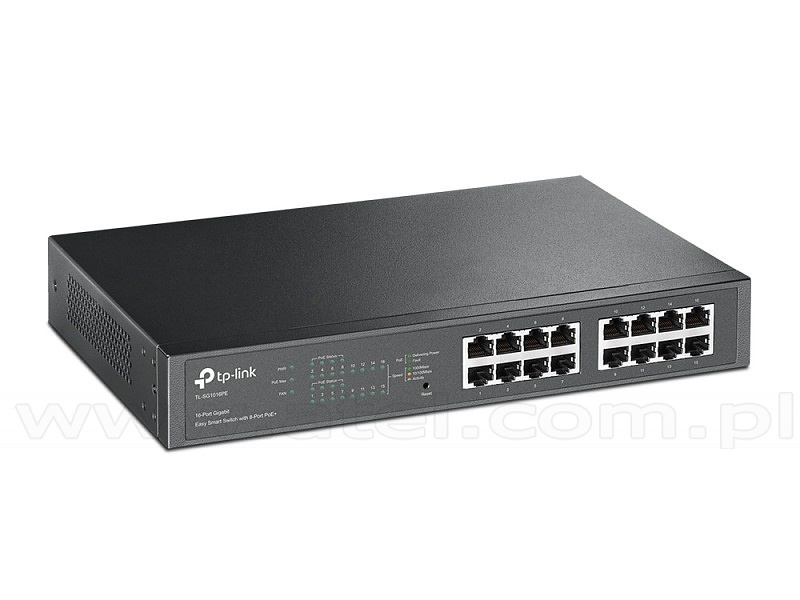

Smart switch, 16x 10/100/1000 RJ-45, PoE+, 19" Rack-mounting Bracket (TP-Link TL-SF1016PE)

  • 16 10/100/1000Mbps RJ45 ports
  • Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
  • With a total PoE power budget of 110W, up to 30W per port
  • Works with IEEE 802.3af/at compliant devices, expanding home and office networks
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and management utility simplify configuration
Standards IEEE 802.3,
IEEE 802.3u,
IEEE 802.3ab,
IEEE 802.3x,
IEEE 802.1q,
IEEE 802.1p
Copper ports 16x 10/100/1000 Mbps RJ-45
Fan Quantity 1
PoE Ports Standard 802.3 at compliant,
PoE Ports Port 1- Port 8,
PoE Power Budget 110W,
Power Supply 53W
Performance:
Switching Capacity 32Gbps
Packet Forwarding Rate 23.81Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1Mb
Jumbo Frame 9KB
Software features:
Quality of Service Support Port-based/802.1p/DSCP priority,
Support 4 priority queues,
Rate Limit,
Storm Control
L2 Features IGMP Snooping V1/V2/V3,
Static Link Aggregation,
Port Mirroring,
Cable Diagnostics,
Loop Prevention
VLAN Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs),
MTU/Port/Tag VLAN
Management Web-based GUI,
Easy Smart Configuration Utility
Transmission Method Store-And-Forward
Dimensions 11.6x7.1x1.7 in. (294x180x44 mm)
Operating Temperature 0℃~40℃ (32℉~104℉)
Storage Temperature -40℃~70℃ (-40℉~158℉)
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing
Power 100-240VAC,
50/60Hz
Power Consumption 14.72W (110V/60Hz with no PD connected),
131.42W (110V/60Hz with 110W PD connected)
Max Heat Dissipation 50.22 BTU/h (with no PD connected),
448.41 BTU/h (with 110W PD connected)
Certificates CE,
FCC,
RoHS
Warranty 5 years
Manufacturer TP-Link

« previous product  |  next product »     » show on list«» Switches «
TAGS: PoE plus
Net Price: 128,00 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
