#09046
GPON / EPONTP-LINKArcher XR500v

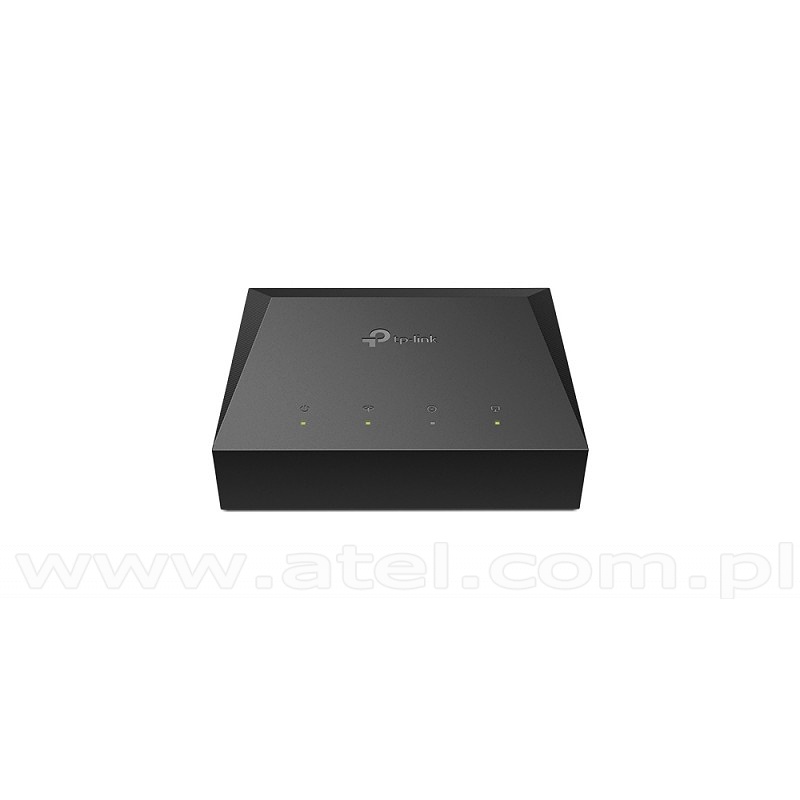

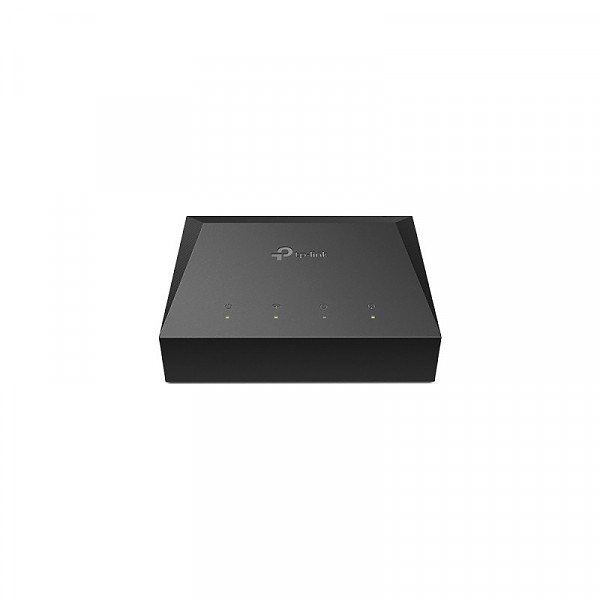

1200Mbps Wireless Gigabit GPON Router Dual-band AC1200 (TP-Link Archer XR500v)

HARDWARE FEATURES:
Standards and Protocols IEEE 802.11ac/n/a 5GHz,
IEEE 802.11b/g/n 2.4GHz
Interface 4 10/100/1000Mbps LAN Ports,
2 RJ-11 (VoIP/GSM) Ports,
1 GPON SC/UPC Port,
1 USB 2.0 Port
Dimensions (W X D X H) 217,7x155,5x37mm
Antenna 2 Detachable Antennas
WIRELESS FEATURES:
Frequency 2.4GHz & 5GHz
Signal Rate 5GHz Up to 867Mbps,
2.4GHz Up to 300Mbps
Wireless Functions Enable/Disable Wireless Radio,
WMM,
Wireless Statistics
Wireless Security 64/128-bit WEP,
WPA/WPA2,
WPA-PSK/WPA2-PSK encryption
SOFTWARE FEATURES:
WAN Type Dynamic IP/Static IP/PPPoE/,
PPTP (Dual Access)/L2TP (Dual Access)/BigPond
DHCP Server,
Client,
DHCP Client List,
Address Reservation,
DHCP relay
Quality of Service WMM,
Bandwidth Control
Port Forwarding Virtual Server, Port Triggering,
UPnP,
DMZ
Dynamic DNS DynDns,
Comexe,
NO-IP
VPN Pass-Through PPTP,
L2TP,
IPSec Passthrough
Access Control Parental Control,
Local Management Control,
Host List,
Access Schedule,
Rule Management
Firewall Security DoS,
SPI Firewall,
IP Address Filter/MAC Address Filter/Domain Filter,
IP and MAC Address Binding
USB Sharing Support Samba(Storage)/FTP Server/Media Server/Printer Server
Management Access Control,
Local Management,
Remote Management
Guest Network 2.4GHz guest network 1, 5GHz guest network 2
OTHERS:
Certification CE,
FCC, IC,
RoHS
System Requirements Microsoft® Windows® XP,
Vista™,
Windows 7,8,10,
MAC® OS,
NetWare®,
UNIX® or Linux.
Environment Operating Temperature 0~40 (32~104),
Storage Temperature -40~70 (-40~158),
Operating Humidity 10%~90% non-condensing,
Storage Humidity 5%~90% non-condensing
Warranty 2 years limited warranty. Advanced replacement service is available.
Manufacturer TP-Link

« previous product  |  next product »     »show on list«
Net Price: 73,20 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
