#04695
NEW
GPON / EPONUBIQUITIUF-Nano

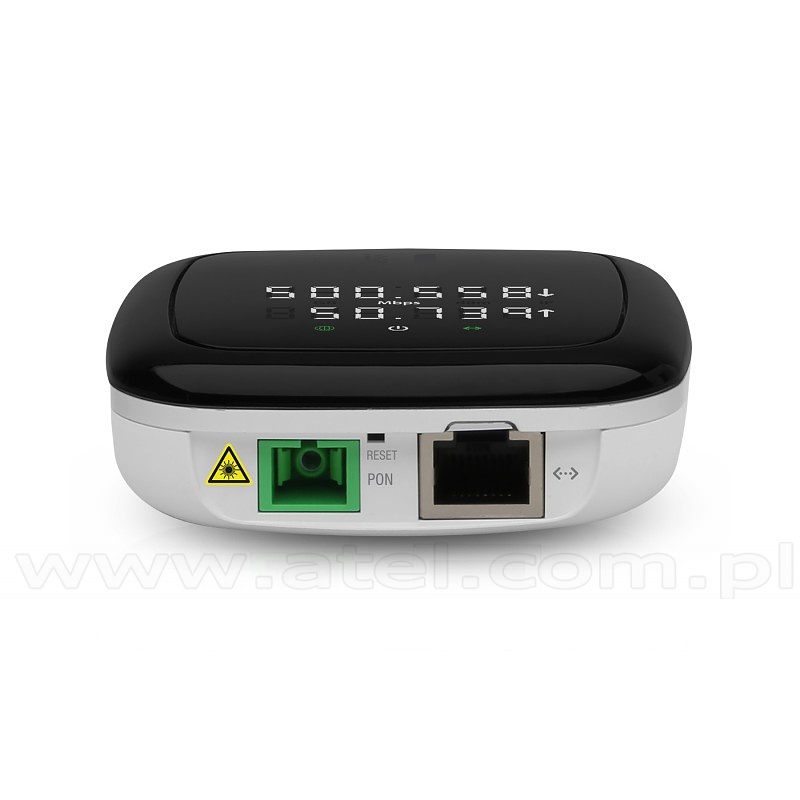

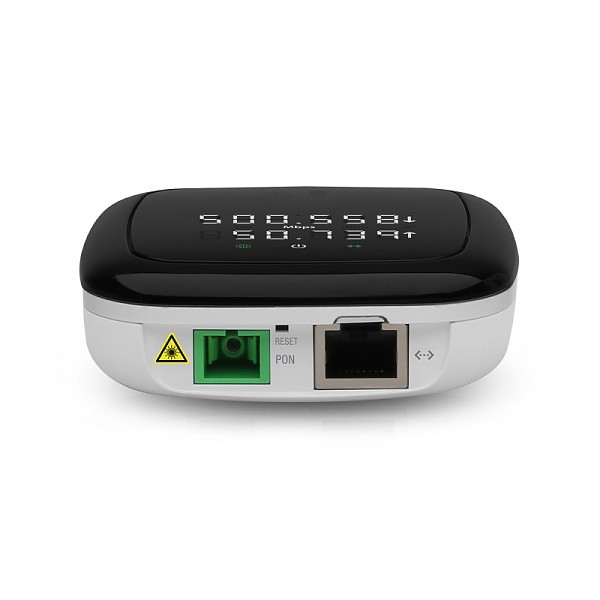

UFiber Nano G GPON, 1-Port Gigabit (Ubiquiti UF-Nano)

Processor Specs MIPS32,
240 MHz
Memory Information 128 MB DDR3
Buttons 1*Reset,
1*Display Information

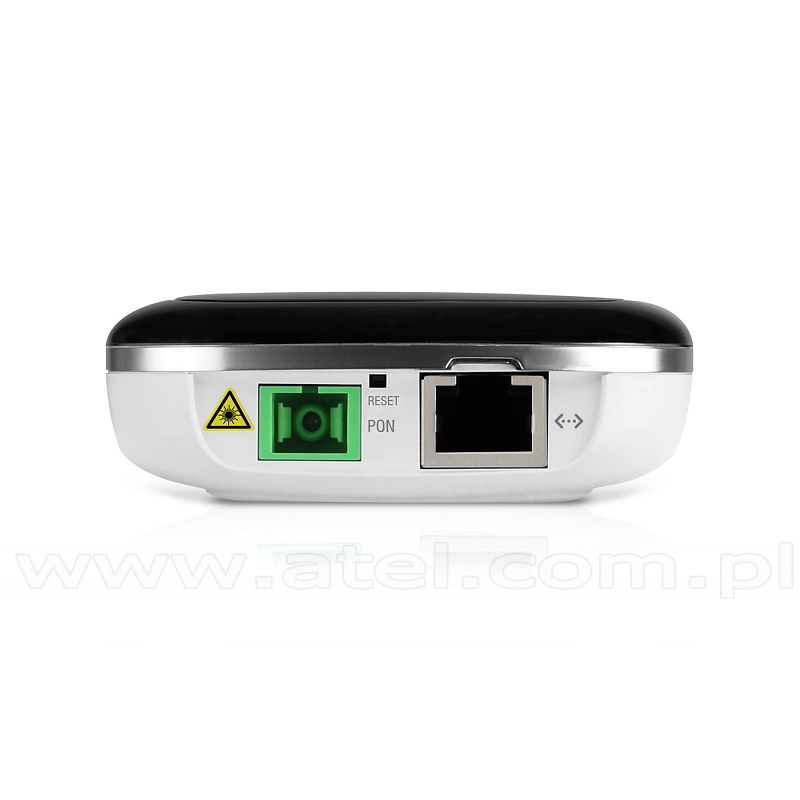

Networking Interfaces 1*SC/APC,
GPON WAN,
1*Gigabit RJ45,
Ethernet LAN
Networking Interface Speeds
GPON WAN, ITU G.984 2.488 Gbps Downstream,
1.244 Gbps Upstream
GbE LAN 10/100/1000 Mbps
Management Interface In-Band Ethernet/PON
Normal Optical Power Range TX (Class B+) 1.5 to 5 dBm,
RX -28 to -8 dBm
Power Method 24V Passive PoE (Pins +4, 5; -7, 8),
Dying Gasp Support
Power Supply PoE Adapter 24V,
0.3A (Included)
Max. Power Consumption 7W
Supported Voltage Range 20 to 28V
Dimensions 77 x 77 x 28 mm (3.03 x 3.03 x 1.1")
Weight 110 g (3.88 oz)
Temperature Operation -10 45C
Operating Humidity 5 to 95% Noncondensing
Certifications CE,
FCC,
IC

« previous product  |  next product »     »show on list«
Net Price: 65,90 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
