#04669
SwitchesTP-LINKTL-SG108PE

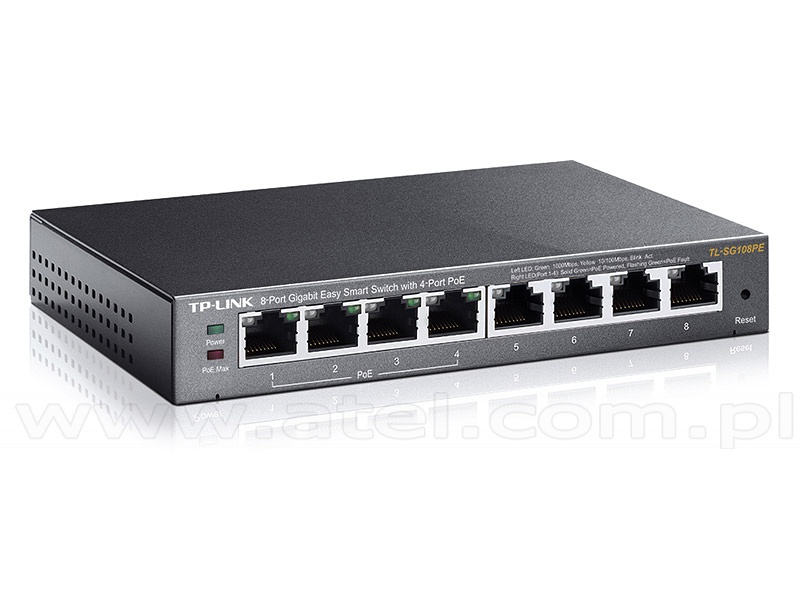

Smart switch, 8x 10/100/1000 RJ-45, PoE, desktop (TP-Link TL-SG108PE)

  • 8 10/100/1000Mbps RJ45 ports
  • With 4 PoE ports, data and power can be transferred on one single cable
  • Provides network monitoring, traffic prioritization and VLAN features
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and Easy Smart Configuration Utility simplify configuration
Standards IEEE 802.3i,
IEEE 802.3u,
IEEE 802.3ab,
IEEE 802.3af,
IEEE 802.3x,
IEEE 802.1q,
IEEE 802.1p
Copper ports 8x 10/100/1000 Mbps RJ-45
Auto MDI/MDI-X yes
Auto-negotiation (Nway) yes
Standard 802.3 af compliant
PoE Ports Port 1- Port 4
PoE Power Budget 55W
Switching architecture / speed Store and Forward
Packet flow control Flow-Control,
Back-Pressure
Switching Capacity 16Gbps
MAC Address Table 4K
Packet Buffer Memory 1.5Mb
Packet Forwarding Rate 11.9Mpps
Jumbo Frame 16KB
Quality of Service Support Port Based/802.1p Based priority,
Support 4 priority queues,
Rate Limit,
Storm Control
L2 Features IGMP Snooping,
Link Aggregation,
Port Mirroring,
Cable Diagnostics,
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs),
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward
Housing / case type desktop,
metal
Dimensions 158x101x25 mm (6.2x4.0x1.0 cala)
Operating temperature 0°C ÷ 40°C
Operating humidity 10% ÷ 90%,
non-condensing
Power External Power Adapter(Output 48VDC / 1.25A)
Power Consumption Maximum (PoE on) 65.2W (220V/50Hz),
Maximum (PoE off) 5.2W (220V/50Hz)
Certificates CE,
FCC,
RoHS
Package Contents TL-SG108PE,
Power Adapter,
Installation Guide,
Resource CD,
Rubber Feet
System Requirements Microsoft® Windows® for running Utility
Warranty 5 years
Manufacturer TP-Link

« previous product  |  next product »     » show on list«» Switches «
TAGS: PoE
Net Price: 55,50 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
