Standards | IEEE 802.3/i/u/ab/ad/x/d/s/w/q/p |
---|---|

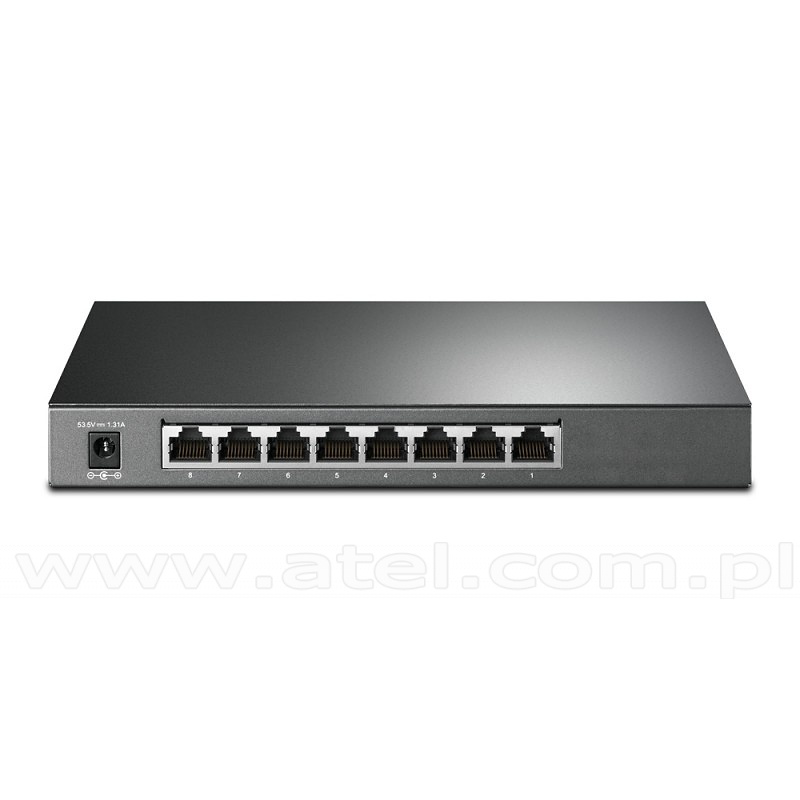

Copper ports | 8x 10/100/1000 Mbps RJ-45 (Auto Negotiation/Auto MDI/MDIX) |
PoE Ports (RJ45) | Standard 802.3af/at compliant, PoE Ports 4 Ports, Power Supply 62 W |
Performance | |
Bandwidth/Backplane | 16Gbps |
MAC Address Table | 8k |
Packet Buffer Memory | 4.1 Mbit |
Software features | |
Quality of Service | Support 802.1p CoS/DSCP priority, Support 4 priority queues, Queue scheduling- SP, WRR, SP+WRR, Port/Flow- based Rate Limiting |
L2 Features | IGMP Snooping V1/V2/V3, 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group), Spanning Tree STP/RSTP/MSTP, LLDP, LLDP-Med, BPDU Filtering/Guard, TC/Root Protect, Loop back detection, 802.3x Flow Control, VLAN Voice |
VLAN | Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
Security | SSH v1/v2, SSL v2/v3/TLSv1, Port Security, Broadcast/Multicast/Unknown-unicast Storm Control |
Management | |
Omada App | Yes |
Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
Management Features | Web-based GUI, Command Line Interface (CLI) through telnet, SNMPv1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9 groups), SDM Template, DHCP/BOOTP Client, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log |
Dimensions | 8.2x4.9x1.0 in. (209x126x26mm) |
Operating temperature | 0°C ÷ 40°C |
Operating humidity | 10% ÷ 90%, non-condensing |
Power | External Power Adapter (Output 53.5 VDC/ 1.31 A) |
Power Consumption | 7.9W (220 V/50 Hz), 79.2 W (220 V/50 Hz) (with 62 W PD connected) |
Fan Quantity | Fanless |
Certificates | CE, FCC, RoHS |
Warranty period | 5 years |
Manufacturer | TP-Link |
Net Price: 82,70 EUR Unit: pcs
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
