#06271
Switches › TP-LINK › TL-SG116E

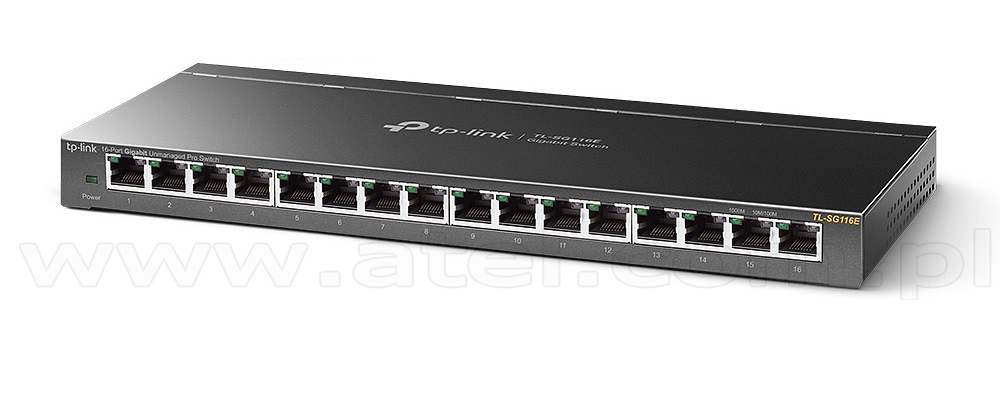

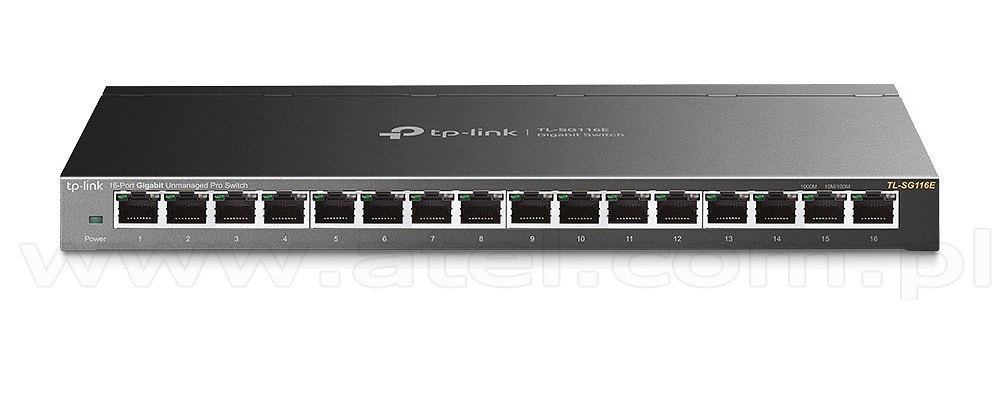

Unmanaged switch, 16x 10/100/1000 RJ-45, desktop (TP-Link TL-SG116E)

  • 16 10/100/1000Mbps RJ45 ports
  • Plug and play, with no configuration required
  • Durable metal casing of superior quality and professional appearance
  • Intelligent management via a web user interface and downloadable utility
  • Green technology reduces power consumption
Standards IEEE 802.3i/802.3u/ 802.3ab/ 802.3x/ 802.1p/ 802.1q
Copper ports 16x 10/100/1000 Mbps RJ-45
Auto MDI/MDI-X yes
Auto-negotiation (Nway) yes
Performance:
Switching Capacity 32Gbps
Packet Forwarding Rate 23.81Mpps
MAC Address Table 8K
Packet Buffer Memory 4.1Mb
Jumbo Frame 10KB
Software features:
Quality of Service Support Port-based/802.1p/DSCP priority,
Support 4 priority queues,
Rate Limit,
Storm Control
L2 Features IGMP Snooping V1/V2/V3,
Static Link Aggregation,
Port Mirroring,
Cable Diagnostics,
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs),
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward
Dimensions 11.26 x 4.4 x 1.0 in. (286x111.7x25.4 mm)
Operating temperature 0°C ÷ 40°C
Operating humidity 10% ÷ 90%,
non-condensing
Power External Power Adapter(Output 9VDC/0.6A)
Max Power Consumption 9.27W(220V/50Hz)
Max Heat Dissipation 31,36BTU/h
Certificates CE,
FCC,
RoHS
Warranty 5 years
Manufacturer TP-Link
Print to PDF
Technical Support
« previous product  |  next product »     » show on list«» Switches «
Net Price: 56,70 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
[+]add item to comparison | show comparison [0]
