MENU#09193

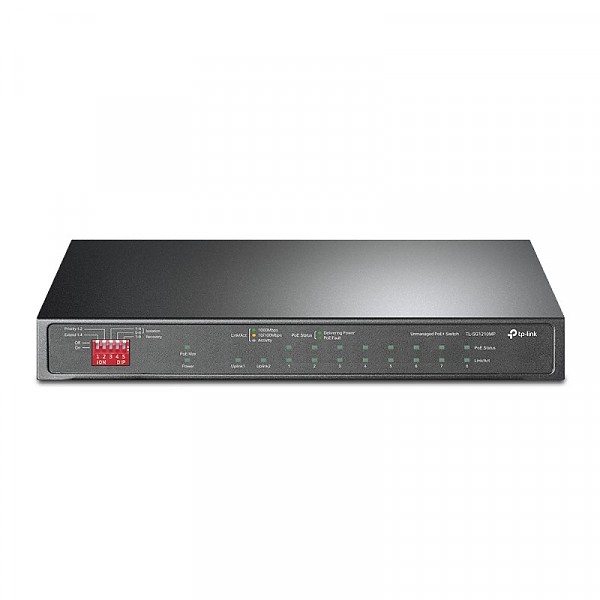

Unmanaged switch, 9x 10/100/1000 RJ-45, 1 SFP slots, PoE+, desktop (TP-Link TL-SG1210MP)

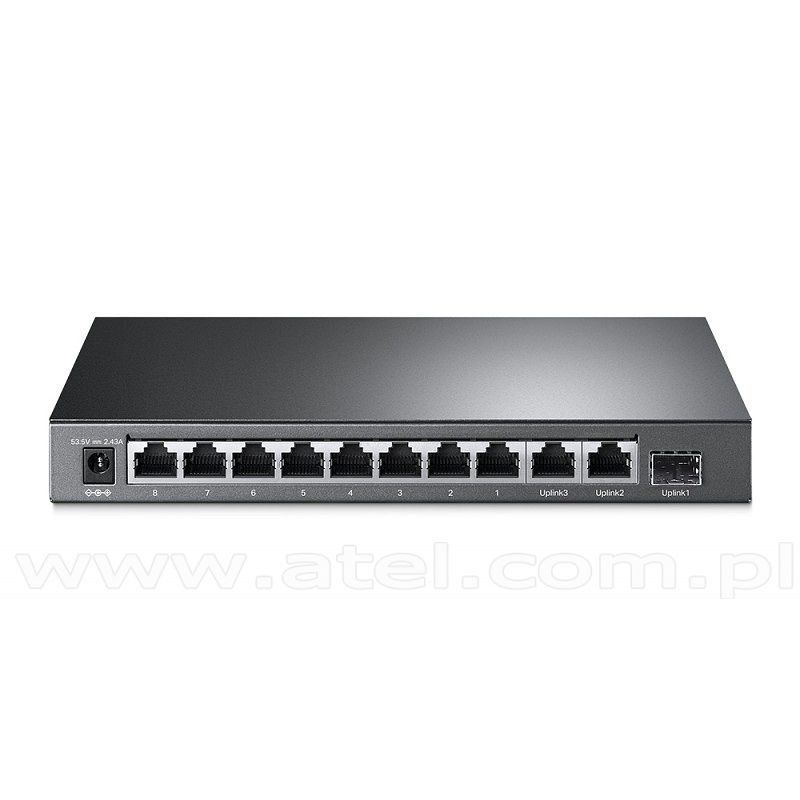

- 9× gigabit RJ45 ports, and 1× gigabit combo SFP/RJ45 Port
- 8× PoE+ ports transfer data and power via a single cable with a total power budget of 123 W*
- Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
- Up to 250 m data and power transmission range under Extend Mode**
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.
- Plug and play with no configuration required
- Fanless design reduces power consumption and works silently in its location
| Standards | IEEE 802.3/i/u/ab/z/ad/x/af/d/s/w/q/x/p |
|---|---|
| Copper ports | 9x 10/100/1000 Mbps RJ-45 (Auto Negotiation/Auto MDI/MDIX) PoE+, 1x 10/100/1000 Mbps RJ-45 |
| Free slots | 1x 1000 Mbps SFP |
| PoE Ports (RJ45) | |
| Standard | 802.3af/at compliant |
| PoE Ports | 8 Ports |
| Power Supply | 123W |
| Performance | |
| Packet Forwarding Rate | 14.88 Mpps |
| Bandwidth/Backplane | 20Gbps |
| MAC Address Table | 4k |
| Jumbo Frame | 16 KB |
| Software features | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | Compatible With IEEE 802.3af/at Compliant PDs, Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission), Priority Mode Button (Ports 1–2), Isolation Mode Button (Ports 1–4 / 5-8), PoE Auto Recovery (Ports 1-8), Mac Address Auto-Learning and Auto-Aging, IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode |
| Housing / case type | 19", metal |
| Dimensions | 209 x 126 x 26 mm |
| Operating temperature | 0°C ÷ 40°C |
| Operating humidity | 10% ÷ 90%, non-condensing |
| Power | 100~240VAC, 50/60Hz, External Power Adapter(Output 53.5V DC / 2.43A) |
| Power Consumption | Maximum (PoE on) 141.4W, Maximum (PoE off) 7.93W |
| Fan Quantity | 0 |
| Certificates | CE, FCC, RoHS |
| Manufacturer | TP-Link |
Net Price: 103,00 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
