#09131
NEW
SwitchesTP-LINKTL-SF1008LP

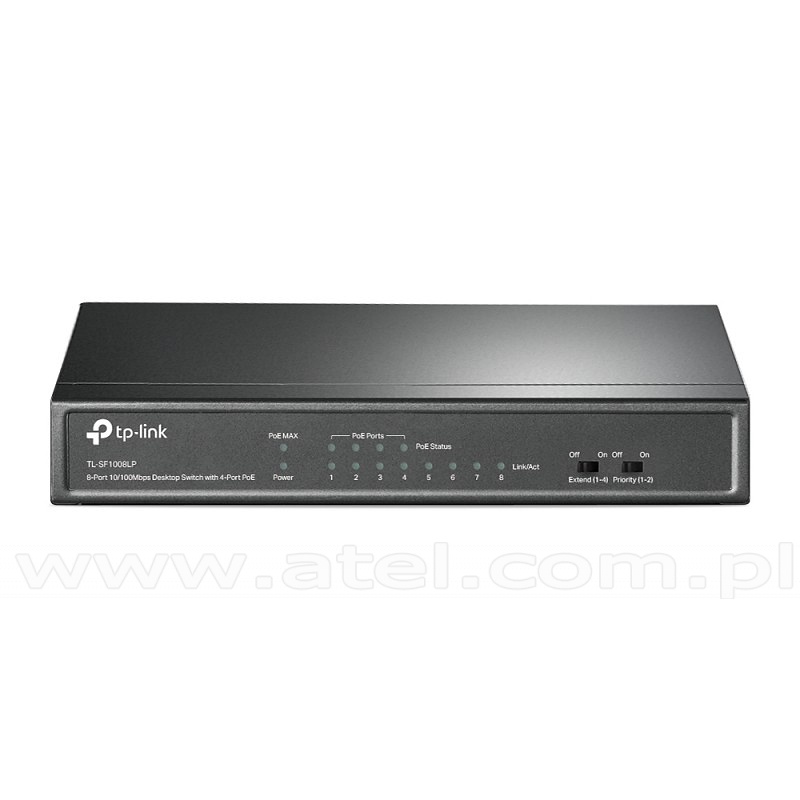

Unmanaged switch, 8x 10/100 RJ-45, PoE, desktop (TP-Link TL-SF1008LP)

  • 8 10/100 Mbps RJ45 ports
  • 4 PoE ports transfer data and power on individual cables
  • Works with IEEE 802.3af compliant PDs
  • Up to 250 m data and power transmitting range under Extend Mode**
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
  • Supports PoE Power up to 41 W for all PoE ports*
  • Plug and play with no configuration required
Copper ports 8x 10/100 Mbps RJ-45
Standard 802.3af compliant
PoE Ports Port1- Port4
Power Supply 41W
Switching Capacity 1.6Gbps
Packet Forwarding Rate 1,1904 Mpps
Mac Address Table 2K
Jumbo Frame 2 KB
Software features
Advanced Features Compatible With IEEE 802.3af Compliant PDs,
Priority Function,
Mac Address Auto-Learning And Auto-Aging,
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode,
Extend Mode Button (Ports 1–4),
Priority Mode Button (Ports 1–2)
Transfer Method Store-And-Forward
Dimensions 6.7 3.9 1.1 in (171 98 27 mm)
Operating Temperature 0℃~40℃ (32℉~104℉)
Storage Temperature -40℃~70℃ (-40℉~158℉)
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing
Power External Power Adapter(Output 53.5 V DC / 0.81 A)
Power Consumption 2.2W (max. no PD connected),
47W (max. with 41w PD connected)
Max Heat Dissipation 7.5BTU/h(no PD connected),
160.61BTU/h(with 58W PD connected)
Certificates CE,
FCC,
RoHS
Warranty 5 years
Manufacturer TP-Link

FAST ETHERNET / UNMANAGED SWITCHES
TAGS: PoE
Net Price: 28,80 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
