#09132
NEW
SwitchesTP-LINKTL-SF1009P

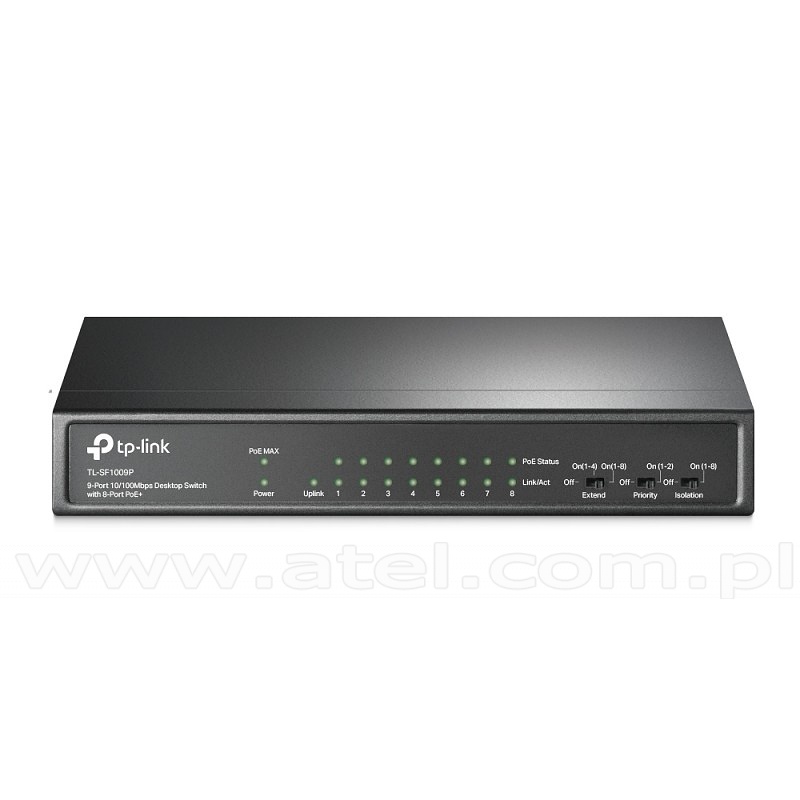

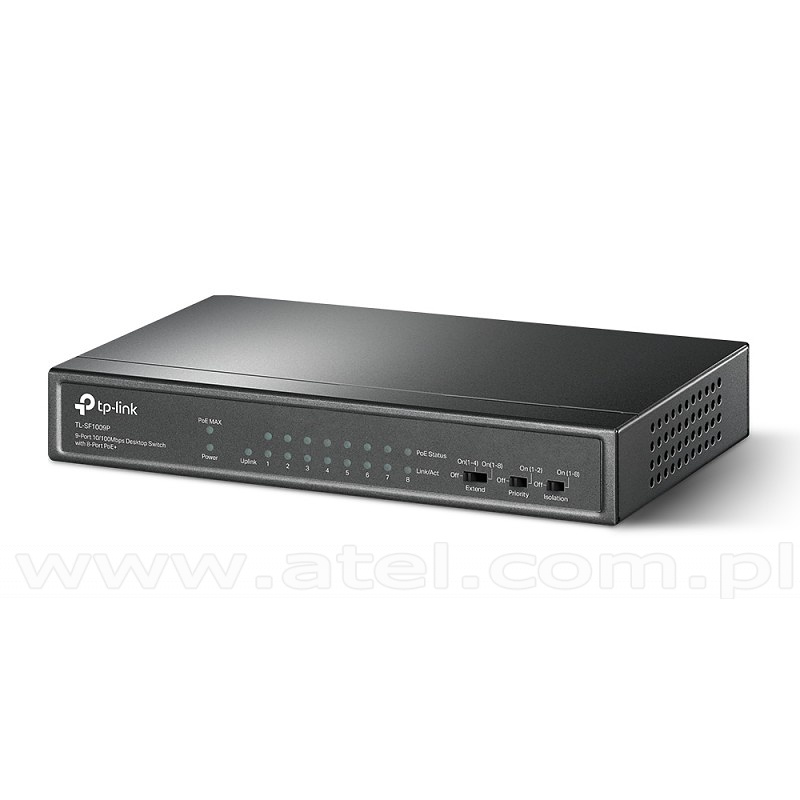

Unmanaged switch, 9x 10/100 RJ-45, PoE+, desktop (TP-Link TL-SF1009P)

  • 9 10/100 Mbps RJ45 ports
  • 8 PoE+ ports transfer data and power on individual cables
  • Works with IEEE 802.3af/at compliant PDs
  • Supports PoE Power up to 30 W for each PoE port
  • Supports PoE Power up to 65 W for 8 PoE ports
  • Up to 250 m data and power transmitting range under Extend Mode
  • Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
  • Isolation Mode allows one-click client traffic separation for higher security and performance
  • Plug and play with no configuration required
Copper ports 9x 10/100 Mbps RJ-45
Standard 802.3af/at compliant
PoE+ Ports Port1- Port8
Power Supply 65W
Switching Capacity 1.8Gbps
Packet Forwarding Rate 1.3392 Mpps
Mac Address Table 2K
Software features
Advanced Features Compatible With IEEE 802.3af/at Compliant PDs,
Extend Mode Button (Ports 1–4 and Ports 1–8,
Up to 250 m PoE power supply and data transmission),
Priority Mode Button (Ports 1–2),
Isolation Mode Button (Ports 1–8),
Mac Address Auto-Learning and Auto-Aging,
IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
Transfer Method Store-And-Forward
Dimensions 6.7 3.9 1.1 in (171 98 27 mm)
Operating Temperature 0℃~40℃ (32℉~104℉)
Storage Temperature -40℃~70℃ (-40℉~158℉)
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing
Power External Power Adapter(Output 53.5 V DC / 1.31 A)
Power Consumption 3,6W (max. no PD connected),
77,08W (max. with 65W PD connected)
Max Heat Dissipation 12,28BTU/h(no PD connected),
262,84BTU/h(with 65W PD connected)
Certificates CE,
FCC,
RoHS
Warranty 5 years
Manufacturer TP-Link

FAST ETHERNET / UNMANAGED SWITCHES
TAGS: PoE plus
Net Price: 40,90 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
