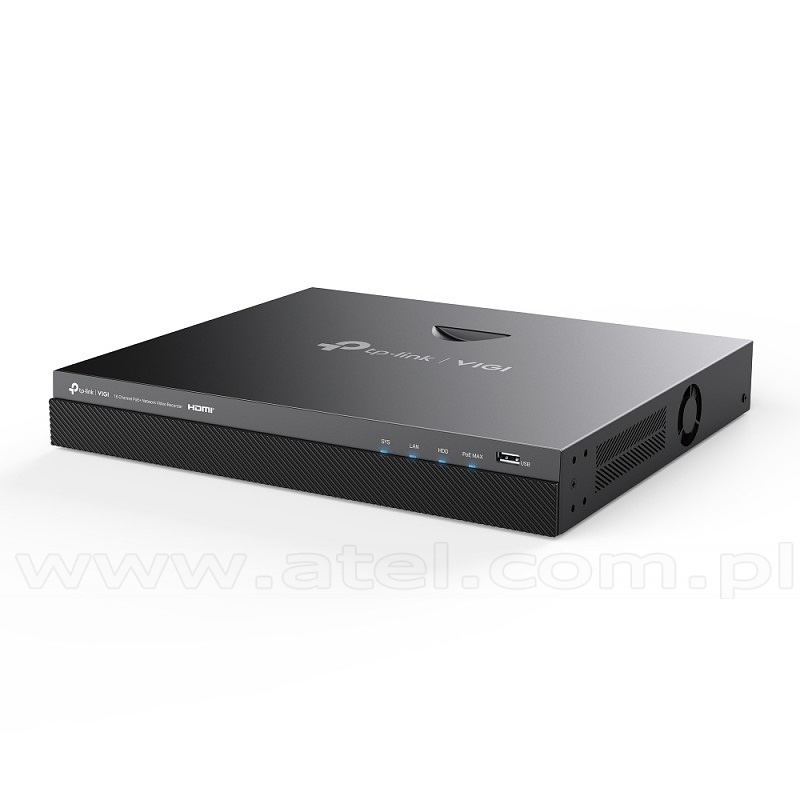

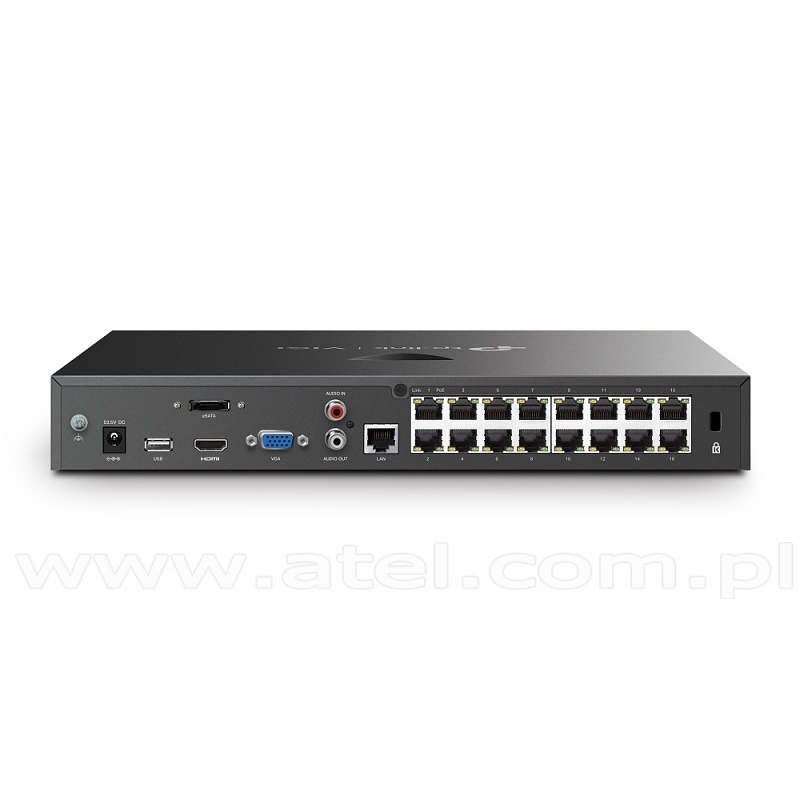

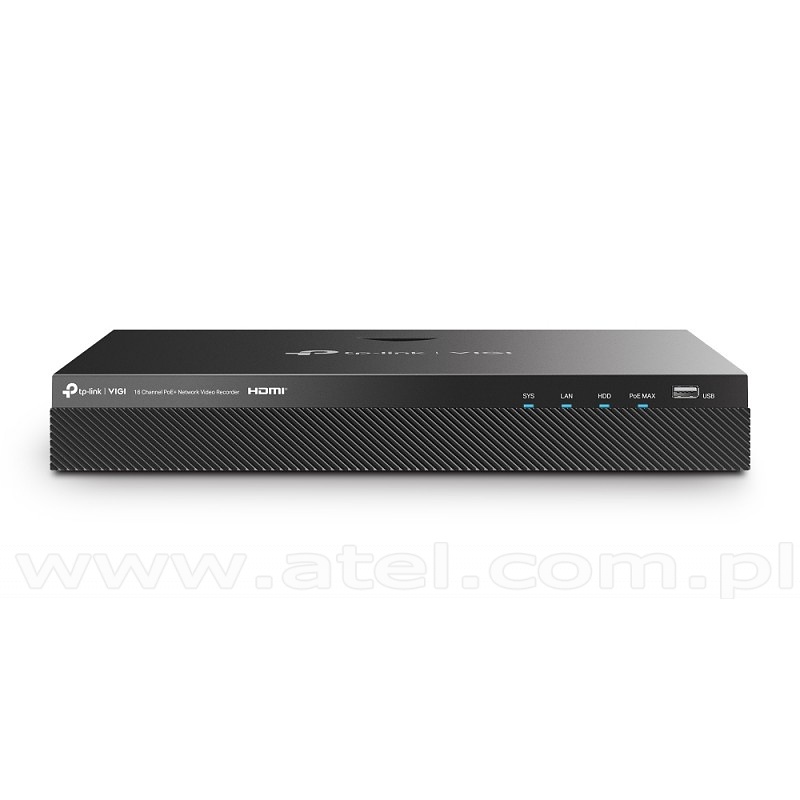

16 Channel Network Video Recorder PoE+ (TP-Link VIGI NVR2016H-16MP)
- 16-Channel Live View and 4K HDMI Video Output
- 16× 10/100 Mbps PoE+ Ports with 140 W PoE Budget
- Up to 8-ch @ 2MP (25fps) / 4-ch @ 4MP (25fps) Decoding Capability
- 16-Channel Synchronous Playback
- 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
- 2× SATA Interfaces and 1 Up to 16 TB
- H.265+ Compression Technology
- HDMI and VGA Simultaneous Output
- Remote Monitoring
| HARDWARE FEATURES: | |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, 2× USB 2.0 |
| Standard | 802.3at/af Compliant |
| PoE Budget | 140 W Available for All PoE+ Ports, 30 W Max per Port |
| Power Supply | 53,5V DC/3,37A |
| Dimensions( H X W X D ) | 330 × 285 × 45 mm |
| Weight | 2.1 kg |
| Power Consumption | 6.2 W (Without Disk), 40 W (With Disk) |
| NETWORK: | |
| Protocol | TCP/IP, DHCP, DNS, NTP, UPnP |
| Incoming Bandwith | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| VIDEO/IMAGE: | |
| Video Input | 16-Channel IP Video Input, up to 8 MP Resolution |
| Video Output | Recording Resolution 8MP/ 5 MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF, HDMI/VGA Output Resolution 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1680 × 1050/60Hz, 1440 × 900/60Hz |
| DECODING: | |
| Decoding Format | H.265+/H.265/ H.264+/H.264 |
| Live View/Playback Resolution | 5 MP/ 4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Capability | 25fps - 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP, 30fps - 4-ch @ 3MP, 2-ch @ 5MP |
| HARD DISK: | |
| SATA | 2 SATA Interface |
| Capacity | Up to 10 TB |
| OTHERS: | |
| Package Contents | VIGI Network Video Recorder, Power Adapter, HDD Screws, Mouse, Quick Installation Guide |
| Environment | Operating Temperature -10°~55° |
Net Price: 735,00 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
