Smart homeTP-LINKVIGI C540V

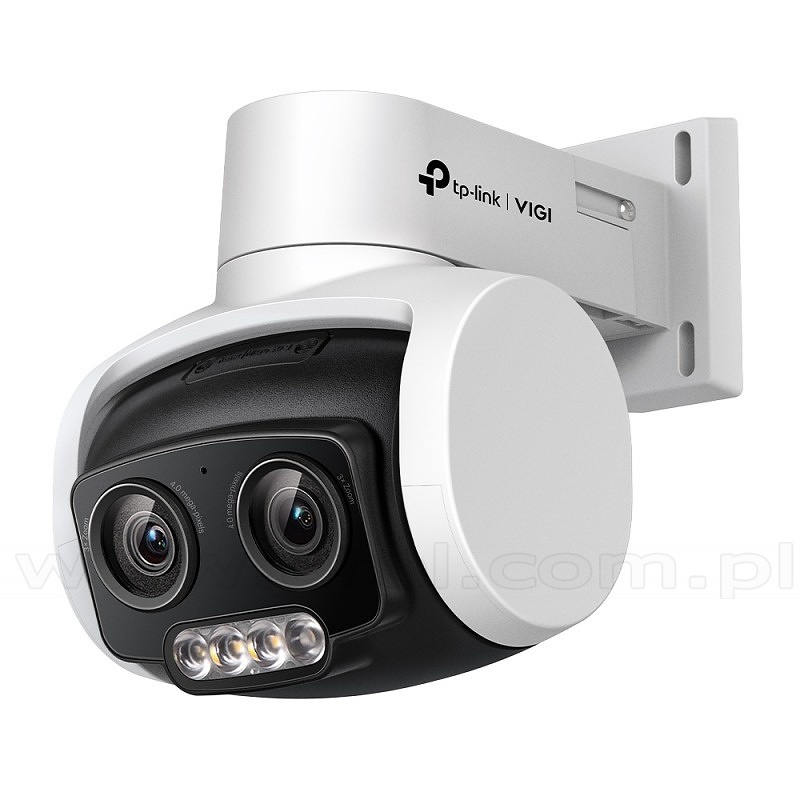

4 Mpx Outdoor Pan Tilt Network Camera, Dual-Lens Varifocal (TP-Link VIGI C540V)

  • 4MP Super-High Definition: 4MP offers more than enough pixels to pick up some of the more discreet details.
  • 24h Full-Color: Captures 24 hours of full-color details, even in pitch-black conditions, thanks to large-aperture lens, a high-sensitivity sensor, and 4× attached supplemental lights.
  • 3× Zoom: Allows for closer viewing of objects in expansive areas.
  • Instant Zoom: Zooming is instant without suffering from delays and image dragging.
  • Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
  • Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, removes/abandons objects, or enters/exits certain region.
  • Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.
  • Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
  • Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
  • H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
  • IP66 Waterproof: Reliable IP66 for stable outdoor performance.
  • Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. - Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).
HARDWARE FEATURES:
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
On-board Storage Built-In Memory Card Slot,
Support MicroSD Card,
Up to 256 GB
Power Requirements 12V DC ± 5%,
5.5mm Coaxial Power Plug,
PoE (802.3af/at,
class 0)
Power Consumption 12V DC Max 14W,
PoE Class 0
Dimensions( H X W X D ) 107× 136× 139 mm
General Features Two Streams,
Mirror,
Privacy Masks,
Password Reset via E-mail,
HTTP Listening
NETWORK:
Security Password Protection,
HTTPS Encryption,
IP Address Filter,
Digest Authentication
Protocol TCP/IP,
UDP,
ICMP,
HTTP,
HTTPS,
DHCP,
DNS,
RTSP,
NTP,
UPnP UDP,
SSL/TLS
API ONVIF
CAMERA:
Image Sensor 1/3" Progressive Scan CMOS
Lens 4-12 mm (Mieszany Zoom)
Aperture F1.6
Lens Mount M12
Viewing Angle horizontal FOV 84°,
vertical FOV 46°,
diagonal FOV 100°
Day/Night Mechanism IR Cut Filter
IR Working Distance 30m
Zoom 3x Mixed Zoom
Pan/tilt Range Pan 0° to 332°,
Tilt 0° to 120°
Minimum Illumination Color 0.1 Lux@F2.0, 0 Lux with IR
Weatherproof Rating IP66
Digital Noise Reduction 3D DNR
WDR DWDR
VIDEO/IMAGE:
Video Compression Main stream- H.265+/H.265/H.264+/H.264,
Sub-Stream- H.265/H.264
Frame Rate & Resolutions Frame Rate- 1fps,
5fps,
10fps,
15fps,
20fps,
25fps,
30fps,
Resolution- 2560x1440,
2304x1296,
2048x1280,
1920x1080,
1280x720
Video Streaming 3 Main Streams & 3 Sub-Streams
Image Settings Mirror,
Brightness,
Contrast,
Saturation,
Sharpness,
Exposure,
WDR,
White Balance Adjustable by Client Software
Image Enhancement BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate 64 Kbps to 4 Mbps
SMART FEATURE-SET:
Smart Event Human & Vehicle Classification,
Area Intrusion,
Detection,
Line-Crossing Detection,
People,
Detection,
Vehicle Detection,
Region Entering,
Detection,
Region Exiting Detection,
Object,
Abandoned Detection,
Object Removal Detection
Basic Event Motion Detection,
Camera Tampering Detection,
Exception (Illegal Login)
Linkage Method Trigger Notification ONVIF,
HTTPS
Region of Interest 1 Region
OTHERS:
Audio Input Built-in Microphone
Audio Output Built-in Speaker
Certification CE,
EAC,
UKCA,
RCM,
Triman,
BSMI,
VCCI,
FCC,
IC
Package Contents VIGI Network Camera,
Quick Start Guide,
Mounting Accessories
Environment Operating Temperature -30°~60°

TAGS: PoE
Net Price: 117,00 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
