Smart homeTP-LINKVIGI NVR1004H-4P

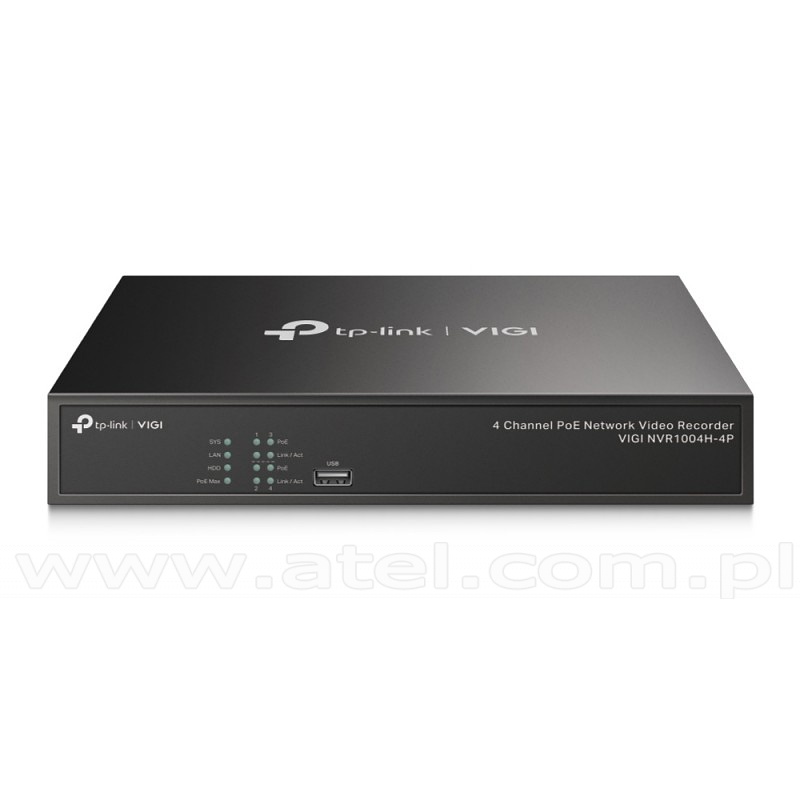

4 Channel Network Video Recorder with PoE+ (TP-Link VIGI NVR1004H-4P)

  • 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle†.
  • Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
  • 4-Channel Simultaneous Playback§: Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
  • H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • ONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
  • Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
  • 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
  • Remote Monitoring: The dedicated VIGI app and VIGI Security Manager enable remote monitoring, providing ease and convenience.
  • Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
  • 80 Mbps Video Access Bandwidth: High video access bandwidth ensures your NVR manages more cameras with high resolution. Based on laboratory testing using VIGI cameras, VIGI NVR can manage up to four 4MP cameras.
HARDWARE FEATURES:
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port,
2× USB 2.0
External Power Supply 53.5V DC/1.31A
Dimensions( H X W X D ) 246.2 × 148.2 × 45 mm
Power Consumption 4.25 W (without disk)
NETWORK:
Protocol TCP/IP,
DHCP,
DNS,
NTP,
UPnP
Incoming Bandwith 80 Mbps
Outgoing Bandwidth 60 Mbps
VIDEO/IMAGE:
Video Input 4-Channel IP Video Input,
up to 8 MP Resolution
Recording Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI Output Resolution 1 Channel,
Resolution 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz,
1440x900/60Hz,
1280x1024/60Hz, 1024x768/60Hz,
1280x720/60Hz
VGA Output Resolution 1 Channel,
Resolution 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz,
1280x1024/60Hz,
1024x768/60Hz, 1280x720/60Hz
DECODING:
Decoding Format H.265+/H.265/ H.264+/H.264
Live View/Playback Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability 2-ch @ 8MP,
4-ch @ 4MP
HARD DISK:
SATA 1 SATA Interface
Capacity Up to 10 TB
OTHERS:
Package Contents VIGI Network Video Recorder,
Power Adapter,
HDD Screws,
Mouse,
Quick Installation Guide
Environment Operating Temperature -10°~55°

« previous product  |  next product »     » show on list« » Smart home «
Net Price: 135,00 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
