#09304
Smart homeTP-LINKVIGI NVR1104H-4P

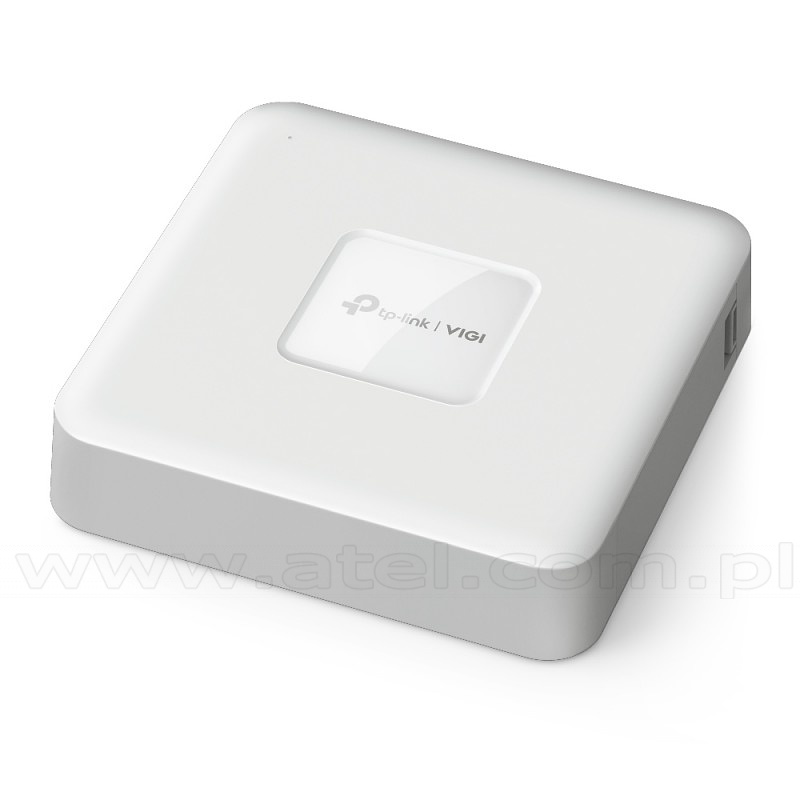

4 Channel Network Video Recorder with PoE+ (TP-Link VIGI NVR1104H-4P)

  • 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP and a 4-channel display ensures you capture every detail, from every angle.
  • Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
  • Simple HDD Installation: Install and remove the HDD manually with easy side access.
  • 4-Channel Simultaneous Playback: Replay the feed from up to 4 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
  • H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • ONVIF Ensures Compatibility*: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
  • Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
  • 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
  • Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
  • Built-In Speaker: Enjoy real-time audio output without needing peripherals for greater convenience.
  • Flexible Installation: Choose the suitable installation method by simply mounting your NVR on the wall, or placing it on or under a desk.
HARDWARE FEATURES:
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port,
2× USB 2.0
External Power Supply 53.5V DC/1.31A
Dimensions( H X W X D ) 200,3 × 200,3 × 43 mm
Power Consumption 4.82 W (without disk)
NETWORK:
Protocol TCP/IP,
DHCP,
DNS,
NTP,
UPnP
Incoming Bandwith 80 Mbps
Outgoing Bandwidth 60 Mbps
VIDEO/IMAGE:
Video Input 4-Channel IP Video Input,
up to 8 MP Resolution
Recording Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI Output Resolution 1 Channel,
Resolution 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz,
1440x900/60Hz,
1280x1024/60Hz, 1024x768/60Hz,
1280x720/60Hz
VGA Output Resolution 1 Channel,
Resolution 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz,
1280x1024/60Hz,
1024x768/60Hz, 1280x720/60Hz
DECODING:
Decoding Format H.265+/H.265/ H.264+/H.264
Live View/Playback Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability 2-ch @ 8MP,
4-ch @ 4MP
HARD DISK:
SATA 1 SATA Interface
Capacity Up to 10 TB
OTHERS:
Package Contents VIGI Network Video Recorder,
Power Adapter,
HDD Screws,
Mouse,
Quick Installation Guide
Environment Operating Temperature -10°~55°

TAGS: PoE plus
Net Price: 128,00 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
