#09198
Smart homeTP-LINKVIGI C400HP-2.8

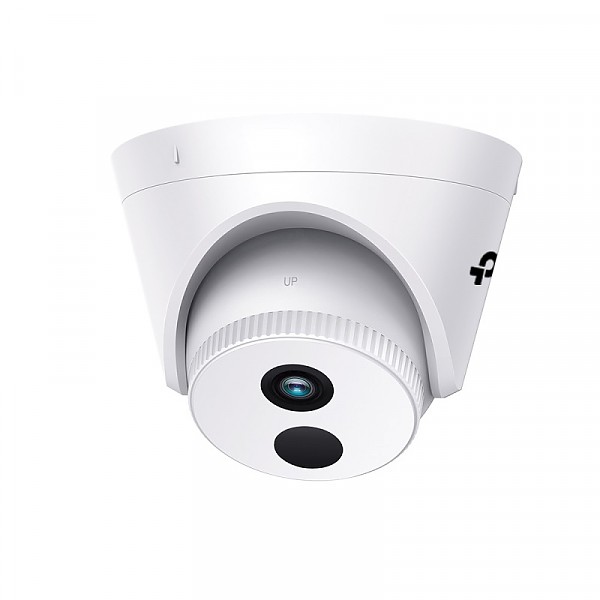

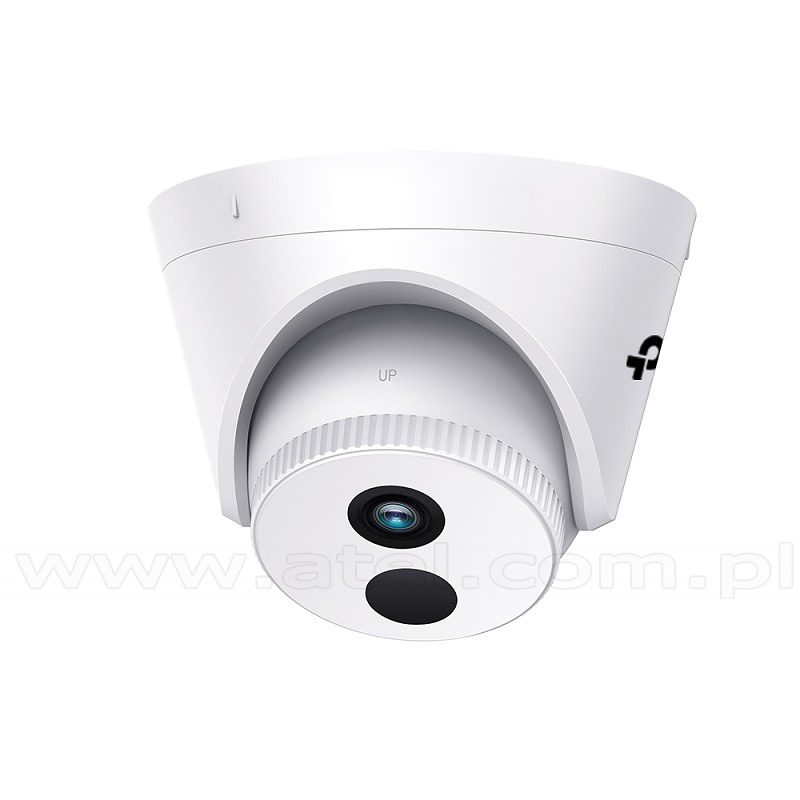

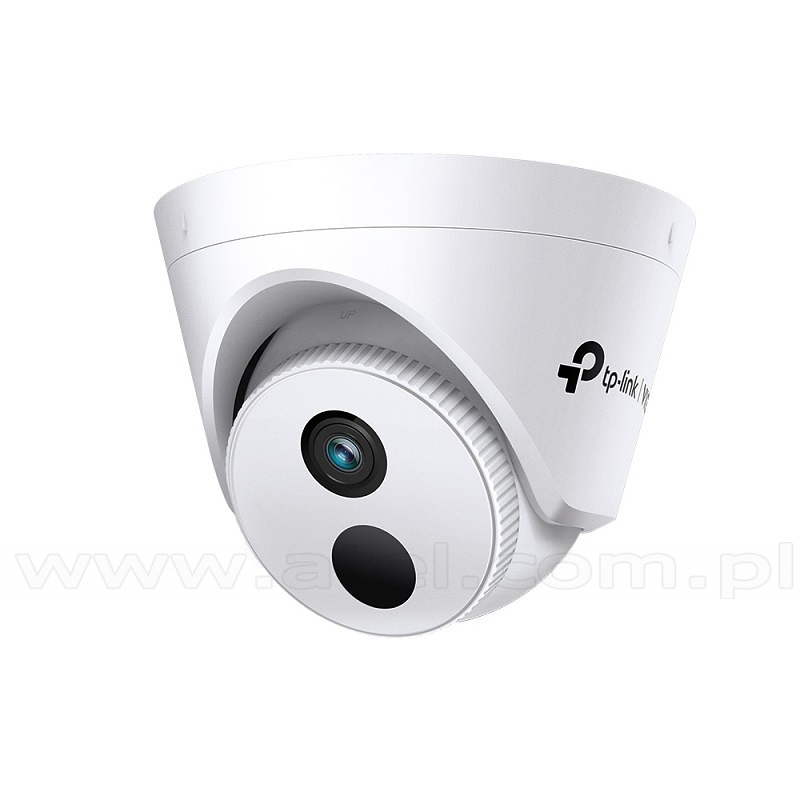

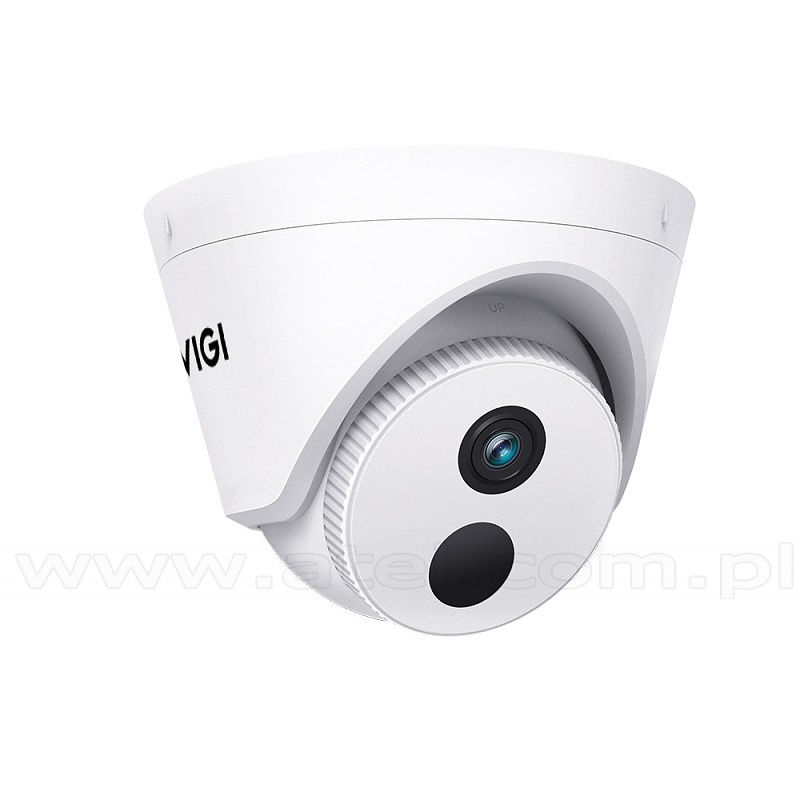

3 Mpx Outdoor Turret Network Camera lens 2.8mm (TP-Link VIGI C400HP-2.8)

  • 3MP Ultra-High Definition: The VIGI C400 camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.
  • 2.8/4mm Lens: Whether you need a wide angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C400 comes with two different lens versions to better suit your security needs.
  • Smart Detection (motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
  • Smart IR: Keeps objects from being under-rendered when far away or overexposed when close to camera at night.
  • WDR: Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
  • 3D DNR: Removes abnormal pixelation to provide clearer video and eliminate distortion.
  • Night Vision: A robust night vision system ensures your camera performs well in low light conditions and records what's happening for future inspection.
  • H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
  • PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
  • VIGI App: Manage your security from the palm of your hand with the VIGI app.
HARDWARE FEATURES:
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Power Requirements 12V DC ± 5%,
5.5mm Coaxial Power Plug,
PoE (802.3af/at,
class 0)
Dimensions( H X W X D ) 123 × 123 × 83 mm
Weight 195g
General Features Two Streams,
Mirror,
Privacy Masks,
Password Reset via E-mail,
HTTP Listening
NETWORK:
Security Password Protection,
HTTPS Encryption,
IP Address Filter,
Digest Authentication
Protocol TCP/IP,
UDP,
ICMP,
HTTP,
HTTPS,
DHCP,
DNS,
RTSP,
NTP,
UPnP UDP,
SSL/TLS
API ONVIF
Simultaneous Live View 4 Main Streams & 3 Sub-Streams,
or 3 Main Streams & 5 Sub-Streams
CAMERA:
Image Sensor 1/2.7" Progressive Scan CMOS
Lens 2.8 mm
Aperture F2.0
Lens Mount M12
Viewing Angle horizontal FOV 97.8°,
vertical FOV 52.9°,
diagonal FOV 117.9°
Day/Night Mechanism IR Cut Filter
IR Working Distance 30m
Minimum Illumination Color 0.1 Lux@F2.0, 0 Lux with IR
Pan/Tilt Range Pan 0° to 360°,
Tilt 0° to 85°,
Rotate 0° to 360°
Digital Noise Reduction 3D DNR
WDR DWDR
VIDEO/IMAGE:
Video Compression Main stream- H.265/H.264,
Sub-Stream- H.265/H.264
Frame Rate & Resolutions Frame Rate- 1fps,
5fps,
10fps,
15fps,
20fps,
25fps,
30fps,
Resolution- 2304x1296,
2048x1280,
1920x1080,
1280x720,
704x576,
640x480,
352x288,
320x240
Video Streaming Main Stream,
Sub-Stream
Image Settings Mirror,
Brightness,
Contrast,
Saturation,
Sharpness,
Exposure,
WDR,
White Balance Adjustable by Client Software
Image Enhancement BLC/3D DNR/Prevent Overexposure to Infrared Light
Video Bit Rate 64 Kbps to 6 Mbps
SMART FEATURE-SET:
Smart Event Area Intrusion Detection,
Line-Crossing Detection
Basic Event Motion Detection,
Camera Tampering Detection,
Exception ( illegal login)
Linkage Method Trigger Notification ONVIF,
HTTPS
Region of Interest 1 Region
OTHERS:
Certification CE,
FCC,
RCM,
BSMI,
VCCI,
RoHS
Package Contents VIGI Network Camera,
Quick Start Guide,
Screws and Anchors,
Mounting Template
Environment Operating Temperature -30°~60°
