#09189
802.11ax (WiFi 6)TP-LINKEAP610

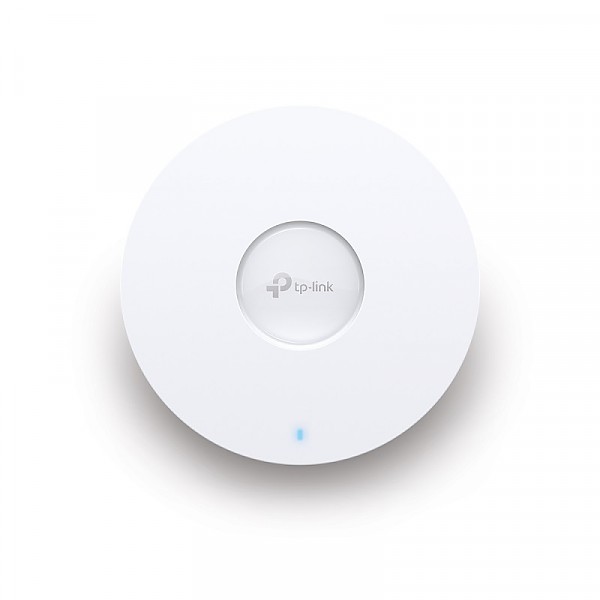

1800Mbps Wireless Access Point, AX1800 (TP-Link EAP610)

  • Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
  • High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
  • Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
  • Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
  • PoE+ Powered: Supports both Power over Ethernet (802.3at) and DC power supply for flexible installations.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Standards IEEE 802.11ax/ac/n/g/b/a
Ports 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button Reset
Frequency range 2.4GHz and 5GHz
Signal Rate 5GHz Up to 1201Mbps,
2.4GHz Up to 574Mbps
EIRP CE <20dBm(2,4GHz) <23dBm(5GHz),
FCC <27dBm
Wireless Functions Multiple SSIDs (Up to 16 SSIDs,
8 for each band),
Enable/Disable Wireless Radio,
Automatic Channel Assignment,
Transmit Power Control (Adjust Transmit Power on dBm),
QoS(WMM),
Airtime Fairness,
Beamforming,
Band Steering,
Load Balance,
Rate Limit,
Link Aggregation,
Reboot Schedule,
Wireless Schedule,
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication,
Access Control,
Wireless Mac Address Filtering,
Wireless Isolation Between Clients,
SSID to VLAN Mapping,
Rogue AP Detection,
802.1X Support,
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
MANAGEMENT
Omada App Yes
Centralized Management Omada Cloud-Based Controller,
Omada Hardware Controller (OC300),
Omada Hardware Controller (OC200),
Omada Software Controller
Cloud Access Yes (Through OC300,
OC200,
Omada Cloud-Based Controller,
or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Antenna 2 Dual-Band Antennas,
2.4GHz- 2*3.5dBi,
5GHz- 2*5dBi
Dimensions 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
Power 802.3at PoE,
12 V DC/1A
Power Consumption EU 12,8 W (PoE); 10,8 W (DC)
Mounting Ceiling /Wall Mounting (Kits included)
Physical Security Lock Yes
Operating Temperature 0°C~40°C (-32℉~104℉)
Storage Temperature -40℃~70℃ (-40℉~158℉)
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing
Package Contents EAP610,
Power Adapter,
Ceiling/Wall Mounting Kits,
Installation Guide
System Requirements Microsoft Windows XP,
Vista,
Windows 7,
Windows 8,
Windows 10,
Linux
Certificates CE,
FCC,
RoHS

TAGS: PoE
Net Price: 66,80 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
