#09092
NEW
Standard ACTP-LINKEAP660 HD

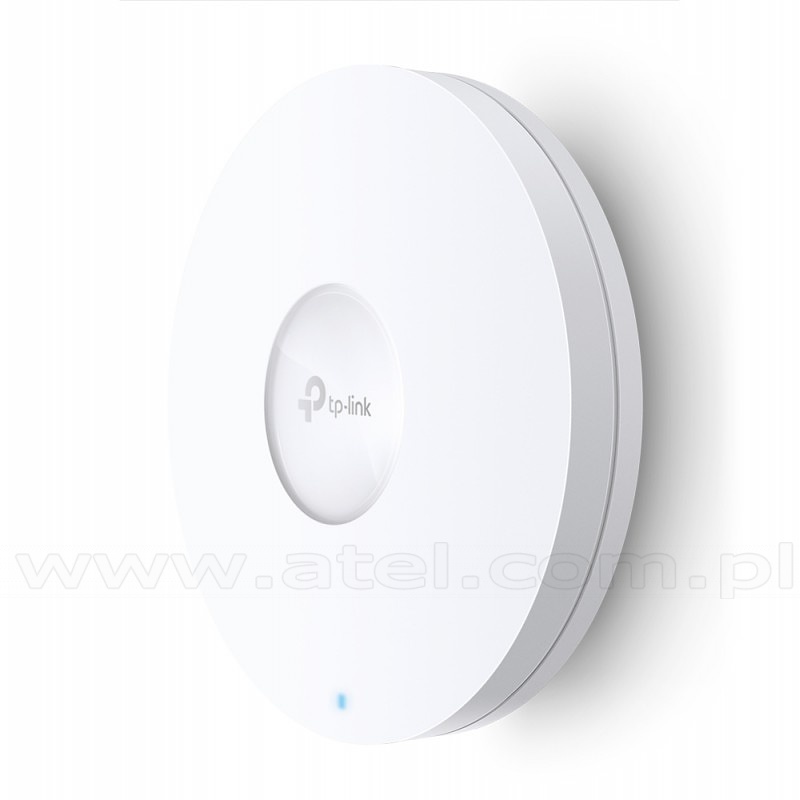

3600Mbps Outdoor Wireless Access Point, AX3600 (TP-Link EAP660 HD)

  • Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.
  • High-Density Connectivity: 4 increased capacity to connect more devices simultaneously.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • 2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput.
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
  • PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Standards IEEE 802.11ax/ac/n/g/b/a
Ports 1 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
Button Reset
Frequency range 2.4GHz and 5GHz
Signal Rate 5GHz Up to 2402Mbps,
2.4GHz Up to 1148Mbps
EIRP CE <20dBm(2,4GHz) <23dBm(5GHz),
FCC <27dBm
Wireless Functions Multiple SSIDs (Up to 16 SSIDs,
8 for each band),
Enable/Disable Wireless Radio,
Automatic Channel Assignment,
Transmit Power Control (Adjust Transmit Power on dBm),
QoS(WMM),
Airtime Fairness,
Beamforming,
Band Steering,
Load Balance,
Rate Limit,
Link Aggregation,
Reboot Schedule,
Wireless Schedule,
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication,
Access Control,
Wireless Mac Address Filtering,
Wireless Isolation Between Clients,
SSID to VLAN Mapping,
Rogue AP Detection,
802.1X Support,
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
MANAGEMENT
Omada App Yes
Centralized Management Omada Cloud-Based Controller,
Omada Hardware Controller (OC300),
Omada Hardware Controller (OC200),
Omada Software Controller
Cloud Access Yes (Through OC300,
OC200,
Omada Cloud-Based Controller,
or Omada Software Controller)
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Antenna 2 Dual-Band Antennas,
2.4GHz- 2*3.5dBi,
5GHz- 2*5dBi
Dimensions 9.6 9.6 2.5 in (243 243 64 mm)
Power 802.3at PoE,
12 V DC
Power Consumption 18.5 W
Mounting Ceiling /Wall Mounting (Kits included)
Physical Security Lock Yes
Operating Temperature 0C~40C (-32℉~104℉)
Storage Temperature -40℃~70℃ (-40℉~158℉)
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing
Package Contents EAP660 HD,
Power Adapter,
Ceiling/Wall Mounting Kits,
Installation Guide
System Requirements Microsoft Windows XP,
Vista,
Windows 7,
Windows 8,
Windows 10,
Linux
Certificates CE,
FCC,
RoHS

TAGS: PoE
Net Price: 177,00 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
