#09253
802.11ax (WiFi 6)TP-LINKEAP655-Wall

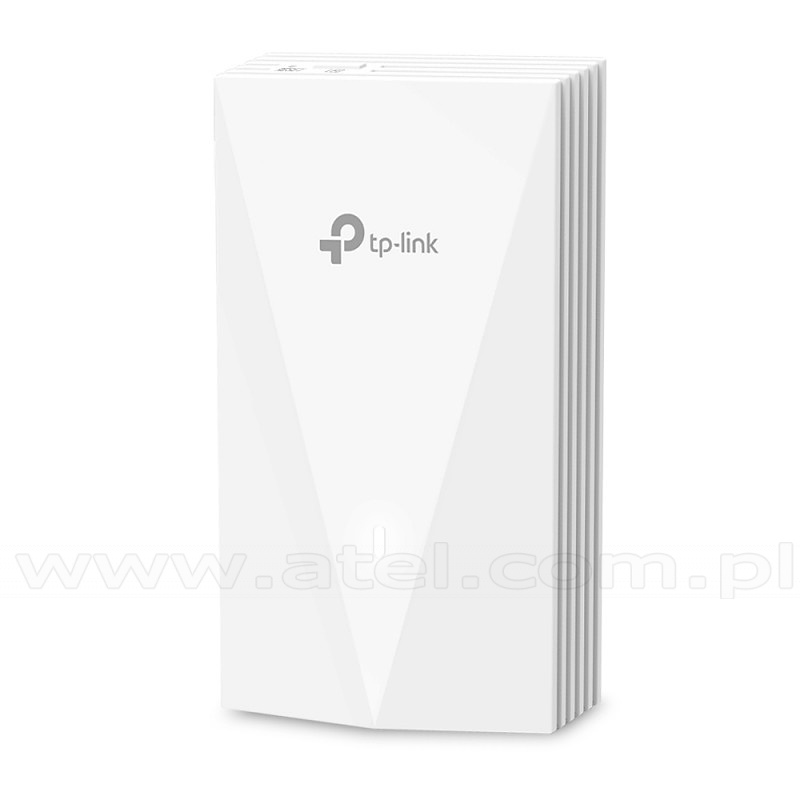

3000Mbps Outdoor Wireless Access Point, AX3000 (TP-Link EAP655-Wall)

  • Blazing-Fast AX3000 WiFi 6 Speeds:: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
  • Higher Network Efficiency: Deliver data to more devices at the same time with less lag.
  • Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.
  • Multiple Gigabit Ports: Connect multiple devices with three downlink gigabit ports, one with PoE pass-through.
  • Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
  • Secure Guest Network: Implement multiple authentication options (SMS/Voucher) packed with high-quality wireless security technologies.
  • Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
Standards IEEE 802.11ax/ac/n/g/b/a
Ports 10/100/1000Mbps (RJ-45) Port *1,
Downlink- 10/100/1000Mbps Ethernet Port*3 (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13W.)
Frequency range 2.4GHz and 5GHz
Signal Rate 5GHz Up to 1201Mbps,
2.4GHz Up to 574Mbps
EIRP CE <20dBm(2,4GHz) <23dBm(5GHz),
FCC <27dBm
Wireless Functions Multiple SSIDs (Up to 16 SSIDs,
8 for each band),
Enable/Disable Wireless Radio,
Automatic Channel Assignment,
Transmit Power Control (Adjust Transmit Power on dBm),
QoS(WMM),
Airtime Fairness,
Beamforming,
Band Steering,
Load Balance,
Rate Limit,
Link Aggregation,
Reboot Schedule,
Wireless Schedule,
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication,
Access Control,
Wireless Mac Address Filtering,
Wireless Isolation Between Clients,
SSID to VLAN Mapping,
Rogue AP Detection,
802.1X Support,
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
Omada App Yes
Centralized Management Omada Hardware Controller (OC300),
Omada Hardware Controller (OC200),
Omada Software Controller
Cloud Access Yes (Through OC300,
OC200,
or Omada Software Controller)
EAP Controller Software Yes
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Local/Remote Syslog
Telnet Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Antenna 2 Dual-Band Antennas,
2.4GHz- 2*3dBi,
5GHz- 2*4dBi
Dimensions 143 × 86 × 42,6mm (5.6 × 3.4 × 1,7 in)
Power 802.3af/802.3at PoE
Power Consumption EU 10W (802.3at PoE,
PoE Out off),
US 11.5W (802.3at PoE,
PoE Out off)
Mounting Wall Plate Mounting
Physical Security Lock Kensington Lock Slot
Watch Dog Yes
Operating Temperature 0°C~40°C (-32℉~104℉)
Storage Temperature -40℃~70℃ (-40℉~158℉)
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing
Package Contents EAP655-Wall,
Mounting Kits,
Installation Guide
System Requirements Microsoft Windows XP,
Vista,
Windows 7,
Windows 8,
Windows 10,
Windows 11,
Linux
Certificates CE,
FCC,
RoHS
Warranty 5 years

TAGS: PoE
Net Price: 109,00 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
