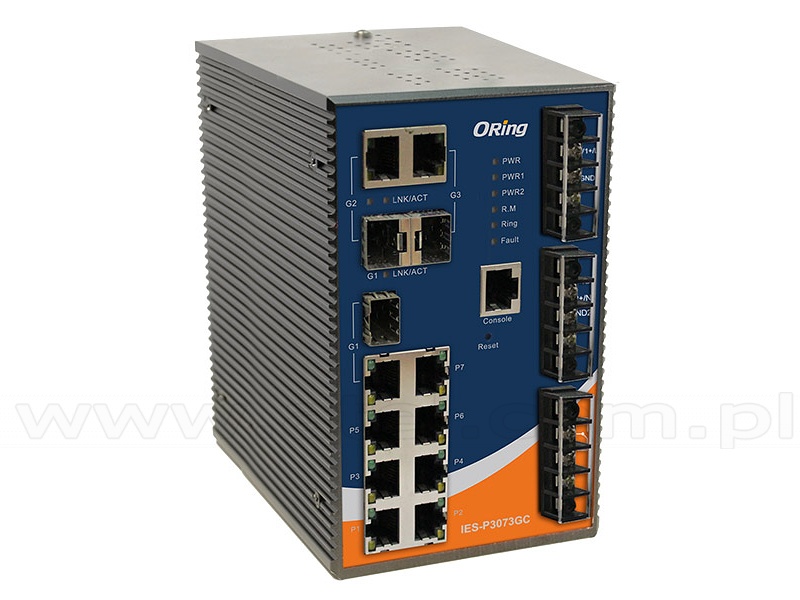

Managed switch, 7x 10/100 RJ-45 + 3 slide-in SFP slots / RJ-45, O/Open-Ring <10ms (ORing IES-P3073GC-HV)

IES-P3073GC series are IEC 61850-3 managed Redundant Ring Ethernet switch with 7x10/100Base-T(X) and 3xGigabit combo ports. These switches are designed for power substation application and rolling stock application, fully compliant with the requirement of IEC 61850-3 and IEEE 1613. And these switches designed for the toughest and fully compliant with EN50155 requirement. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring, O-Chain, MRP and MSTP/RSTP:2004/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. Another Open-Ring technology is also supported which can applied for other vendor's proprietary ring. O-Chain is the revolutionary network redundancy technology that provides the addon network redundancy topology for any backbone network, O-Chain allows multiple redundant network rings of different redundancy protocols to join and function together as a larger and more robust compound network topology. O-Chain provided ease-of-use while maximizing fault-recovery swiftness,
flexibility, compatibility, and cost-effectiveness in one set of network redundancy topology. All function of IES-P3073GC series can be managed centralized and convenient by a powerful windows utility — Open-Vision. IES-P3073GC series support new DDM (Digital Diagnostic Monitoring) function, which can monitor instantly the status of electrical voltage, current and temperature. In addition, the wide operating temperature range from -40 to 85°C can satisfy most of operating environment. Therefore, these switches are one of the most reliable choices for highly-managed Fiber Ethernet application.
Physical Ports
10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX 7
1000 COMBO with SFP 3
RS-232 Serial Console Port RS-232 in RJ45 connector with console cable (9600bps 8 N 1)
Technology
Ethernet Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X),
IEEE 802.3x for Flow control,
IEEE 802.1D for STP (Spanning Tree Protocol),
IEEE 802.1p for COS (Class of Service),
IEEE 802.1Q for VLAN Tagging,
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
IEEE 802.1X for Authentication,
IEEE 802.3ad for LACP (Link Aggregation Control Protocol)
MAC Table 8192 MAC addresses
Priority Queues 4
Processing Store-and-Forward
Switching latency 7 µs
Switching bandwidth 7.2 Gbps
Max. Number of Available VLANs 4096
IGMP multicast groups 1024
Port rate limiting User Define
Security Features Enable/disable ports,
MAC based port security,
Port based network access control (802.1x),
VLAN (802.1q ) to segregate and secure network traffic,
Radius centralized password management,
SNMPv3 encrypted authentication and access security
Software Features STP/RSTP (IEEE 802.1D/w),
Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units,
TOS/Diffserv supported,
Quality of Service (802.1p) for real-time traffic,
VLAN (802.1Q) with VLAN tagging and GVRP supported,
IGMP Snooping for multicast filtering,
Port configuration,
Port status,
Port statistics,
Port monitoring,
Port security
Network Redundancy STP,
RSTP,
O-Ring,
Open-Ring,
O-RSTP
LED Indicators
Power / Ready indicator Green - Ready LED x 3
Ring Master indicator Green - indicates system operated in O-Ring Master mode
Fault indicator Amber - Indicates unexpected event occurred
10/100TX RJ45 port indicator Green for port Link/Act,
Amber for Duplex/Collision
10/100/1000TX RJ45 port indicator Green for port Link/Act,
Amber for 100Mbps
Fiber port indicator Green for port Link/Act
Fault contact
Relay Relay output to carry capacity of 1A at 24VDC
Power
Input power Dual power inputs. 85~264VAC/88~373VDC on dual 3-pin terminal block,
IES-P3073GC-LV version with dual 12/48VDC power inputs on 2-pin terminal block
Power consumption (typical) 12W
Overload current protection present
Reverse polarity protection present on terminal block
Physical Characteristic
Enclosure IP-30
Dimension (W x D x H) 96.4mm x 145.5mm x 154mm
Weight 1935g
Environmental
Storage Temperature -40÷85°C(-40÷185°F)
Operating Temperature -40÷70°C (-40÷158°F)
Operating Humidity 5%÷95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950
Power Automation IEC 61850-3,
IEEE 1613
Warranty
Warranty period 5 years
IES-P3073GC-LV - version with dual 12/48VDC power inputs
