Wireless access point, 2x 10/100/1000 (LAN) PoE + 1x 802.11ac/g/n (WLAN) (ORing IGAP-820+)
IGAP-820 series is a reliable WLAN Access Point with 2 Ethernet Gigabit ports and IEEE 802.11 ac/g/n wireless module. It can be configured to operate in AP/Client mode. You are able to configure IGAP-820 / IGAP-820+ by WEB interface via LAN port or WLAN interface. IGAP-820 series provides dual Ethernet ports in switch mode, so that you can use Daisy Chain to reduce the usage of Ethernet switch ports. In addition, IGAP-820+ also provides P.D. feature on ETH2 port which is fully compliant with IEEE802.3af PoE P.D. specification. Therefore, IGAP-820 series is one of the best communication solutions for wireless applications on the industrial network.
| Physical Ports | |
|---|---|
| 10/100/1000 Base-T(X) Ports Auto MDI/MDIX | 2 (Present at ETH2 Fully compliant with IEEE 802.3af PoE P.D) |
| 5-Pin Terminal Block | 2(DI x 4 and DO x 4), Dry Contact- On short to GND, Off open, Wet Contact (DI to COM/GND) - On 0 to 3VDC, Off 10 to 30VDC |
| RS-232 Console port in DB9 | 115200, 8 ,N ,1 |
| WLAN interface | |
| Operating Mode | AP/Client |
| Antenna Connector | 3 x External reverse SMA-type antenna connector |
| Radio Frequency Type | OFDM, DSSS |
| Modulation IEEE802.11b | CCK, DQPSK, DBPSK |
| Modulation IEEE802.11a/g | OFDM |
| Modulation IEEE802.11n | BPSK, QPSK, 16QAM, 64QAM |
| Modulation IEEE802.11ac | BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| Frequency Band | 2.412~2.472 Ghz (13 channels), 5.180~5.240 GHz (4 channels) |
| Transmission Rate | IEEE802.11b 1/2/5.5/11 Mbps, IEEE802.11g 6/9/12/18/24/36/48/54 Mbps, IEEE802.11n UP to 450 Mbps, 802.11ac up to 1.3Gbps |
| Transmit Power | 802.11a 12dBm ± 1.5dBm@54Mbps, 802.11b 17dBm ± 1.5dBm@11Mbps, 802.11g 16dBm ± 1.5dBm@54Mbps, 802.11gn HT20 15dBm ± 1.5dBm @MCS7, 802.11gn HT40 14dBm ± 1.5dBm @MCS7, 802.11an HT20 -74dBm ± 2dBm@MCS7, 802.11an HT40 -71dBm ± 2dBm@MCS7, 802.11ac VHT80 10dBm ± 2dBm @MCS9 |
| Receiver Sensitivity | 802.11b -85dBm ± 2dBm@11Mbps, 802.11g -76dBm ± 2dBm@54Mbps, 802.11gn HT20 -75dBm ± 2dBm@MCS7, 802.11gn HT40 -72dBm ± 2dBm@MCS7, 802.11ac VHT80 -51dBm ± 2dBm@MCS9 |
| Encryption Security | WEP (64-bit ,128-bit key), WPA/WPA2 PSK - TKIP and AES encryption (802.11i), 802.1X/RADIUS Authentication supported |
| Wireless Security | SSID broadcast disable |
| Protocol Support | ARP, BOOTP, DHCP, DNS, HTTPs, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, STP (IEEE 802.1D), RSTP, PPPoE |
| LED Indicators | |
| Power Indicator | 3 x LEDs, PWR1(2)(PoE) / Ready, Red On - Power is on and booting up, Green On - Power is on and functioning Normal |
| 100/1000Base-T(X) Port Indicator | 2 x LEDs, LNK/ACT - Green for port Act., Speed - Green for port Link at 1000Mbps, Amber for port Link at 100Mbps. Off for port Link at 10Mbps |
| WLAN LEDs | Green Solid On RF on, Blink- data transmitting, Green for WLAN Strength 1<25%, 2<50%, 3<75%, 4<100% |
| Fault | 1 x LED, Red for Ethernet link down or power down indicator |
| Fault Contact | |
| Relay | Relay output to carry capacity of 1A at 24VDC |
| Power | |
| Redundant Input Power | Dual DC inputs. 12~48 VDC on 6-pin terminal block |
| Power consumption (typical) | 8.5W |
| Overload Current Protection | Present |
| Reverse Polarity Protection | Present on terminal block |
| Physical Characteristic | |
| Enclosure | IP-30 |
| Dimension (W x D x H) | 74.3(W) x 109.2(D) x 153.6(H) mm (2.93 x 4.3 x 6.05 inch.) |
| Weight | 1155g |
| Environmental | |
| Storage Temperature | -40÷85°C (-40÷185°F) |
| Operating Temperature | -25÷70°C (-13÷158°F) |
| Operating Humidity | 5%÷95% Non-condensing |
| Regulatory approvals | |
| EMI | FCC Part 15, CISPR (EN55022) class A |
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS),EN61000-4-8, EN61000-4-11 |
| Shock | IEC60068-2-27 |
| Free Fall | IEC60068-2-31 |
| Vibration | IEC60068-2-6 |
| Safety | EN60950-1 |
| Warranty | |
| Warranty period | 5 years |
| * For special orders only
Net Price: 777,00 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
| [+]add item to comparison | show comparison [0] |
  |
[price ] |
Wireless access point, 2x 10/100/1000 (LAN) PoE + 1x 802.11ac/g/n (WLAN) (ORing IGAP-820+)(for special orders only)
777,00 EUR
#06532
Wireless access point, 2x 10/100/1000 (LAN) PoE + 1x 802.11b/a/g/n (WLAN) (ORing IGAP-620+)(for special orders only)
656,00 EUR

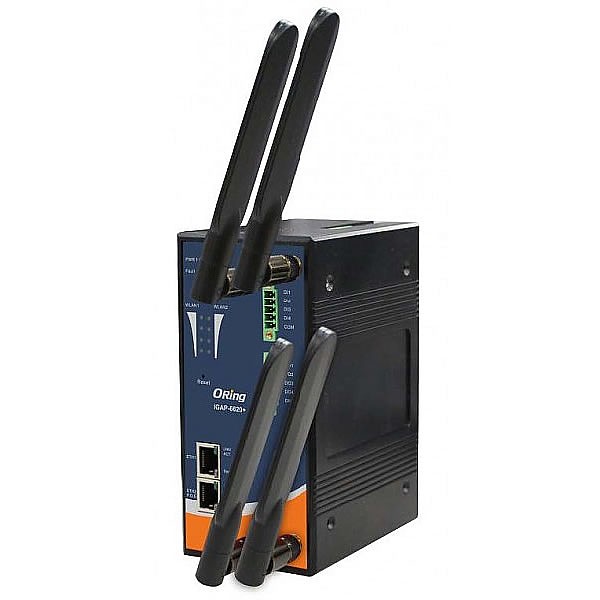

#06533
