#06612
NEW
Industrial SwitchesORING NETWORKINGIES-C1080

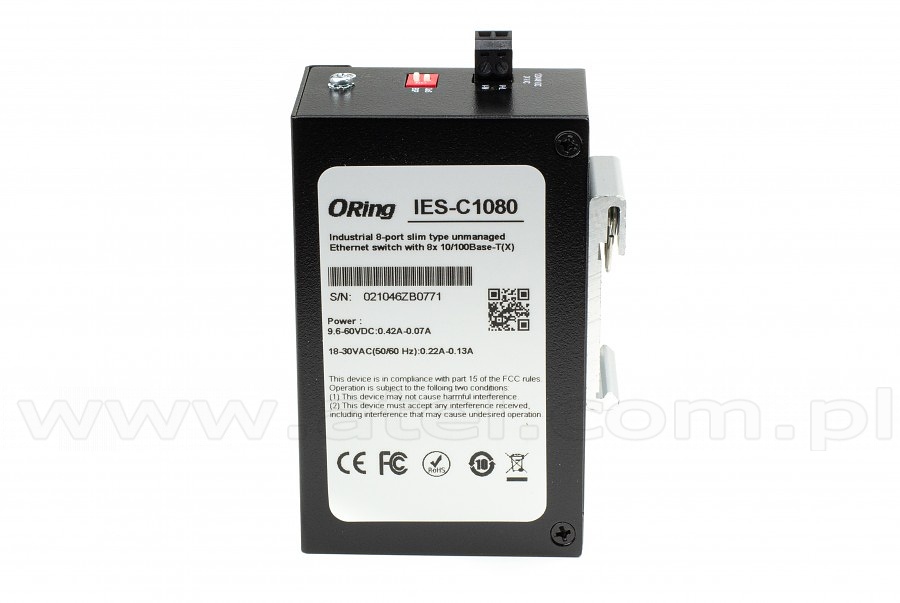

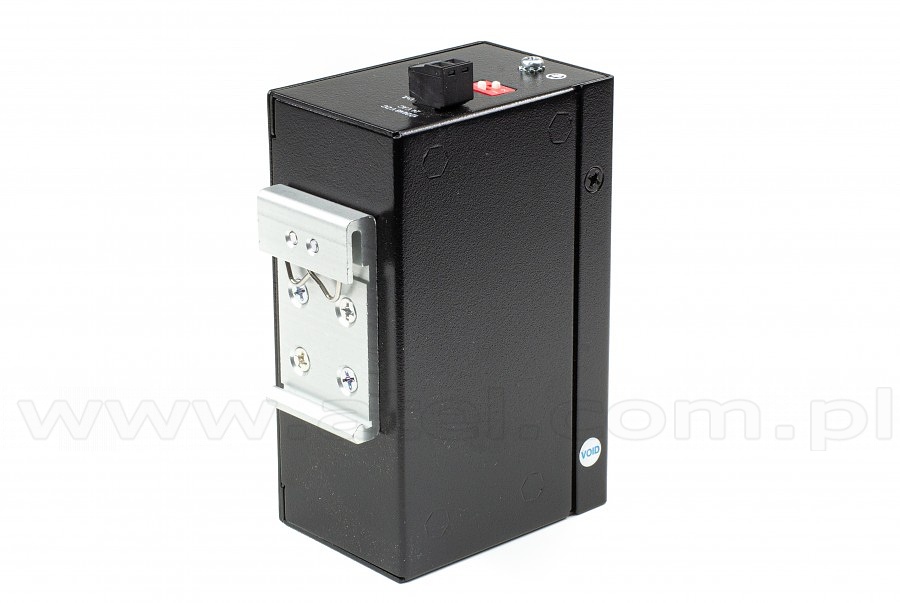

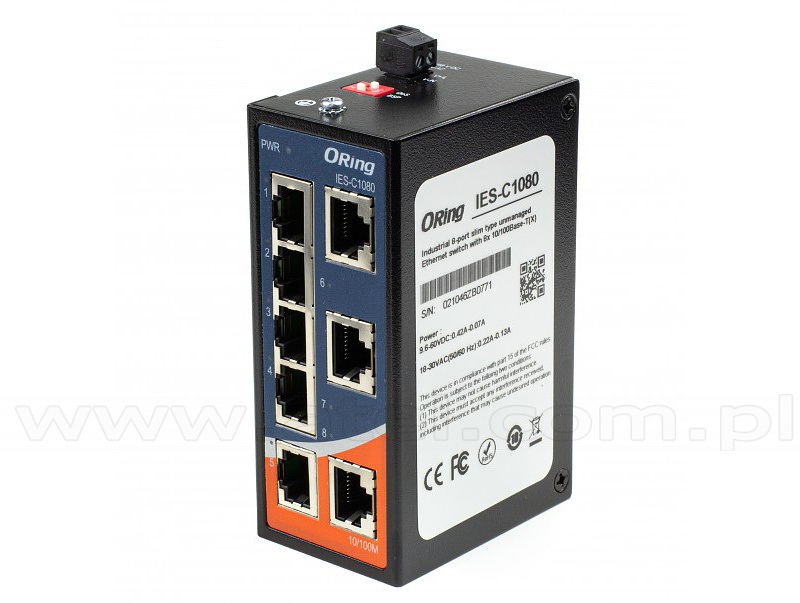

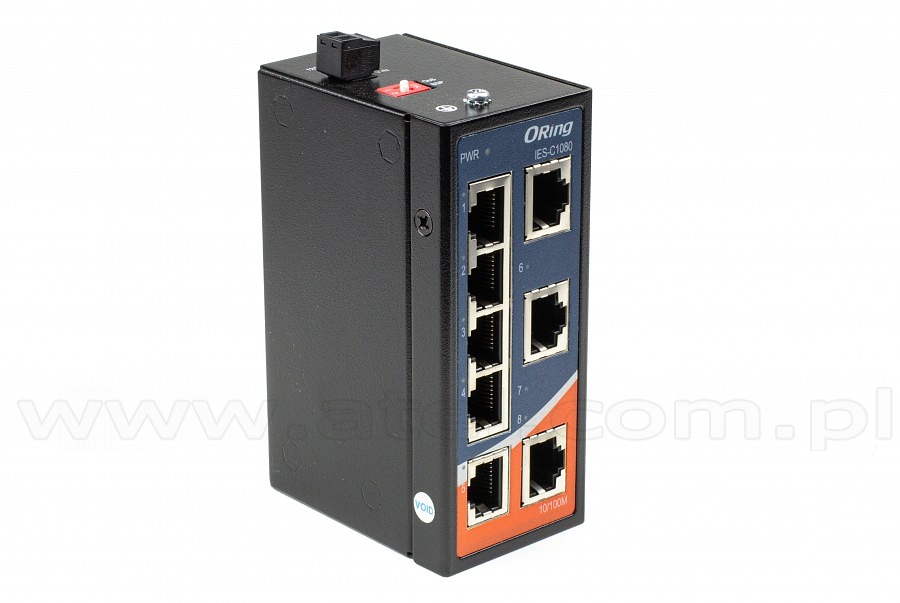

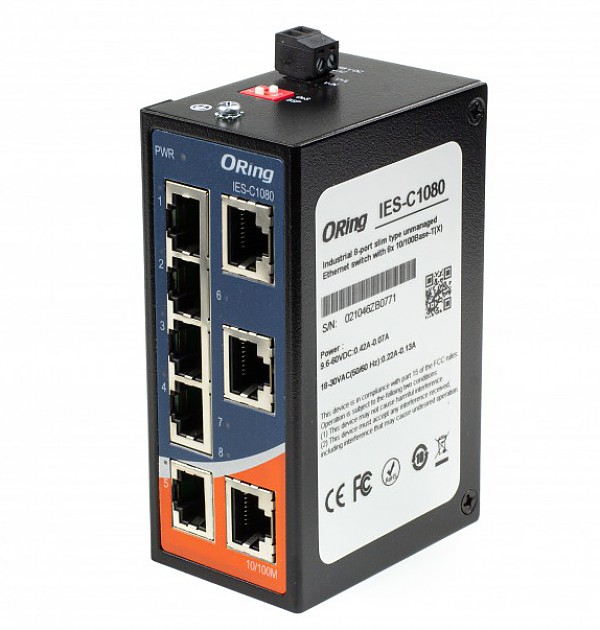

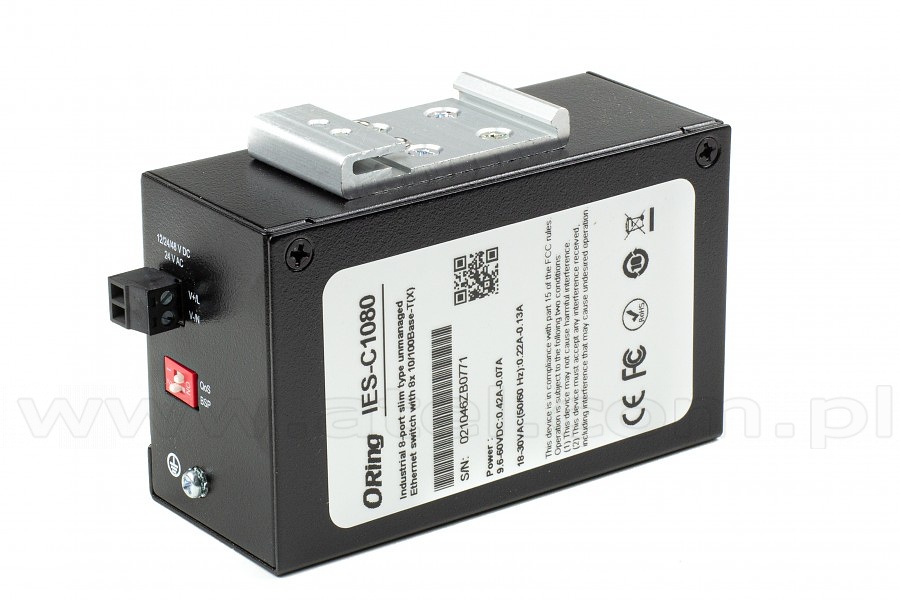

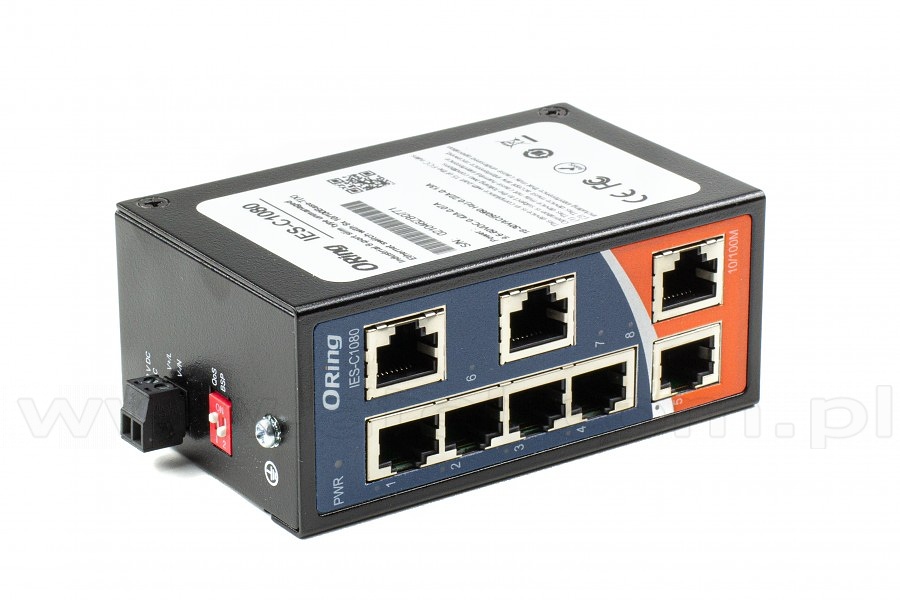

Unmanaged switch, 8x 10/100 RJ-45, slim housing (ORing IES-C1080)

Physical Ports
10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX 8
Technology
Ethernet Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X),
IEEE 802.3x for Flow control
MAC Table 2048 MAC addresses
Processing Store-and-Forward
LED Indicators
Power indicator Green - Power LED x 2
Fault indicator Yellow - Indicate PWR1 or PWR2 failure
10/100TX RJ45 port indicator Green for port Link/Act,
Yellow for Duplex/Collision
Fault contact
Relay Relay output to carry capacity of 1A at 24VDC
Power
Input power Dual DC inputs. 1248VDC on 4-pin terminal block
Power consumption (typical) 3W
Overload current protection present
Reverse polarity protection present on terminal block
Physical Characteristic
Enclosure IP-40
Dimension (W x D x H) 43,5mm x 64mm x 103mm
Environmental
Storage Temperature -4085C (-40185F)
Operating Temperature -4070C (-40158F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950
Warranty
Warranty period 5 years

Net Price: 87,50 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
