#07916
Industrial SwitchesORING NETWORKINGIES-162FX-SS-SC-L

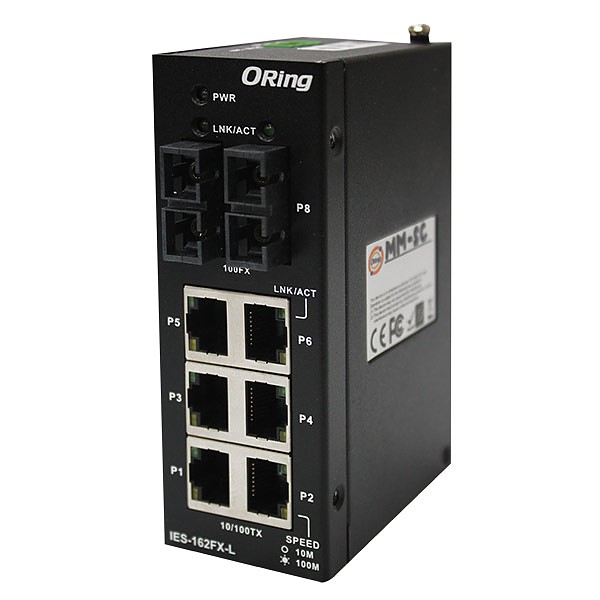

Unmanaged switch, 6x 10/100 RJ-45 + 2x 100 SS SC (ORing IES-162FX-SS-SC-L)

IES-162FX-L series are unmanaged Ethernet switches with 6 x 10/100Base-T(X) and 2 x 100Base-FX ports. With very compact size of housing, you can install IES-162FX-L series easily. In addition, IES-162FX-L series are with rigid IP-30 housing design and can operate under harsh environment. The extended operating temperature range from -20C to 60C is ready and can satisfy most requirement of operation.
Physical Ports
10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX 6
100Base-FX Singlemode ports (30km, 1310nm, SC connector) 2
Technology
Ethernet Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X) and 100BaseFX,
IEEE 802.3x for Flow control
MAC Table 1024 MAC addresses
LED Indicators
Power indicator Green - Power LED x 1
10/100TX RJ45 port indicator Green for port Link/Act,
Amber for speed indicator – Amber for 100Mbps,
off-light for 10Mbps
Fiber port indicator Green for port Link/Act
Power
Input power 10~30VDC on 3-pin terminal block.
Power consumption (typical) 3.6W
Overload current protection present
Reverse polarity protection present
Physical Characteristic
Enclosure IP-30
Dimension (W x D x H) 41mm x 83.98mm x 115mm
Weight 328g
Environmental
Storage Temperature -4085C(-40185F)
Operating Temperature -2060C
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950
Warranty
Warranty period 5 years

* For special orders only
Net Price: 193,00 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
