#06654
Industrial SwitchesORING NETWORKINGIES-1041FX-MM-SC

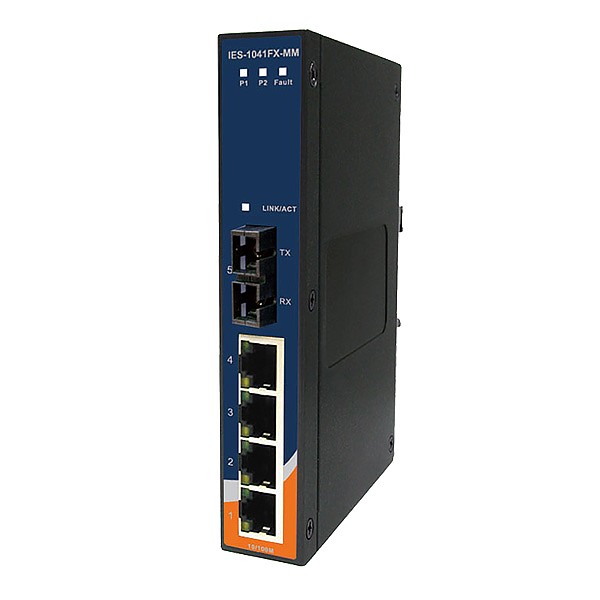

Unmanaged switch, 4x 10/100 RJ-45 + 1x 100 MM SC, slim housing (ORing IES-1041FX-MM-SC)

IES-1041FX/1042FX series are unmanaged Ethernet switches with 4 x 10/100Base-T(X) and 100Base-FX ports. IES-1041FX/1042FX series support redundant power inputs, configurable relay output alarm and rigid IP-30 housing. In addition, the wide operating temperature range from -40 to 70C can satisfy most of operating environment
Physical Ports
10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX 4
100Base-FX Multimode ports (2km, 1310nm, SC connector) 1
Technology
Ethernet Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X) and 100BaseFX,
IEEE 802.3x for Flow control
MAC Table 1024 MAC addresses
Processing Store-and-Forward
LED Indicators
Power indicator Green - Power LED x 2
Fault indicator Yellow - Indicate PWR1 or PWR2 failure
10/100TX RJ45 port indicator Green for port Link/Act,
Yellow for Duplex/Collision
Fiber port indicator Green for port Link/Act,
Yellow for Link
Fault contact
Relay Relay output to carry capacity of 1A at 24VDC
Power
Input power Dual DC inputs. 1248VDC on 6-pin terminal block
Power consumption (typical) 5W
Overload current protection present
Reverse polarity protection present on terminal block
Physical Characteristic
Enclosure IP-30
Dimension (W x D x H) 33mm x 95mm x 144mm
Weight 378g
Environmental
Storage Temperature -4085C (-40185F)
Operating Temperature -4070C (-40158F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950
Warranty
Warranty period 5 years

* For special orders only
Net Price: 147,00 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
