#06658
Industrial Switches › ORING NETWORKING › IDGS-C1042GP+

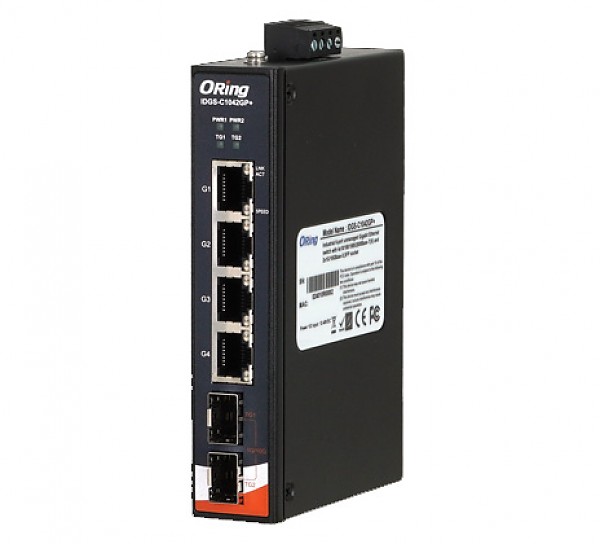

Unmanaged switch, 4x 100/1G/2.5G RJ-45 + 2x1000/10G SFP+ (ORing IDGS-C1042GP+)

IDGS-C1042GP+ is unmanaged Ethernet Switch with 4x10/100/1000/25000Base-T(X) ports with 2x1G/10GBase-X SFP ports
and extended operating temperature range from -40℃ to 75℃ for the harsh environments. Therefore, the switch is one of
the most reliable choices for rolling stock and highly unmanaged Ethernet application.
Physical Ports
10/100/1000/2500 Base-T(X) Ports in RJ45 Auto MDI/MDIX 4
1000/10GBase-X, SFP+ ports 2
Technology
Ethernet Standards IEEE 802.3 for 10Base-T,
IEEE 802.3u for 100Base-TX,
IEEE 802.3ab for 1000Base-T,
IEEE 802.3z for 1000Base-X,
IEEE 802.3bz for 2.5GBaseT,
IEEE 802.3ae for 10G SFP+,
IEEE 802.3x for Flow control
MAC Table 8192 MAC addresses
Processing Store-and-Forward
Switching latency 10 µs
Switching bandwidth 60 Gbps
Power
Input power Dual DC inputs. 12÷48VDC on 4-pin terminal block
Power consumption (typical) 10W
Overload current protection present
Physical Characteristic
Enclosure IP-40
Dimension (W x D x H) 28mm x 88mm x 130mm
Environmental
Storage Temperature -40÷85°C(-40÷185°F)
Operating Temperature -40÷75°C (-14÷163°F)
Operating Humidity 5%÷95% Non-condensing
Regulatory approvals
EMC CE EMC (EN 55035,
EN 55032),
FCC Part 15 B
Shock IEC60068-2-27
Free Fall IEC60068-2-31
Vibration IEC60068-2-6
Safety EN 62368-1 (LVD)
Warranty
Warranty period 5 years
Print to PDF
Technical Support
TAGS: SFP slot
* For special orders only
Net Price: 201,00 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
