#06619
NEW

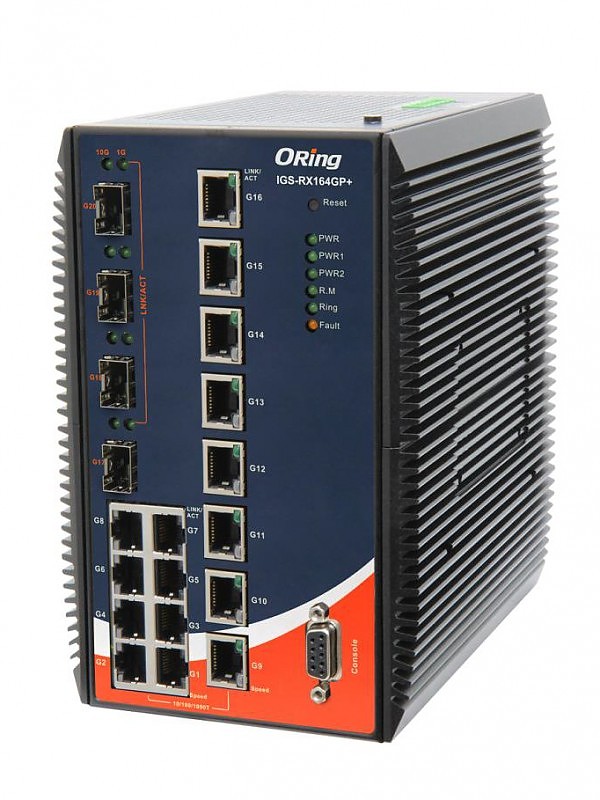

Industrial SwitchesORING NETWORKINGIGS-RX164GP+

Managed switch, L3, 16x 10/1000 RJ-45 + 4x1G/2.5G/10G SFP+, O/Open-Ring <30ms (ORing IGS-RX164GP+)

IGS-RX164GP+ advanced Layer 3 managed redundant ring Ethernet switch with 16x10/100/1000Base-T(X) ports and 4x10GBase-X SFP ports. The IGS-RX164GP+ supports routing protocols such as static routing, RIP v1/v2, OSPF and PIM which are suitable for large scale network environment. The hardware Layer 3 switch is optimized to transmit data as fast as Layer-2 switches. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 30ms) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And support wide operating temperature from -40C to 60C. IGS-RX164GP+ can also be managed centralized and convenient by Open-Vision, as well as the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.
Physical Ports
10/100/1000 Base-T(X) Ports in RJ45 Auto MDI/MDIX 16
1G/2.5G/10 SFP+ Ports 4
RS-232 Serial Console Port RS-232 in RJ45 connector with console cable (115200bps 8 N 1)
Technology
Ethernet Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X) and 100BaseFX,
IEEE 802.3z for 1000Base-X,
IEEE 802.3ab for 1000Base-T,
IEEE 802.3x for Flow control,
IEEE 802.3ad for LACP (Link Aggregation Control Protocol),
IEEE 802.1p for COS (Class of Service),
IEEE 802.1Q for VLAN Tagging,
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
IEEE 802.1x for Authentication,
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Table 16k MAC addresses
Priority Queues 8
Packet Buffer 2MB
Flash Memory 512Mbits
DRAM Size 8Gbits
Jumbo frame Up to 10K Bytes
Processing Store-and-Forward
Switching latency 7 µs
Switching bandwidth 112 Gbps
Max. Number of Available VLANs 4096
Number of VLAN IDs VID 0 to 4095
IGMP multicast groups 128 for each VLAN
Port rate limiting User Define
Security Features Enable/disable ports,
MAC based port securitym Port based network access control (802.1x)m MAC-based authentication(802.1x)m VLAN (802.1Q ) to segregate and secure network traffic,
Radius centralized password management,
SNMPv3 encrypted authentication and access security,
Web and CLI authentication and authorization,
IP source guard,
Https / SSH enhance network security
Software Features Routing protocols – static routing,
RIP v1/v2,
OSPF,
PIM-SM,
PIM-DM,
VRRP,
TSN protocols – 802.1AS,
Qav,
Qat,
STP/RSTP/MSTP (IEEE 802.1D/w/s) Redundant Ring (O-Ring) with recovery time less than 30ms over 250 units,
TOS/Diffserv supported,
Quality of Service (802.1p) for real-time traffic,
VLAN (802.1Q) with VLAN tagging and GVRP supported,
IGMP Snooping for multicast filtering,
Port configuration,
Port status,
Port statistics,
Port monitoring,
Port security
LED Indicators
Power / Ready indicator Green - Ready LED x 3
Ring Master indicator Green - Indicate system operated in O-Ring Master mode
O-Ring indicator Green - Indicate system operated in O-Ring mode
Fault indicator Amber - Indicate unexpected event occurred
10/100/1000Base-T(X) RJ45 port indicator Green for port 1000Mbps Link/Act,
Amber for 10/100Mbps Link/Act
1G/10Gbase-X SFP+ Port Indicator Green LED for Link/Act
Fault contact
Relay Relay output to carry capacity of 1A at 24VDC
Power
Input power Dual DC inputs. 1248VDC on 6-pin terminal block
Power consumption (typical) 23W
Overload current protection present
Reverse polarity protection present
Physical Characteristic
Enclosure IP-30
Dimension (W x D x H) 116.4mm x 170mm x 180mm
Weight 1530 g
Environmental
Storage Temperature -4085C(-40185F)
Operating Temperature -4060C (-14140F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMC CE EMC (EN 55024,
EN 55032),
FCC Part 15 B
EMI EN 55032,
CISPR32,
EN 61000-3-2,
EN 61000-3-3,
FCC Part 15 B class A
EMS EN 55024 (IEC/EN 61000-4-2 (ESD Contact 8KV,
Air 10KV),
IEC/EN 61000-4-3 (RS),IEC/EN 61000-4-4 (EFT Power 2KV,
Single 2KV),
IEC/EN 61000-4-5 (Surge Power 4KV,
RJ45 4KV),
IEC/EN 61000-4-6 (CS),
IEC/EN 61000-4-8(PFMF),
IEC/EN 61000-4-11 (DIP))
Shock IEC60068-2-27
Free Fall IEC60068-2-31
Vibration IEC60068-2-6
Safety EN60950-1
Warranty
Warranty period 5 years

* For special orders only
Net Price: 2 350,00 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
