#06606
Industrial SwitchesORING NETWORKINGIES-3062FX-MM-SC

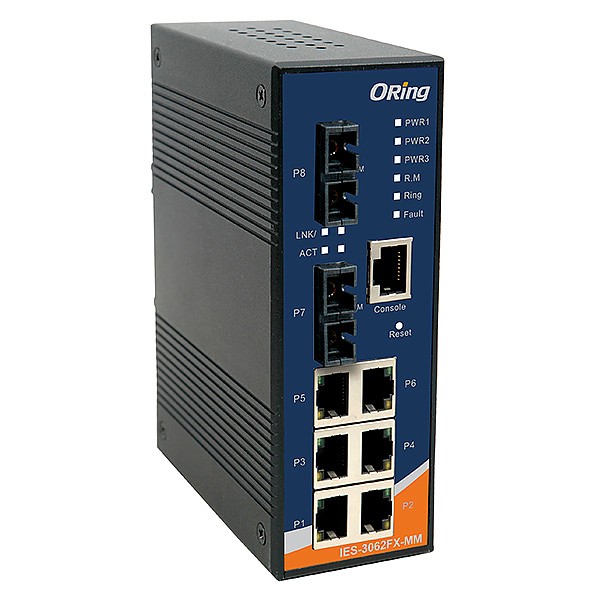

Managed switch, 6x 10/100 RJ-45 + 2x100 MM SC, O/Open-Ring <10ms (ORing IES-3062FX-MM-SC)

IES-3080 / IES-3062 series are managed Redundant Ring Ethernet switches with 6x10/100Base-T(X) and 2x10/100Base-T(X), 100Base-FX, 1000Base-T, 1000Base-SX or 1000Base-LX ports. With complete support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. Another Open-Ring technology is also supported which can applied for other vendor's proprietary ring. IES-3080 / IES-3062 series can be managed centralized and convenient by a powerful windows utility — Open-Vision. In addition, the wide operating temperature range from -40C to 70C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choice for highly-managed Fiber Ethernet application.
Physical Ports
10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX 6
100Base-FX Multimode ports (2km, 1310nm, SC connector) 2
RS-232 Serial Console Port RS-232 in RJ45 connector with console cable (9600bps 8 N 1)
Technology
Ethernet Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X) and 100BaseFX,
IEEE 802.3x for Flow control,
IEEE 802.1D for STP (Spanning Tree Protocol),
IEEE 802.1p for COS (Class of Service),
IEEE 802.1Q for VLAN Tagging,
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
IEEE 802.1X for Authentication,
IEEE 802.3ad for LACP (Link Aggregation Control Protocol),
IEEE 1588 for Precise Time Protocol Client
MAC Table 8192 MAC addresses
Priority Queues 4
Processing Store-and-Forward
Switching latency 7 µs
Switching bandwidth 5.6 Gbps
Max. Number of Available VLANs 256
Number of VLAN IDs VID 1 to 4094
IGMP multicast groups 256
Port rate limiting User Define
Security Features Enable/disable ports,
MAC based port security,
Port based network access control (802.1x),
VLAN (802.1q ) to segregate and secure network traffic,
Radius centralized password management,
SNMPv3 encrypted authentication and access security
Software Features STP/RSTP (IEEE 802.1D/w),
Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units,
TOS/Diffserv supported,
Quality of Service (802.1p) for real-time traffic,
VLAN (802.1Q) with VLAN tagging and GVRP supported,
IGMP Snooping for multicast filtering,
Port configuration,
Port status,
Port statistics,
Port monitoring,
Port security
Network Redundancy STP,
RSTP,
O-Ring,
Open-Ring,
O-RSTP
LED Indicators
Power / Ready indicator Green - Ready LED x 3
Ring Master indicator Green - Flashing to indicate system operated in O-Ring Master mode
O-Ring indicator Green - Indicate system operated in O-Ring mode
Fault indicator Yellow - Indicate unexpected event occurred
10/100TX RJ45 port indicator Green for port Link/Act,
Yellow for Duplex/Collision
Fiber port indicator Green for port Link/Act,
Yellow for Link
Fault contact
Relay Relay output to carry capacity of 1A at 24VDC
Power
Input power Triple DC inputs. 1248VDC on 7-pin terminal block,
1245VDC on power jack
Power consumption (typical) 9W
Overload current protection present
Reverse polarity protection present on terminal block
Physical Characteristic
Enclosure IP-30
Dimension (W x D x H) 52mm x 106mm x 144mm
Weight 735g
Environmental
Storage Temperature -4085C(-40185F)
Operating Temperature -4070C (-40158F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950
Warranty
Warranty period 5 years

* For special orders only
Net Price: 487,00 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
