#06588
Industrial SwitchesORING NETWORKINGIES-2042FX-SS-SC

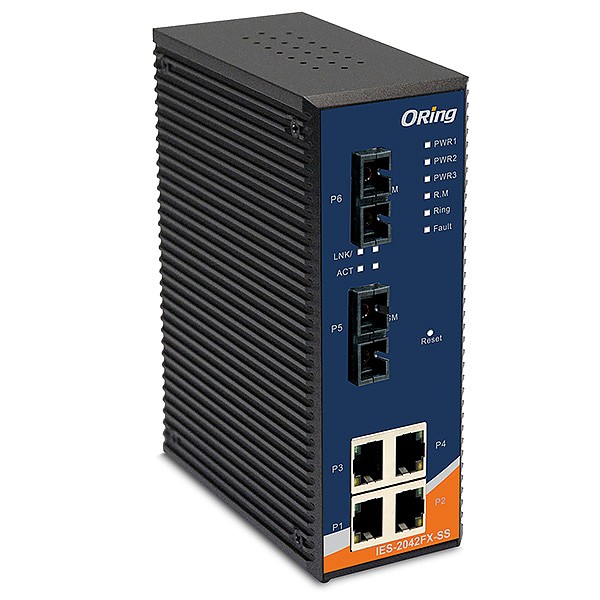

Smart switch, 4x 10/100 RJ-45 + 2x 100 SM SC, O-Ring <10ms (ORing IES-2042FX-SS-SC)

IES-2060/2042FX series are lite-Managed Redundant Ring Ethernet switches with 6x10/100Base-T(X) ports or 4x10/100Base-T(X) and 2x100Base-FX ports. With complete support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring, O-Chain and STP/RSTP (IEEE802.1w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. IES-2060/2042FX series can be managed centralized and convenient by a powerful windows utility — Open-Vision. In addition, the wide operating temperature range from -40°C to 70°C can satisfy most of operating environment. Therefore, these switch is one of the most reliable choice for easy managed Fiber Ethernet application.
Physical Ports
10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX 4
100Base-FX Singlemode ports (30km, 1550nm, SC connector) 2
Technology
Ethernet Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X) and 100BaseFX,
IEEE 802.3x for Flow control,
IEEE 802.1D for STP (Spanning Tree Protocol),
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
IEEE 802.3ad for LACP (Link Aggregation Control Protocol)
MAC Table 2048 MAC addresses
Priority Queues 4
Processing Store-and-Forward
Switching bandwidth 1.0 Gbps
VLAN Port Based
Security Features Enable/disable ports,
VLAN to segregate and secure network traffic
Software Features STP/RSTP (IEEE 802.1D/w),
Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units,
Port configuration,
Port status,
Port statistics,
Port monitoring,
Port security
Network Redundancy STP,
RSTP,
O-Ring
LED Indicators
Power / Ready indicator Green - Ready LED x 3
Ring Master indicator Green - Flashing to indicate system operated in O-Ring Master mode
O-Ring indicator Green - Indicate system operated in O-Ring mode
Fault indicator Yellow - Indicate unexpected event occurred
10/100TX RJ45 port indicator Green for port Link/Act,
Yellow for Duplex/Collision
Fiber port indicator Green for port Link/Act,
Yellow for Link
Fault contact
Relay Relay output to carry capacity of 1A at 24VDC
Power
Input power Triple DC inputs. 12÷48VDC on 7-pin terminal block,
12÷45VDC on power jack
Power consumption (typical) 7W
Overload current protection present
Reverse polarity protection present on terminal block
Physical Characteristic
Enclosure IP-30
Dimension (W x D x H) 52mm x 106mm x 144mm
Weight 670g
Environmental
Storage Temperature -40÷85°C(-40÷185°F)
Operating Temperature -40÷70°C (-40÷158°F)
Operating Humidity 5%÷95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
EN61000-4-8,
EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950
Warranty
Warranty period 5 years

Net Price: 457,00 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
