#09192
Standard ACTP-LINKMR30G

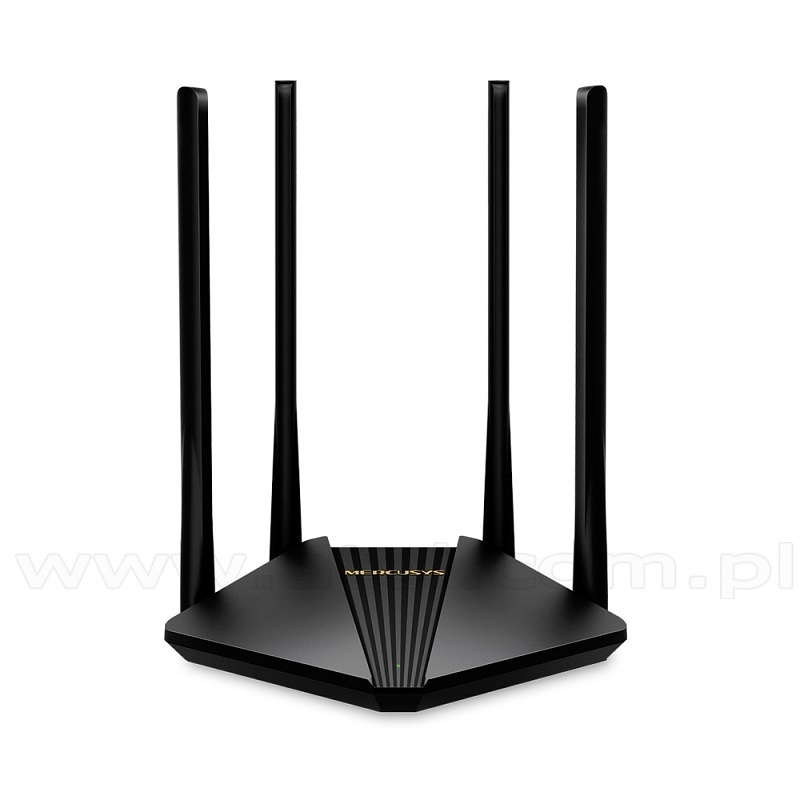

1200Mbps Wireless Router Dual-band AC1200 (TP-Link Mercusys MR30G)

  • AC1200 Gigabit WiFi – Enjoy home entertainment without any lag, reaching speeds up to 1.2 Gbps (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)
  • Broader Coverage – 4 high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
  • Full Gigabit Ports – Make full use of your internet access and transfer data at dizzying speeds for peak performance
  • Higher Network Efficiency – MU-MIMO technology allows MR30G to communicate with multiple devices at the same time, increasing WiFi throughput for each device
  • Easily Manage Your Home Network – Varied software functions such as Parental Controls, QoS, and Guest Network for safety and effectiveness
  • IPTV Supported – Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming

-IPv6 Supported – Allows you to both enjoy the IPv6 services provided by your ISP and visit IPv6 websites

HARDWARE FEATURES:
Standards and Protocols IEEE 802.11ac/n/a 5GHz,
IEEE 802.11b/g/n 2.4GHz

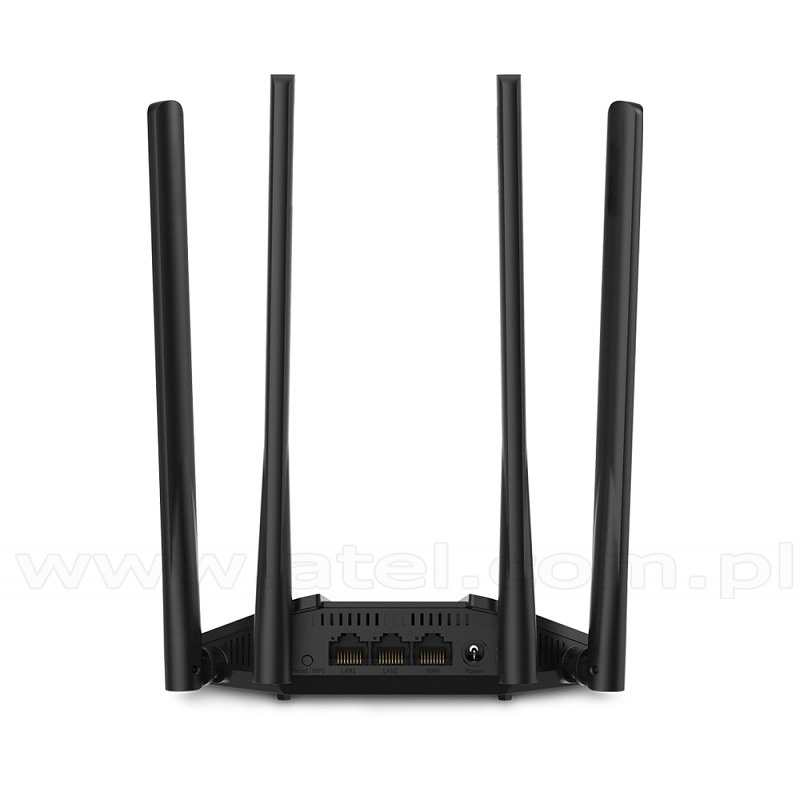

Interface 2 10/100/1000Mbps LAN Ports,
1 10/100/1000Mbps WAN Port,
Button WPS/Reset Button
Dimensions (W X D X H) 6.3 5.0 1.5 in (159.7 125.9 37.1 mm)
Antenna 4 Fixed Omni Directional Antennas (5dBi)
WIRELESS FEATURES:
Frequency 2.4GHz & 5GHz
Signal Rate 5GHz Up to 867Mbps,
2.4GHz Up to 300Mbps
EIRP <20dBm(EIRP)
Wireless Functions Enable/Disable Wireless Radio,
Wireless Statistics
Wireless Security WPA-PSK / WPA2-PSK
SOFTWARE FEATURES:
WAN Type Dynamic IP/Static IP/PPPoE/,
PPTP (Dual Access)/L2TP (Dual Access)
Management Access Control,
Local Management,
Remote Management
DHCP Server
Port Forwarding Virtual Server,
UPnP,
DMZ
Firewall Security IP and MAC Address Binding
Protocols IPv4,
IPv6
Guest Network 2.4GHz guest network 1, 5GHz guest network 1
OTHERS:
Package Contents MR30G,
Power supply unit,
Quick Installation Guide,
Ethernet Cable

* For special orders only
Net Price: 26,50 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
