#05353
Standard ACUBIQUITIUAP-nanoHD

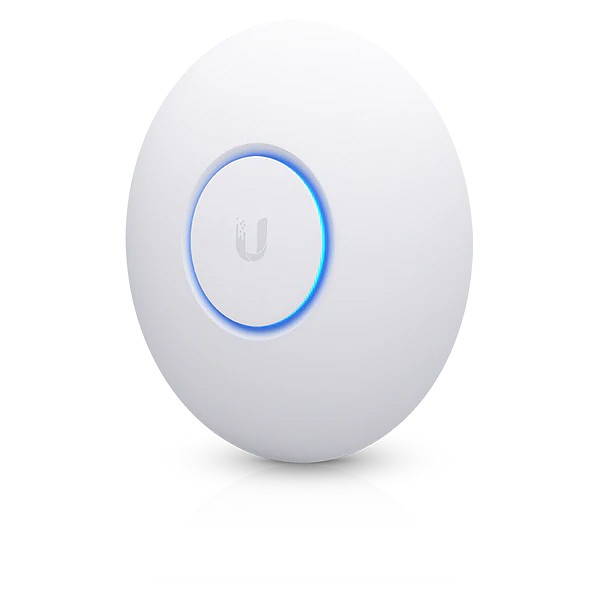

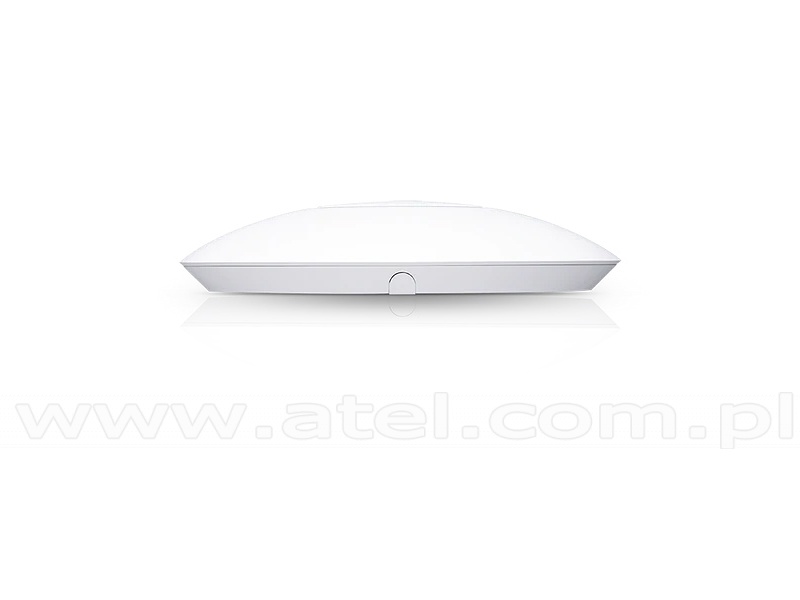

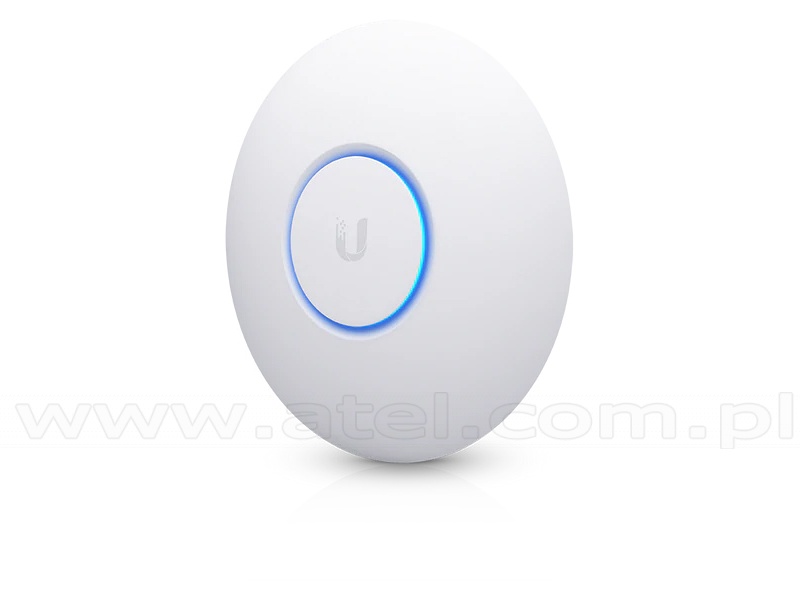

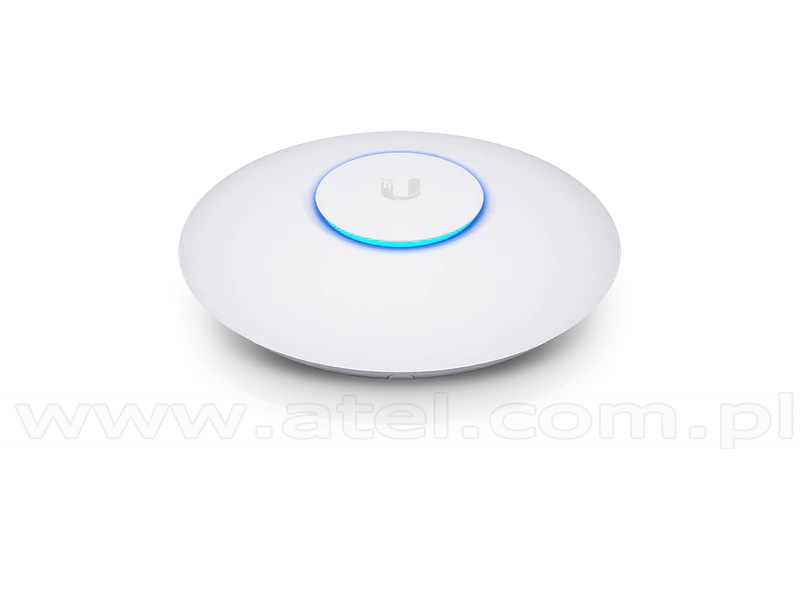

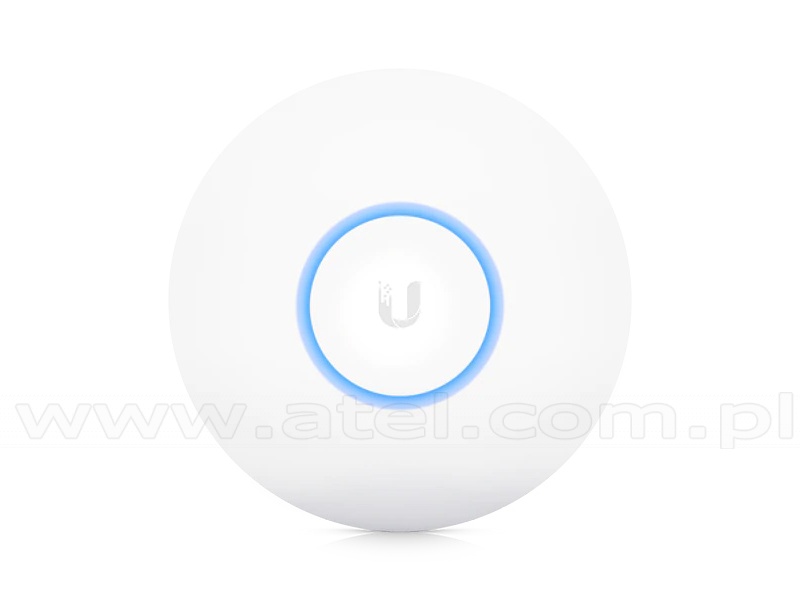

Wireless Access Point UniFi UAP-nanoHD (Ubiquiti UAP-nanoHD)

Dual-band, 802.11ac Wave 2 access point that can support over 200 clients with its 2+ Gbps aggregate throughput rate.

The Access Point nanoHD (UAP nanoHD) is a compact, dual-band access point that can reach a 2+ Gbps aggregate throughput rate with its 5 GHz (4x4 MU-MIMO) and 2.4 GHz (2x2 MIMO) bands. The UAP nanoHD can also support over 200 concurrently connected clients while maintaining an even, reliable wireless experience across your entire network. With its elegant, nano-sized design, this access point can be staged virtually anywhere indoors where you'd like to enhance your wireless speed and performance. Built for plug-and-play simplicity, the UAP nanoHD can be set up in minutes and fully managed with the UniFi Network web application or mobile app.

Features:

  • Four-stream, 802.11ac Wave 2 WiFi technology
  • 5 GHz (4x4 MU-MIMO) band with a 1.733 Gbps throughput rate
  • 2.4 GHz (2x2 MIMO) band with a 300 Mbps throughput rate
  • 200+ concurrent client capacity
  • Powered by 802.3af PoE (PoE injector included with single pack)

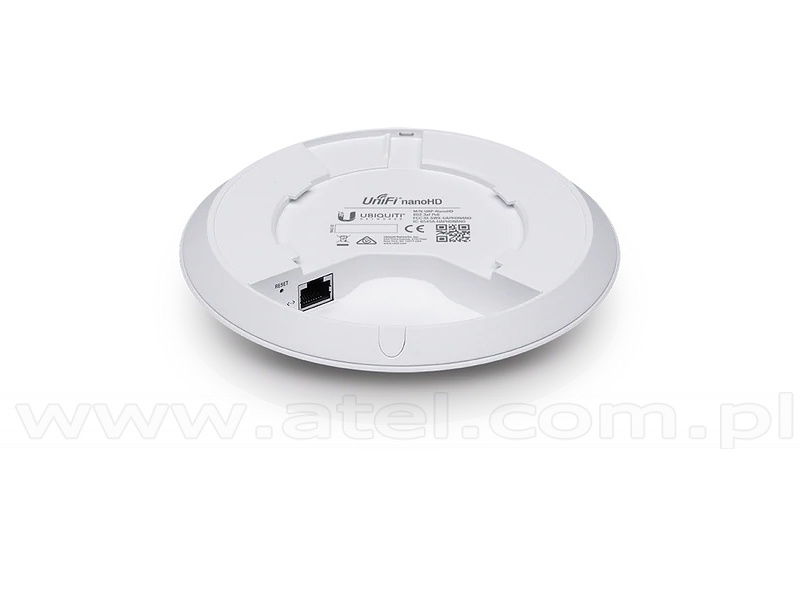

Networking Interface (Mbps) 1 x 10/100/1000 Ethernet Ports
Buttons Reset
Antennas 2.4 GHz - (2) Single-Port,
Single-Polarity Antennas,
2.8 dBi each (Supports 2x2 MIMO),
5 GHz - (2) Single-Port,
Dual-Polarity Antennas,
3 dBi each (Supports 4x4 MIMO)
Wi-Fi Standards 802.11 a/b/g/n/r/k/v/ac/ac-wave2
Power Method 802.3af PoE,
UniFi Switch (PoE)
Maximum Power Consumption 10.5W
Maximum TX Power 2.4 GHz - 23 dBm,
5 GHz - 26 dBm
BSSID 8 per Radio
Dimensions 160 x 160 x 32.65 mm
Weight 300 g (315 g with Mounting Kits)
Power Save Supported
Wireless Security WEP,
WPA-PSK,
WPA-Enterprise (WPA/WPA2,
TKIP/AES),
802.11w/PMF
Certifications CE,
FCC,
IC
Mounting Wall/Ceiling (Kits Included)
Operating Temperature -10 70 C
Operating Humidity 5 95% Noncondensing
Advanced Traffic Management
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest traffic isolation Supported
WMM Voice,
Video,
Best Effort,
and Background
Concurrent Clients 200+
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23,
HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 ‑ MCS9 NSS1/2/3/4,
VHT 20/40/80),
58 Mbps to 1.7 Gbps (MCS0 ‑ MCS9 NSS1/2,
VHT 160)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps

TAGS: PoE, UniFi
Net Price: 173,00 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
