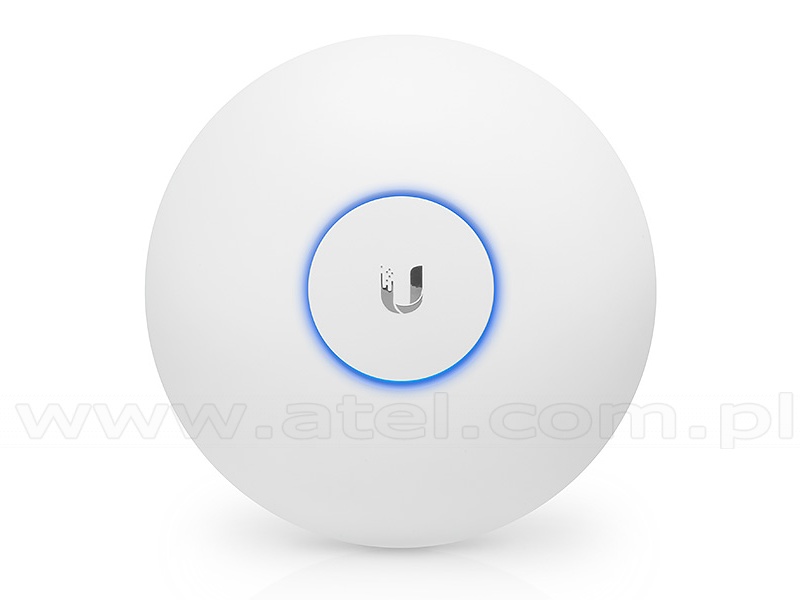

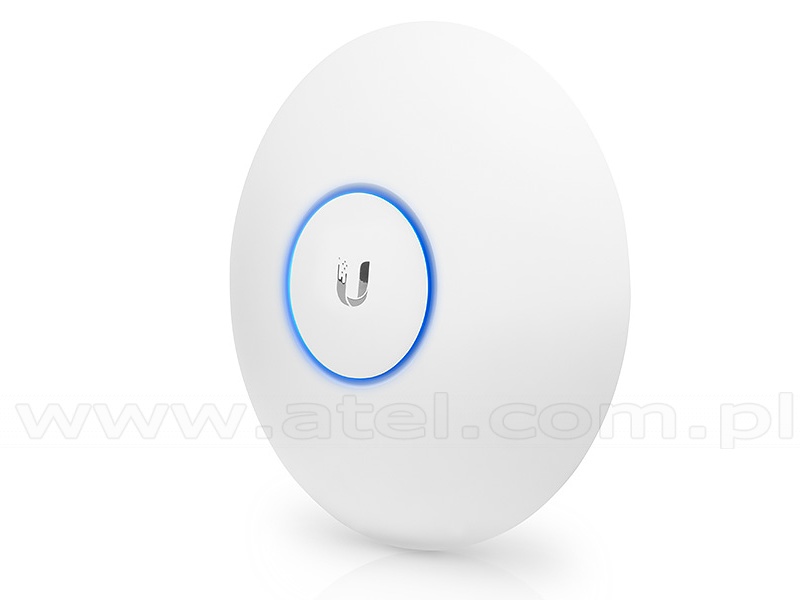

Wireless Access Point UniFi UAP AC LR (Ubiquiti UAP-AC-LR)

Ideal for long-range deployments, the UniFi AC LR AP offers simultaneous, dual-band operation with 3x3 MIMO in the 2.4 GHz band and 2x2 MIMO in the 5 GHz band.
The innovative antenna design provides a long-range, symmetrical-link coverage area, and the antenna gain of the UniFi AC LR AP performs better than one-way, high
transmit power does for connecting distant clients.

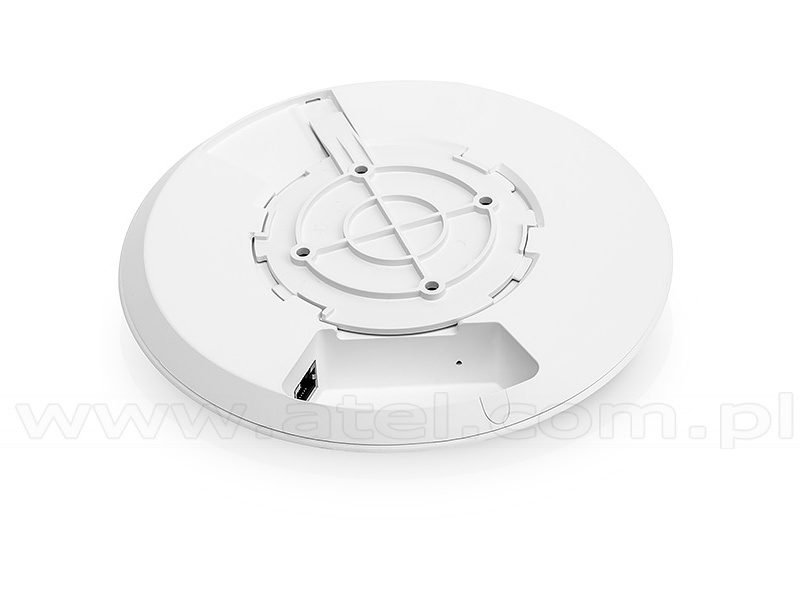

Networking Interface (Mbps) 1 x 10/100/1000 Ethernet Ports
Buttons Reset
Antennas (1) Dual-Band Antenna,
2.4 GHz- 3 dBi,
5 GHz- 3 dBi
Wi-Fi Standards 802.11 a/b/g/n/ac
Power Method Passive Power over Ethernet (24V),
802.3af Supported
Power Supply 24V,
0.5A PoE Adapter (Included)
Maximum Power Consumption 6.5 W
Maximum TX Power 2.4 GHz - 30 dBm,
5 GHz - 22 dBm
BSSID Up to Four Per Radio

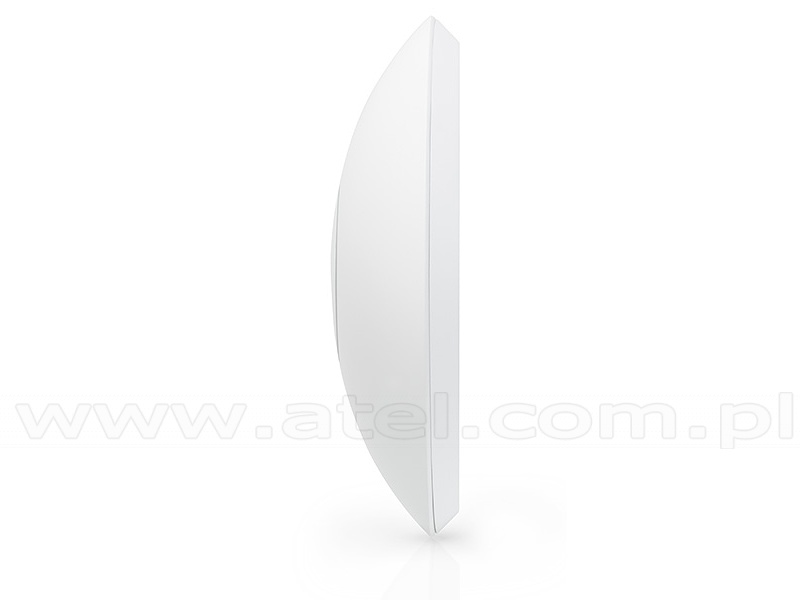

Dimensions 175.7 x 175.7 x 43.2 mm (6.92 x 6.92 x 1.70")
Weight 240 g (315 g with Mounting Kits)
Power Save Supported
Wireless Security WEP,
WPA-Enterprise (WPA/WPA2,
Certifications CE,
Mounting Wall/Ceiling (Kits Included)
Operating Temperature -10 70 C
Operating Humidity 5 95% Condensing
Advanced Traffic Management
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest traffic isolation Supported
WMM Voice,
Best Effort,
and Background
Concurrent Clients 200+
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 450 Mbps (MCS0 - MCS23,
HT 20/40)
802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2,
VHT 20/40/80)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Manufacturer Ubiquiti

TAGS: PoE, UniFi
* For special orders only
Net Price: 99,50 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
