#09047
Standard ACTP-LINKCPE710

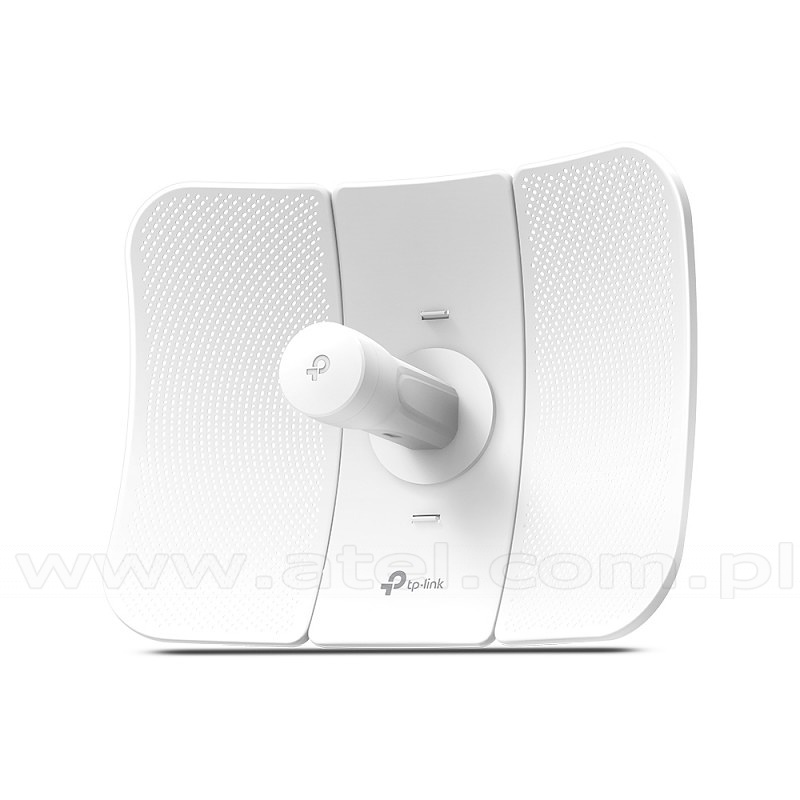

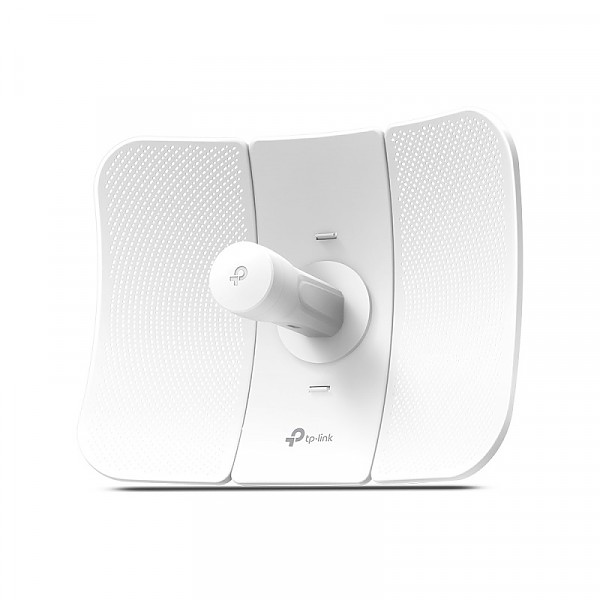

867Mbps Wireless access point, 5GHz (TP-LINK CPE710)

  • 802.11ac for up to 867Mbps on 5GHz wireless data rate
  • 23dBi high-gain directional 22 MIMO, ideal for long-distance application
  • Excellent beam directivity, improved latency and noise cancellation
  • Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
  • Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
  • Pharos Control gives administrators a free, centralized management system
  • Passive PoE supports to allow flexible deployment and convenient installation
Processor Qualcomm 750 MHz,
MIPS 74Kc
Memory 128 MB DDR2 RAM,
16 MB Flash
Standards IEEE 802.11a,
IEEE 802.11n,
IEEE 802.11ac
Ports 1 10/100/1000Mbps Shielded Ethernet Port (LAN0, Passive PoE in),
1 Reset Button
Wireless Configurations Pharos MAXtream TDMA Technology,
802.11a/n Modes,
Selectable Channel Width 5/10/20/40MHz,
Automatic Channel Selection,
Transmission Power Control,
Dynamic Frequency Selection (DFS),
WDS Enable/Disable,
SSID Broadcast Enable/Disable,
Multi-SSID with VLAN Tagging (AP mode only),
Distance/ACK Timeout Setting,
Wireless MAC Address Filter
Security WPA/WPA2,
WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
64/128/152-bit WEP Encryption
Wireless Advanced Beacon Interval/RTS Threshold/Fragmentation,
Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Management Discovery and Remote Management via Pharos Control application,
HTTP/HTTPS Web-based management,
System Log,
SNMP Agent(v2c),
Ping Watch Dog,
Dynamic DDNS,
SSH Server
System Tools Wireless Signal Quality Indicators - Signal Strength/Noise/Transmit CCQ/CPU/Memory,
Monitors - Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP,
Spectrum Analyzer,
Speed Test,
Ping,
Traceroute
Signal Rate Up to 300Mbps (40MHz, Dynamic),
Up to 144.4Mbps (20MHz, Dynamic),
Up to 72.2Mbps (10MHz, Dynamic),
Up to 36.1Mbps (5MHz, Dynamic)
Receiver sensitivity 802.11a 54M@ -75dBm 48M@ -76dBm 36M@ -83dBm 6-24M@ -95dBm,
802.11n MCS15 -73dBm,
MCS14 -74dBm,
MCS13 -76dBm,
MCS12 -80dBm,
MCS11 -83dBm,
MCS10 -88dBm,
MCS9 -90dBm,
MCS8 -93dBm,
MCS7 -73dBm,
MCS6 -74dBm,
MCS5 -76dBm,
MCS4 -80dBm,
MCS3 -83dBm,
MCS2 -88dBm,
MCS1 -90dBm,
MCS0 -93dBm
Antenna 23 dBi
Beam width 9 (Azimuth)/7 (Elevation)
Dimensions 366 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.)
Power Supply Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins),
Voltage range 16-27VDC
Protection 15KV ESD Protection,
6000V Lightning Protection
Enclosure Outdoor ASA stabilized plastic material,
IP65 water and dust proof design
Package Contents Outdoor Wireless CPE,
24V 0.5A Passive PoE Adapter,
Pole Mounting Straps,
AC Power Cord,
Installation Guide
Operating temperatures -40C 70C
System Requirements Microsoft Windows 98SE,
NT,
2000,
XP,
Vista™ or Windows 7/8/10,
MAC OS,
NetWare,
UNIX or Linux.
Certificates CE,
FCC,
RoHS,
IP65,
IC
Manufacturer Tp-Link

TAGS: PoE
* For special orders only
Net Price: 75,60 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
