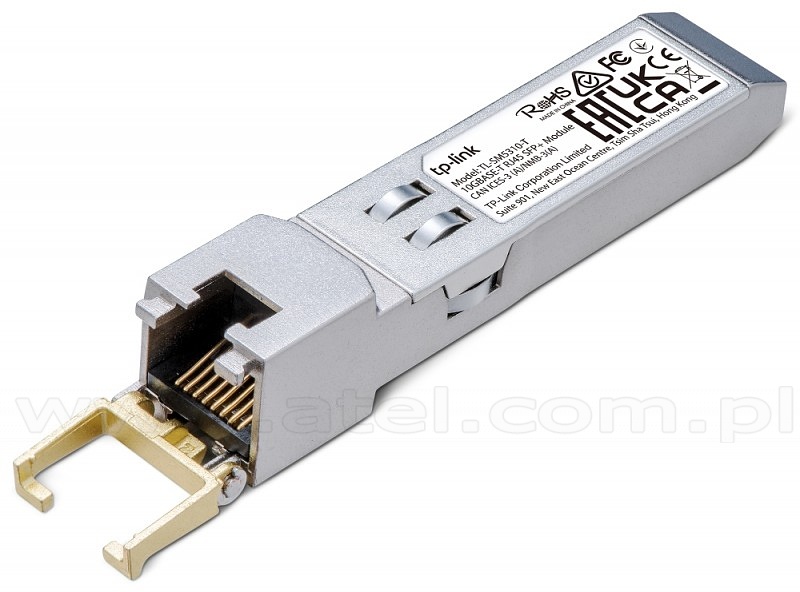

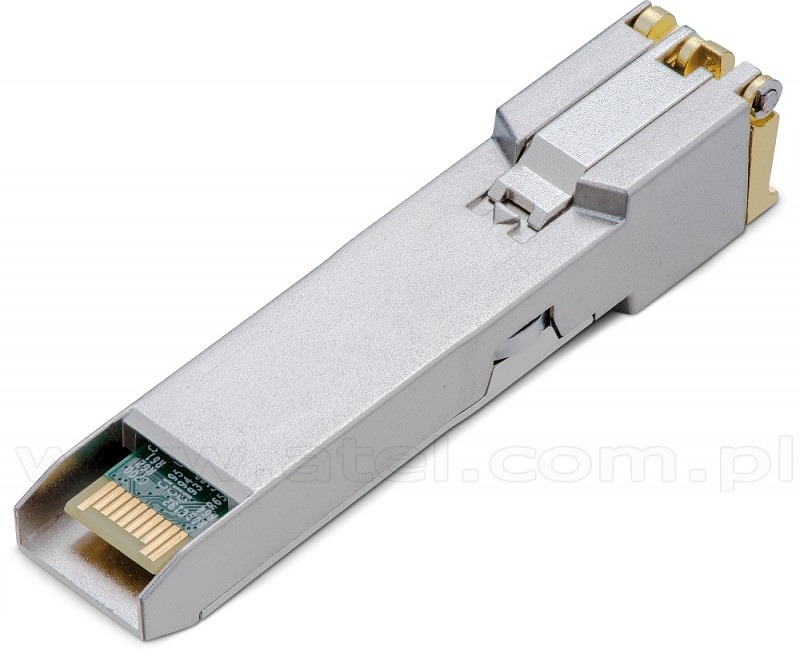

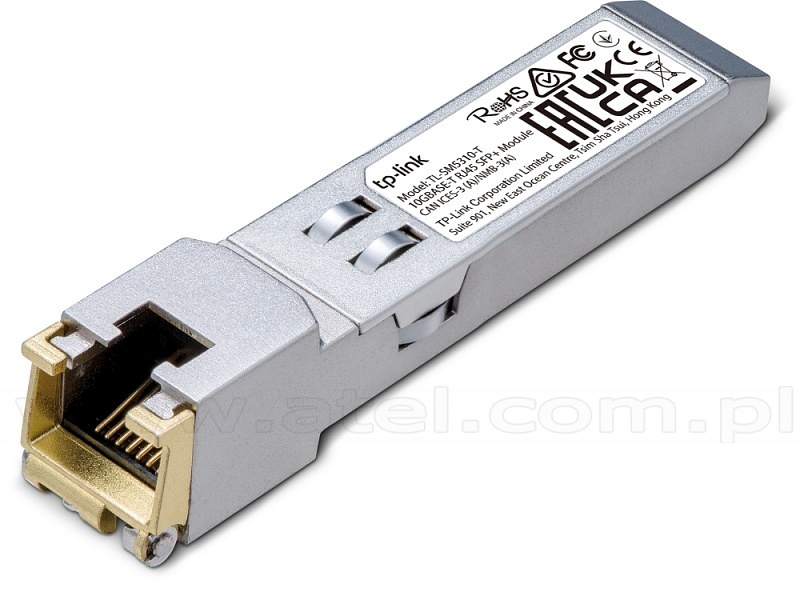

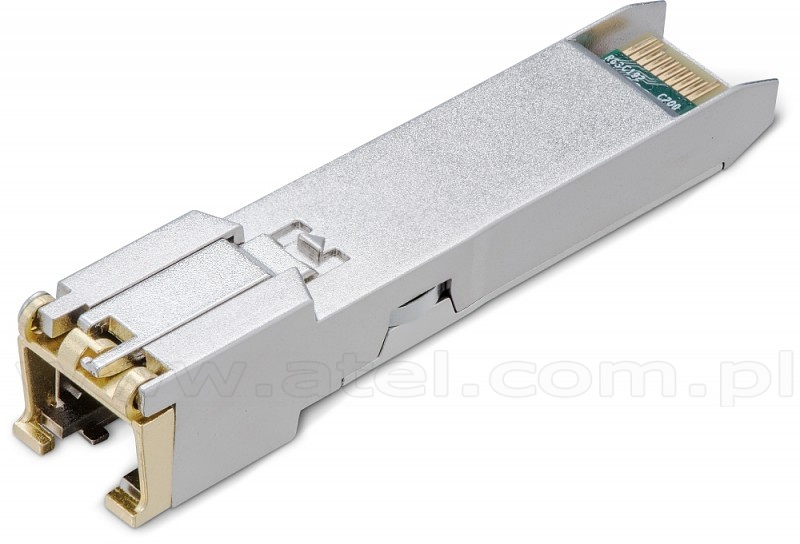

Module, SFP+ 10G RJ-45 (TP-Link TL-SM5310-T)
The module enables transmission of up to 10G using a common copper connection with RJ45 plugs.
| Port | 1x 10G/5G/2.5G/1G RJ-45 |
|---|---|
| Max. distance | up to 30m@10G (cat6a cable), up to 100m@5G/2.5G (cat5e cable), up to 100m@1G (cat5e cable) |
| Hot Swappable | Yes |
| Cable type | copper patch cable |
| Temperature range | 0°C÷70°C |
| Module type | SFP+ |
| Compatibilty | 10GBase-T, 5GBase-T, 2.5GBase-T, 1000Base-T |
| Data Rate | 10.3 Gbps |
| Safety & Emission | FCC, CE, RoHS |
| Manufacturer | TP-Link |
1.0-2000px-4_large_20220218021547k.jpg?1659529809)
1.0-2000px-2_large_20220218021603y.jpg?1659529810)
1.0-2000px-3_large_20220218021619d.jpg?1659529811)
Net Price: 38,50 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
