Transporter EN50155 DevicesORING NETWORKINGTES-1080-M12-BP2

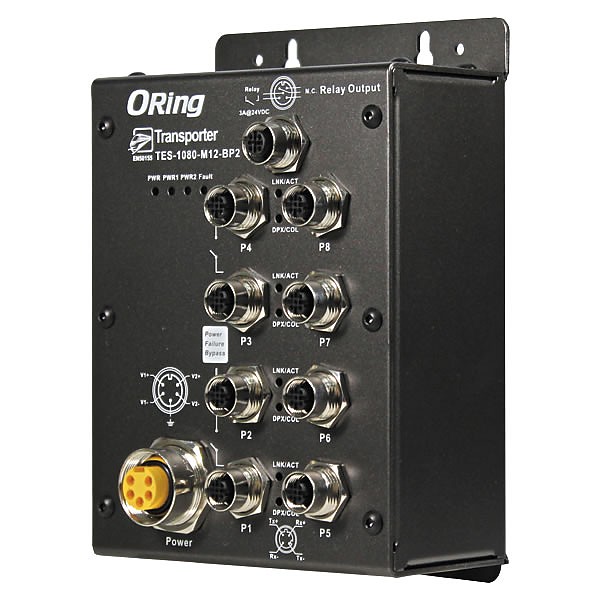

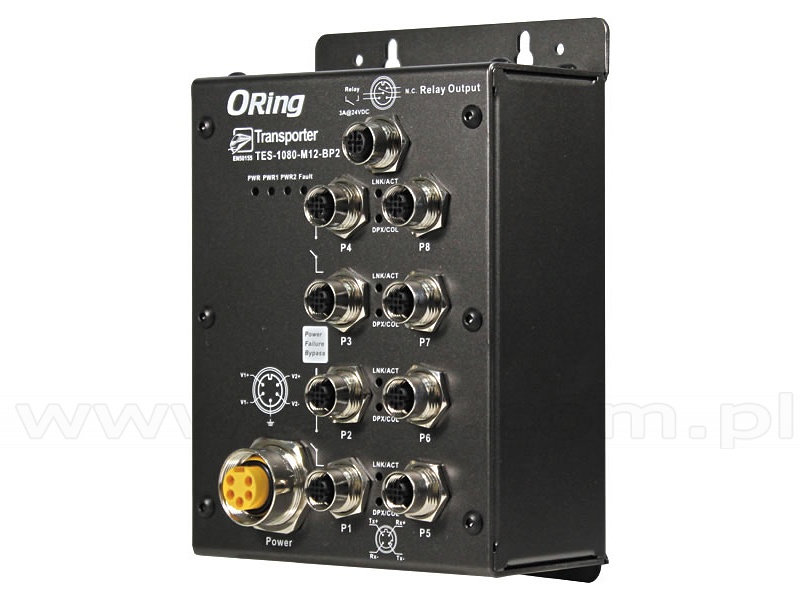

Unmanaged switch, 8x 10/100 M12 Bypass, (ORing TES-1080-M12-BP2)

ORing’s TransporterTM series Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway. The TES-1080-M12-BP2, which is compliant with the EN50155 standard, is an unmanaged Ethernet switch with 8x10/100Base-T(X) ports (4 of these ports also double as 2 sets of bypass ports).
TES-1080-M12-BP2 is constructed of a rugged aluminum case and designed with Ethernet ports (M12 type connector), which provide a dust-tight connection. TES-1080-M12-BP2 EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock.
TES-1080-M12-BP2 includes 2 sets of bypass ports that protect the network from failures and Network maintenance by ensuring network integrity during power loss. Each set of these bypass ports includes Network ports and Monitor ports.
The Network ports are used for connection to main-network connections and provide protection mechanism, and the Monitor ports are used for down-linking local networking device. When the power is on, the operating mode of the Bypass ports is set to Normal, and the local networking device is connected with main-network. When power failure occurs, the Bypass ports are swiftly set to bypass mode to isolate the main-network from the local networking device.
In addition, the wide operating temperature range from -40C to 70C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for rolling stock Ethernet application.
Physical Ports
10/100 Base-T(X) Bypass Ethernet Auto MDI/MDIX 8 (Built-in 2 sets of bypass ports)
Connector Type Waterproof M12
Ethernet Standards IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X),
IEEE 802.3x for Flow control
MAC Table 8192 MAC addresses
Processing Store-and-Forward
LED Indicators
Power Indicator Green - Power LED x 2,
Indicates power input
Ready / Ring Master Indicator Amber LED - Light on for system ready / Blinking for system ready and Ring master mode - Light off for system failed
O-Ring Indicator Amber - Indicates port operating in O-Ring mode (per port)
10/100TX Port Indicator Green for port Link/Act. (per port)
Input power Dual 12~48VDC
Connector Type Waterproof M12
Power consumption (typical) 5W
Overload current protection present
Reverse polarity protection present
Physical Characteristic
Dimension (W x D x H) 125mm x 65mm x 196mm
Weight 896 g
Storage Temperature -4085C (-40185F)
Operating Temperature -4070C (-40158F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A,
EN50155 (EN50121-3-2,
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
Warranty period 5 years

TAGS: EN50155, M12
* For special orders only
Net Price: CallCall
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
