#06501
Transporter EN50155 DevicesORING NETWORKINGTRGPS-9084GT-M12X-BP2-MV

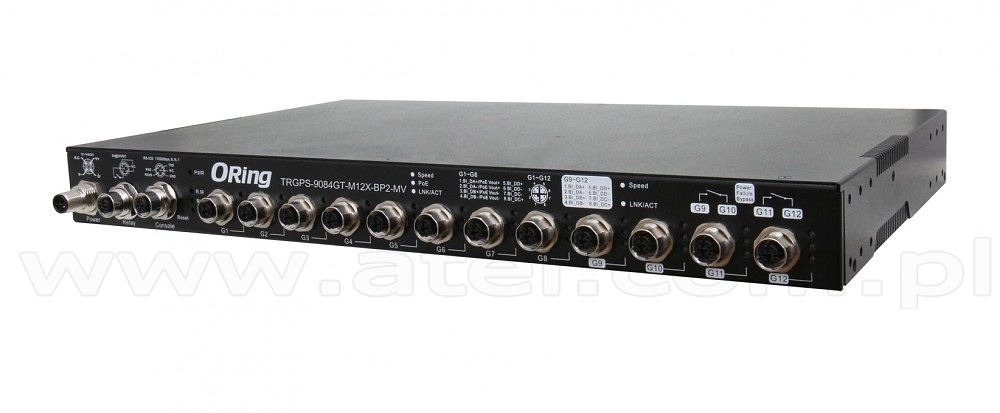

Managed switch, 8x 10/100/1000 M12 PoE + 4x 10/100/1000 M12, Bypass (ORing TRGPS-9084GT-M12X-BP2-MV)

TRGPS-9084GT-M12X-BP2-MV is a Gigabit managed redundant ring Ethernet switch with 8x10/100/1000Base-T(X) P.S.E. and 4x10/100/1000Base-T(X), M12 connector and 2xbypass included. These switches support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. And TRGPS-9084GT-M12X-BP2-MV supports wide operating temperature from -40C to 75C. TRGPS-9084GT-M12X-BP2-MV can also be managed centralized and convenient by Open-Vision, as well as the Web-based interface, Telnet and console (CLI) configuration. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.
Physical Ports
10/100/1000 Base-T(X) Auto MDI/MDIX ports 8 (bypass function included by last 4 ports)
RS-232 Serial Console Port RS-232 in 5-pin M12 connector with console cable. 115200bps,
8,
N,
1
Technology
Ethernet Standards IEEE 802.3i for 10Base-T,
IEEE 802.3u for 100Base-TX,
IEEE 802.3ab for 1000Base-T,
IEEE 802.3x for Flow control,
IEEE 802.3ad for LACP (Link Aggregation Control Protocol ),
IEEE 802.1p for COS (Class of Service),
IEEE 802.1Q for VLAN Tagging,
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol),
IEEE 802.1x for Authentication,
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Table 8192 MAC addresses
Flash Memory 128Mbits
DRAM Size 1Gbits
Jumbo frame Up to 9.6K Bytes
Priority Queues 8
Processing Store-and-Forward
Switch Properties
Switching latency 7 us
Switching bandwidth 24 Gbps
Max. Number of Available VLANs 4094
VLAN ID range VID 1 to 4094
IGMP multicast groups 128 for each VLAN
Port rate limiting User Define
Security Featues Device Binding security feature,
Enable/disable ports,
MAC based port security,
Port based network access control (802.1x),
MAC-based authentication (802.1x),
VLAN (802.1Q ) to segregate and secure network traffic,
Radius centralized password management,
SNMPv3 encrypted authentication and access security,
Https / SSH enhance network security,
Web and CLI authentication and authorization,
IP source guard
Software Features IEEE 802.1D Bridge,
auto MAC address learning/aging and MAC address (static),
MSTP (RSTP/STP compatible),
Redundant Ring (O-Ring) with recovery time less than 30ms,
TOS/Diffserv supported,
Quality of Service (802.1p) for real-time traffic,
VLAN (802.1Q) with VLAN tagging,
Guest VLAN,
IGMP v2/v3 Snooping,
Application-based QoS management,
DOS/DDOS auto prevention,
Port configuration,
status,
statistics,
monitoring,
security,
DHCP Server/Client/Relay
SMTP Client, NTP server
Network Redundancy O-Ring,
O-Chain,
MSTP (RSTP/STP compatible)
LED Indicators
Power Indicator (PWR) Green - Power LED x 1
Ring Master Indicator (R.M.) Green - Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring) Green - Indicates that the system operating in O-Ring mode,
Green Blinking - Indicates that the Ring is broken.
Fault Indicator (Fault) Amber - Indicate unexpected event occurred
10/100/1000Base-T(X) M12 P.S.E. Port Indicator Top Green LED for Ethernet speed indicator- Green LED for 1000Mbps,
Amber for 100Mbps,
Middle Green LED for PoE enable indicator,
Bottom dual color LED for port Link/Act indicator
10/100/1000Base-T(X) M12 Port Indicator Top dual color LED for Ethernet speed indicator- Green LED for 1000Mbps,
Amber for 100Mbps,
Bottom Green LED for Link/Act indicator
Fault contact
Relay Relay output to carry capacity of 3A at 30VDC on M12 connector (5-pin A-coding)
Power
Redundant Input Power 72/110 (50.4-137.5) VDC on 4-pin S-coded M12 connector
PoE Output Power 60W
Power consumption (typical) 20W (not include PoE output)
Overload current protection present
Reverse Polarity Protection present
Physical Characteristic
Enclosure IP-30
Dimension (W x D x H) 438 x 250 x 44 mm
Weight 4550 g
Environmental
Storage Temperature -4085C (-40185F)
Operating Temperature -4075C (-40167F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMC CE EMC (EN 55024,
EN 55032),
FCC Part 15 B,
EN50155 (EN50121-3-2,
EN55011)
EMI EN 55032,
CISPR32,
EN 6100-3-2,
EN 6100-3-3, FCC Part 15B class A
EMS EN 55024 (IEC 61000-4-2 (ESD),
IEC 61000-4-3 (RS),
IEC 61000-4-4 (EFT),
IEC 61000-4-5 (Surge),
IEC 61000-4-6 (CS),
IEC 61000-4-8 (PFMF),
IEC 61000-4-11 (DIP))
Shock IEC60068-2-27
Free Fall IEC60068-2-31
Vibration IEC60068-2-6
Safety EN60950-1
Other EN50155
MTBF 298,128 hours
Warranty
Warranty period 5 years
