Transporter EN50155 DevicesORING NETWORKINGTINJ-101GT-M12-24V

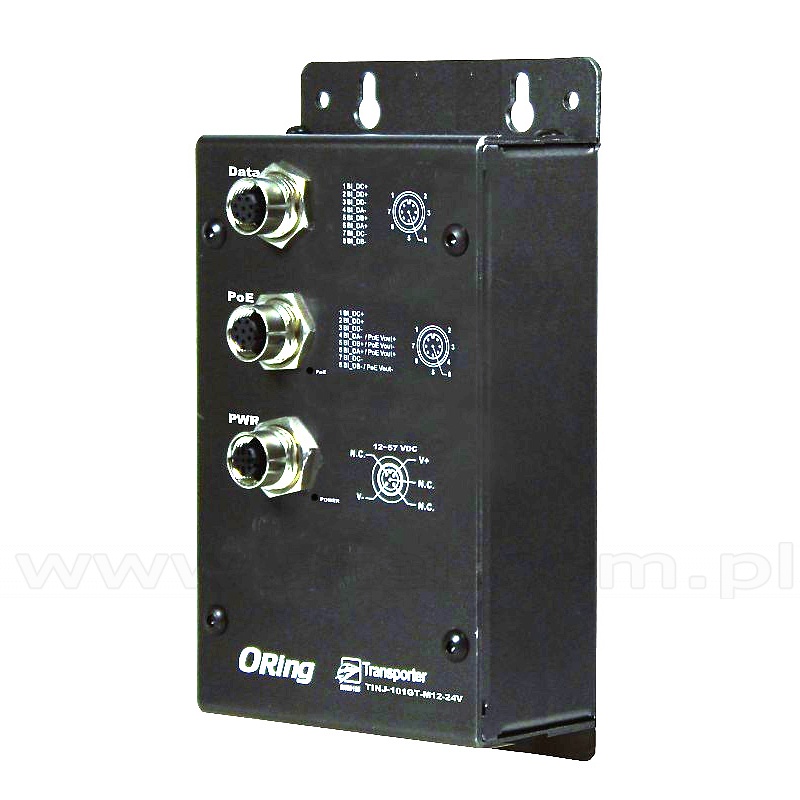

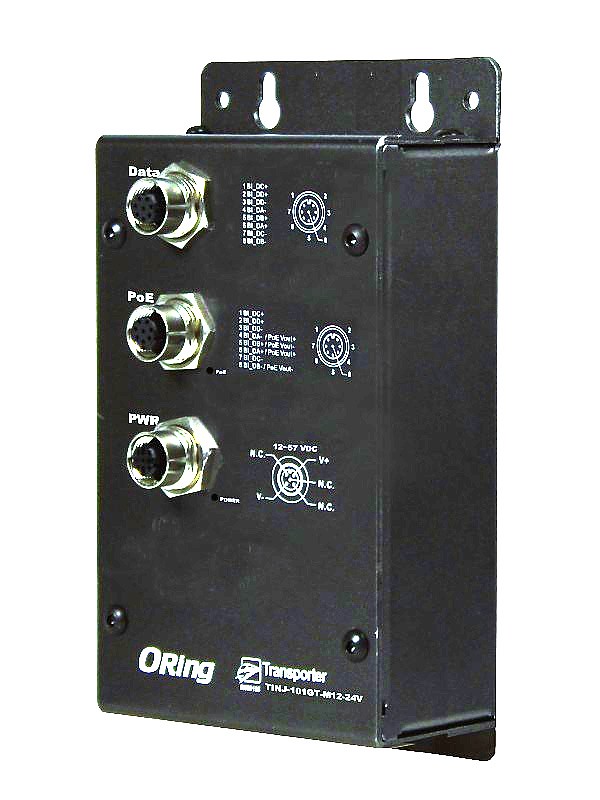

Industrial Gigabit High Power Injector, 2x10/1000 M12 PoE (ORing TINJ-101GT-M12-24V)

ORing’s Transporter series PoE Injectors are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The TINJ-101GT-M12-24V PoE Injector is an advanced IEEE802.3at compliant device with Intelligent Detection that provided 1-port 10/100/1000 Base-T(X) PoE output which is compliant with EN50155 requirement. It is specifically designed for the toughest industrial environments. TINJ-101GT-M12-24V EN50155 PoE Injector use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. The device does not turn on power until it detects a valid PoE signature from the PoE devices attached downstream on the Ethernet cable. This protection against damage to non-PoE compliant equipment which may be connected to the Ethernet cable. Because of this intelligent detection, only an IEEE 802.3at/802.3af compliant device can be powered with the TINJ-101GT-M12-24V PoE Injector. Typically, in Ethernet networks the maximum allowable CAT5 cable length is about 100 meters, due to the limitation of the Ethernet standards. Because of its 50V insertion, the installer doesn’t need to worry about voltage drops caused by cable length. The TINJ-101GT-M12-24V PoE Injector can function with any PoE P.D. equipment which is fully compliant with the IEEE 802.3at/802.3af PoE standards.
Physical Ports
10/100/1000 Base-T(X) with P.S.E. Ports in M12 Auto MDI/MDIX 1 (8-pin M12 female A-coding connector)
10/100/1000 Base-T(X) Port in M12 Auto MDI/MDIX 1 (8-pin M12 female A-coding connector)
Operating Voltage
Input Voltage Railway 24VDC (12 ~ 57 VDC) on 5-pin M12 female A-coding
Output Power 50V / 600mA,
30 Watts max. Per port
LED Indicators
Power indicator PWR / Ready 1 x LED,
Green On - Power is on and functioning Normally
PoE Indicators 1 x LED,
Blue On - PoE Device Link,
Blue Blinking - Detecting PoE Device,
Blue Off - None PoE Device Detected
Protection
Short Circuit Protection present
Over Load Protection present
Physical Characteristic
Enclosure IP-40
Dimension (W x D x H) 88.9 x 40 x 178.2 mm
Weight 446g
Environmental
Storage Temperature -4080C(-40176F)
Operating Temperature -2575C (-13167F)
Operating Humidity 5%90% Non-condensing
Regulatory approvals
EMC CE EMC (EN 55024,
EN 55032),
FCC Part 15 B,
EN 50155(EN 50121-1,
EN 50121-3-2)
EMI EN 55032,
CISPR32,
EN 61000-3-2,
EN 61000-3-3,
FCC Part 15 B class A
EMS IEC/EN 61000-4-2 (ESD),
IEC/EN 61000-4-3 (RS),
IEC/EN 61000-4-4 (EFT),
IEC/EN 61000-4-5 (Surge),
IEC/EN 61000-4-6 (CS),
IEC/EN 61000-4-8(PFMF),
IEC/EN 61000-4-11 (DIP))
Shock IEC60068-2-27
Free Fall IEC60068-2-31
Vibration IEC60068-2-6
Safety EN60950-1
Other EN 50155
MTBF 2,761,341 hrs.
Warranty
Warranty period 5 years

« previous product  |  next product »     »show on list« »show products list«
* For special orders only
Net Price: 370,00 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
