Transporter EN50155 DevicesORING NETWORKINGTES-3162GT-M12-BP1

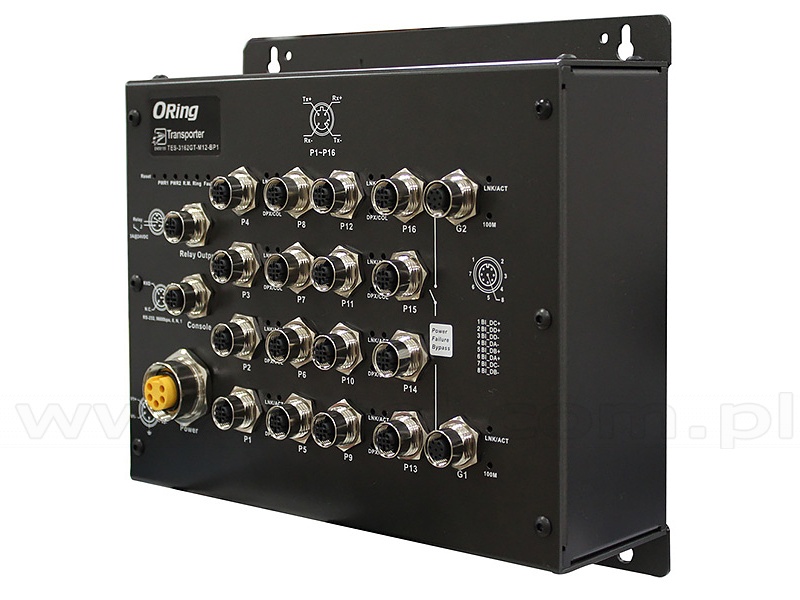

Managed switch, 16x 10/100 M12 + 2x 10/100/1000 M12 Bypass (ORing TES-3162GT-M12-BP1)

ORing's TransporterTM series managed Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. The TES-3082GT-M12-BP1 is a managed Redundant Ring Ethernet switch with 8x10/100Base-T(X) and 2x10/100/1000Base-T(X) ports which is specifically designed for the toughest and fully compliant with EN50155 requirement. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring, O-Chain and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. Another Open-Ring technology is also supported which can applied for other vendor's proprietary ring. TES-3082GT-M12-BP1 EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. TES-3082GT-M12-BP1 can be managed centralized and convenient by a powerful windows utility ~ Open-Vision. In addition, the wide operating temperature range from -40 oC to 70oC can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for rolling stock and highly-managed Ethernet application.
Physical Ports
10/100 Base-T(X) Bypass Ethernet Auto MDI/MDIX 16
10/100/1000 Base-T(X) Bypass Ethernet Auto MDI/MDIX 2
Connector Type Waterproof M12
Ethernet Standards IEEE 802.3 for 10Base-T,
IEEE 802.3u for 100Base-TX,
IEEE 802.3ab for 1000Base-T,
IEEE 802.3x for Flow control,
IEEE 802.3ad for LACP (Link Aggregation Control Protocol ),
IEEE 802.1D for STP (Spanning Tree Protocol),
IEEE 802.1p for COS (Class of Service),
IEEE 802.1Q for VLAN Tagging,
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol),
IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol),
IEEE 802.1x for Authentication,
IEEE 802.1AB for LLDP (Link Layer Discovery Protocol)
MAC Table 8192 MAC addresses
Priority Queues 4
Processing Store-and-Forward
Switching bandwidth 7.2Gbps
Max. Number of Available VLANs 4096
IGMP multicast groups 1024
Port rate limiting User Define
Security Features Enable/disable ports,
MAC based port security,
Port based network access control (802.1x),
VLAN (802.1Q ) to segregate and secure network traffic,
Supports Q-in-Q VLAN for performance & security to expand the VLAN space,
Radius centralized password management,
SNMP v1/v2c/v3 encrypted authentication and access security
Software Features STP/RSTP/MSTP (IEEE 802.1D/w),
Redundant Ring (O-Ring) with recovery time less than 10ms over 250 units,
Port configuration,
Port status,
Port statistics,
Port monitoring,
Port security
Network Redundancy O-Ring,
Fast recovery,
LED Indicators
Power Indicator Green - Power LED x 2
Ready / Ring Master Indicator Green - Indicate system operated in O-Ring Master mode
O-Ring Indicator Amber - Indicates port operating in O-Ring mode (per port)
10/100TX Port Indicator Green for port Link/Act. (per port)
10/100/1000TX Port Indicator Green for Link/Act. Amber for 100Mbps indicator
Relay Relay output to carry capacity of 3A at 24VDC on M12 connector (5-pin A-coding)
Input power Dual 12~48VDC
Connector Type Waterproof M23
Power consumption (typical) 12.48W
Overload current protection present
Reverse polarity protection present
Physical Characteristic
Dimension (W x D x H) 260mm x 91,3mm x 216mm
Weight 2020 g
Storage Temperature -4085C (-40185F)
Operating Temperature -4070C (-40158F)
Operating Humidity 5%95% Non-condensing
Regulatory approvals
EMI FCC Part 15,
CISPR (EN55022) class A,
EN50155 (EN50121-3-2,
EMS EN61000-4-2 (ESD),
EN61000-4-3 (RS),
EN61000-4-4 (EFT),
EN61000-4-5 (Surge),
EN61000-4-6 (CS),
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
Warranty period 5 years

Transporter EN50155 Devices
expand groupexpand group [price]


630,00 EUR
1440,00 EUR
684,00 EUR
