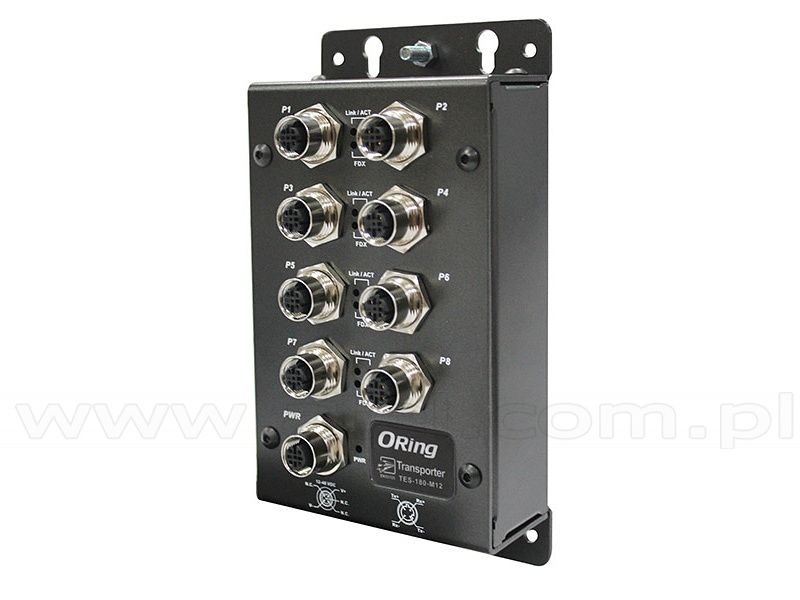

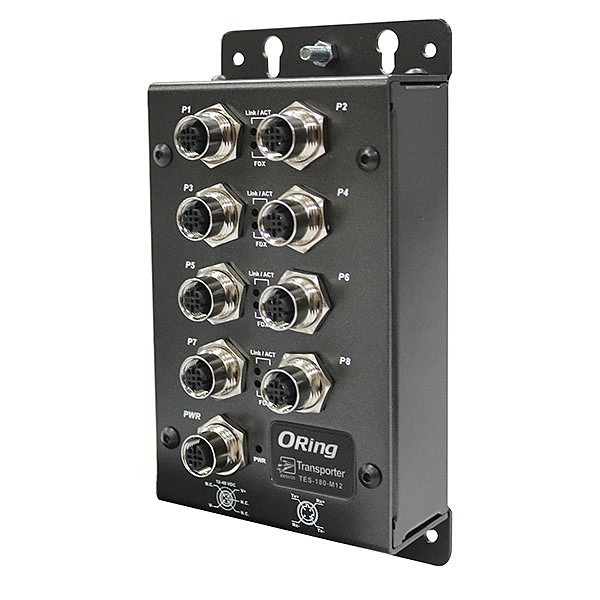

Unmanaged switch, 8x 10/100 M12 (ORing TES-180-M12)
ORing’s TransporterTM series Ethernet switches are designed for industrial applications, such as rolling stock, vehicle, and railway applications. TES-180-M12 is an unmanaged Ethernet switch with 8x10/100Base-T(X) ports which is compliant with EN50155 request. It is specifically designed for the toughest industrial environments. TES-180-M12 EN50155 Ethernet switch use M12 connectors to ensure tight, robust connections, and guarantee reliable operation against environmental disturbances, such as vibration and shock. In addition, the wide operating temperature range from -40oC to 70oC can satisfy most of operating environment. The TES-180-M12 can be easily adopted in almost all kinds of applications and provides the most rugged solutions for your network. Therefore, the switch is one of the most reliable choices for rolling stock Ethernet application.
| Physical Ports | |
|---|---|
| 10/100 Base-T(X) Ports w/Auto MDI/MDIX | 8 |
| Connector Type | Waterproof M12 |
| Technology | |
| Ethernet Standards | IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for Flow control |
| Processing | Store-and-Forward |
| LED Indicators | |
| Power Indicator | Green - Power LED x 1 |
| 10/100TX Port Indicator | Green for port Link/Act, Amber for Duplex/Collision |
| Power | |
| Input power | 12~48 VDC |
| Connector Type | Waterproof M12 |
| Power consumption (typical) | 4.32W |
| Overload current protection | present |
| Reverse polarity protection | present |
| Physical Characteristic | |
| Dimension (W x D x H) | 88.9 (W) x 40 (D) x 178.2 (H)mm |
| Weight | 510g |
| Environmental | |
| Storage Temperature | -40÷85°C (-40÷185°F) |
| Operating Temperature | -40÷70°C (-40÷158°F) |
| Operating Humidity | 5%÷95% Non-condensing |
| Regulatory approvals | |
| EMI | FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4) |
| EMS | EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
| Shock | IEC60068-2-27, EN61373 |
| Free Fall | IEC60068-2-32 |
| Vibration | IEC60068-2-6, EN61373 |
| Safety | EN60950-1 |
| Warranty | |
| Warranty period | 5 years |
TAGS:
EN50155
| * For special orders only Net Price:
 Call |
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
