#08000
Cables coaxial typeYAP RG-59 +2X0,75

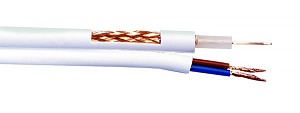

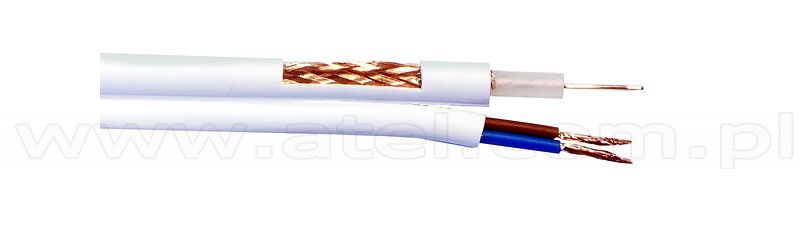

Coaxial cable YAp RG59 + 2 x power cable 1mm2, white, 100m

YAp 75-0,59/3,7 + 2x1mm2 coaxial outdoor cable for industrial tv instalation.
The parameters of the coaxial
Inner conductor 0.59 mm / copper wire (Cu)
Dielectric 3.70 mm / EP
Display braided copper (Cu) 90%
Outer sheath 6mm/PVC/biała
Impedance 75 Ω ± 3
Unit Capacity 67 ± 3 pF / m
Screening efficiency > 65dB (100-900MHz)
Internal conductor resistance 46 Ω / km
Minimum bending radius in the internal installations > 5x cable diameter
Damping [dB/100m] 7.6 (50MHz),
10.9 (100MHz),
15.5 (200MHz),
23.1 (450MHz),
25.9 (500MHz),
32.6 (800MHz),
36 ,
5 (1000MHz),
42.0 (1300MHz)
Weight 7.5 kg
The parameters of the control
Vein internal 2 x stranded copper (Cu)
Rated cross-section of living control 0.50 mm / copper,
multiple-
Outer sheath 5mm/PVC/biała
Marked each meter, in rolls. Can use connector for RG59.

COAXIAL CABLES 75Ω
Net Price: 72,80 EUR  Unit: roll 100m
Minimal order quantity: 1 x roll 100m
Quantity in the smallest collective package: 1 x roll 100m
x roll 100m
