 COAXIAL CABLES 50Ω
#08999

Coaxial cable RG213, stranded wire, black, 100 m

Internal wire 7x0.75 copper/stranded wire
Insulation 7.2 mm,
PE
External coating 10.3mm/PVC/black
Impedance 50Ω
capacitance 98 ± 2 pF/m
attenuation 10 MHz - 1.7 dB/100m,
50 MHz - 4.6 dB/100m,
100 MHz - 6.7 dB/100m,
230 MHz - 9.8 dB/100m,
470 MHz - 15.3 dB/100m,
860 MHz - 22.3 dB/100m,
1000 MHz - 24.5 dB/100m,
1500 MHz - 31.3 dB/100m,
2000 MHz - 36.5 dB/100m
Coaxial cable RG213, stranded wire, black, 100 m
Net Price: 181,00 EUR  Unit: roll 100m  VAT: 23%
product card»

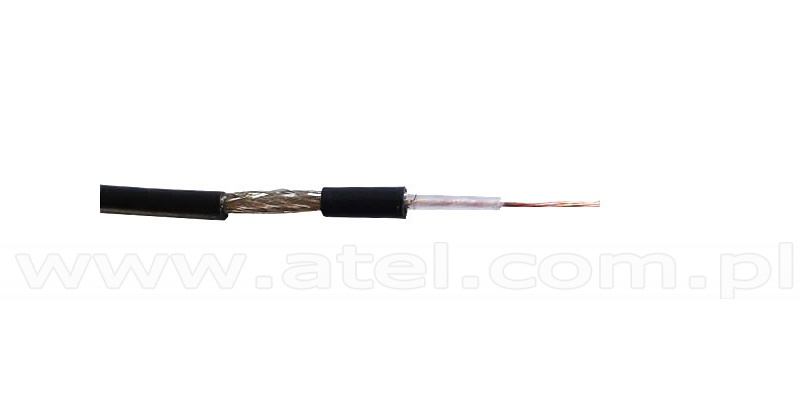

#07208

Coaxial cable Wave Cables RG174, stranded wire, black, 100 m

Internal wire 7x0.16 copper/stranded wire
Insulation 1.6 mm,
PE
Shield 96x0.1 copper
External coating 2.90mm/PVC/black
Impedance 50Ω
capacitance 100 ± 2 pF/m
attenuation 50 MHz - 18.0 dB/100m,
200 MHz - 37.2 dB/100m,
400 MHz - 53.2 dB/100m,
600 MHz - 64.3 dB/100m,
800 MHz - 79.2 dB/100m
WAVE CABLES
Coaxial cable RG174, 50ohm, stranded wire, black, 100m, Wave Cables
Net Price: 22,90 EUR  Unit: roll 100m  VAT: 23%
product card»

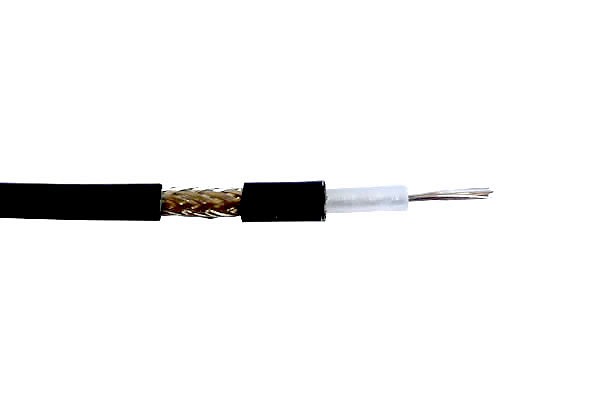

#07209

Coaxial cable Wave Cables RG58, stranded wire, black, 100 m

Internal wire 19x0.18 copper/stranded wire
Insulation 3.0 mm,
PE
Shield 112x0.1 copper
External coating 5.0mm/PVC/black
Impedance 50Ω
capacitance 100 ± 2 pF/m
attenuation 50 MHz - 10.9 dB/100m,
200 MHz - 23.0 dB/100m,
400 MHz - 33.8 dB/100m,
600 MHz - 42.5 dB/100m,
800 MHz - 47.8 dB/100m,
1000 MHz - 51.9 dB/100m
WAVE CABLES
Coaxial cable RG58, 50ohm, stranded wire, black, 100m, Wave Cables
Net Price: 34,60 EUR  Unit: roll 100m  VAT: 23%
product card»
#07103

Coaxial cable, RG58 R-ALL, stranded wire, 100 m, black

High performance, professional outdoor coaxial cable for video instalation.
Internal wire 1.10mm/cooper (Cu)
Insulation 2.90mm
Shield Cu-Al-PET + 94% CuCa
External coating 4.95mm/PVC/black
Marked each meter, in rolls.
Coaxial cable, RG58 R-ALL, stranded wire, 100 m, black
Net Price: 42,30 EUR  Unit: roll 100m  VAT: 23%
product card»
 COAXIAL CABLES 75Ω
top
#07098

Coaxial cable CTF 113 Tri-shield, 100 m

CFT 113 Tri-shield is a high quality 75Ω coaxial cable designed for perfect signal transmission of digital and analog in a very difficult external environment.
internal vein 1.13 mm / copper wire (Cu)
dielectric 4.8 mm
Screen Al foil + braid 90% + Al-Pet
braid 90%
outer shell 7mm/PVC/white
Attenuation 50 MHz - 4,1 dB/100m,
100 MHz - 5,5 dB/100m,
200 MHz - 8,1 dB/100m,
450 MHz - 11,9 dB/100m,
860 MHz - 17,1 dB/100m,
1000 MHz - 18,5 dB/100m,
1350 MHz - 21,9 dB/100m,
1750 MHz - 25,3 dB/100m,
2150 MHz - 27,9 dB/100m,
3000 MHz - 34,7 dB/100m
Coaxial cable CTF 113 Tri-shield, 100 m
Net Price: 44,40 EUR  Unit: roll 100m  VAT: 23%
product card»
#07099

Coaxial cable RG-11/U Tri-shield, gel, 100 m

RG-11/U Tri-shield is a high quality 75Ω coaxial cable designed for perfect signal transmission of digital and analog in a very difficult external environment.
internal vein 1.63 mm / copper wire (Cu)
dielectric 7.11 mm
Screen Al foil + braid 60% + Al-Pet
outer shell 10.1 mm/PE/black + gel
Attenuation 50 MHz - 3,1 dB/100m,
100 MHz - 4,3 dB/100m,
200 MHz - 6,1 dB/100m,
450 MHz - 9,1 dB/100m,
860 MHz - 12,9 dB/100m,
1000 MHz - 14,3 dB/100m,
1350 MHz - 17,1 dB/100m,
1750 MHz - 20,1 dB/100m,
2150 MHz - 23,0 dB/100m,
2400MHz - 24,5 dB/100m,
3000 MHz - 37,3 dB/100m
Coaxial cable RG-11/U Tri-shield, gel, 100 m
Net Price: 80,50 EUR  Unit: roll 100m  VAT: 23%
product card»
#07206

Coaxial cable Wave Cables RG6 Cu, black, 100 m

center conductor 1.02 mm / copper wire (Cu)
dielectric 4.7 mm
screen Al-PES foil
braid 64x0.12 Al
outer shell 6.8mm/PVC
impedance 75Ω
capacitance 52 ± 2 pF/m
return loss 1-1000 MHz - >23dB,
1000-3000 MHz - >20dB
screening attenuation 1-1000MHz - >90dB
attenuation 5 MHz - 5 MHz - 1.7 dB/100m,
50 MHz - 5.0 dB/100m,
200 MHz - 8.7 dB/100m,
400 MHz - 12.8 dB/100m,
800 MHz - 18.0 dB/100m,
1000 MHz - 19.8 dB/100m,
1350 MHz - 23.8 dB/100m,
1750 MHz - 28.0 dB/100m,
2150 MHz - 31.4 dB/100m,
3000 MHz - 38.0 dB/100m
WAVE CABLES
Coaxial cable RG6 Cu, 75ohm, black, 100m, Wave Cables
Net Price: 22,30 EUR  Unit: roll 100m  VAT: 23%
product card»
#07212

Coaxial cable Wave Cables RG6 Cu, white, 100 m

center conductor 1.02 mm / copper wire (Cu)
dielectric 4.7 mm
screen Al-PES foil
braid 64x0.12 Al
outer shell 6.8mm/PVC
impedance 75Ω
capacitance 52 ± 2 pF/m
return loss 1-1000 MHz - >23dB,
1000-3000 MHz - >20dB
screening attenuation 1-1000MHz - >90dB
attenuation 5 MHz - 5 MHz - 1.7 dB/100m,
50 MHz - 5.0 dB/100m,
200 MHz - 8.7 dB/100m,
400 MHz - 12.8 dB/100m,
800 MHz - 18.0 dB/100m,
1000 MHz - 19.8 dB/100m,
1350 MHz - 23.8 dB/100m,
1750 MHz - 28.0 dB/100m,
2150 MHz - 31.4 dB/100m,
3000 MHz - 38.0 dB/100m
WAVE CABLES
Coaxial cable RG6 Cu, 75ohm, white, 100m, Wave Cables
Net Price: 22,30 EUR  Unit: roll 100m  VAT: 23%
product card»
#07291

Coaxial cable Wave Cables RG6 Cu, white, LSOH, 100 m

center conductor 1.02 mm / copper wire (Cu)
dielectric 4.7 mm
screen Al-PES foil
braid 64x0.12 Al
outer shell 6.8mm/LSOH
impedance 75Ω
capacitance 52 ± 2 pF/m
return loss 1-1000 MHz - >23dB,
1000-3000 MHz - >20dB
screening attenuation 1-1000MHz - >90dB
attenuation 5 MHz - 5 MHz - 1.7 dB/100m,
50 MHz - 5.0 dB/100m,
200 MHz - 8.7 dB/100m,
400 MHz - 12.8 dB/100m,
800 MHz - 18.0 dB/100m,
1000 MHz - 19.8 dB/100m,
1350 MHz - 23.8 dB/100m,
1750 MHz - 28.0 dB/100m,
2150 MHz - 31.4 dB/100m,
3000 MHz - 38.0 dB/100m
WAVE CABLES
Coaxial cable Wave Cables RG6 Cu, white, LSOH, 100 m
Net Price: 24,50 EUR  Unit: roll 100m  VAT: 23%
product card»
#08002

Coaxial cable XAp RG59 + 2 x power cable, white, 100m

XAP RG59 + 2x0.75mm2 is 75Ω coaxial cable with the wires supplying integrated / octal construction controls, designed primarily for use in CCTV installations.
The parameters of the coaxial
Inner conductor 0.59 mm / copper wire (Cu)
Dielectric 3.70 mm / EP
Display braided copper (Cu) 90%
Outer sheath PE 6mm/black
Impedance 75 Ω ± 3
Unit Capacity 67 ± 3 pF / m
Screening efficiency > 65dB (100-900MHz)
Internal conductor resistance 46 Ω / km
Minimum bending radius in the internal installations > 5x cable diameter
Damping [dB/100m] 7.6 (50MHz),
10.9 (100MHz),
15.5 (200MHz),
23.1 (450MHz),
25.9 (500MHz),
32.6 (800MHz),
36 ,
5 (1000MHz),
42.0 (1300MHz)
The parameters of the control
Vein internal 2 x stranded copper (Cu)
Rated cross-section of living control 0.75 mm2 / copper,
multiple-
Outer sheath 5mm/PVC/black
Marked each meter, in rolls.
Coaxial cable XAp RG59 + 2 x power cable, white, 100m
Net Price: 50,90 EUR  Unit: roll 100m  VAT: 23%
product card»
#08000

Coaxial cable YAp RG59 + 2 x power cable 0.75mm2, white, 100m

YAp 75-0,59/3,7 + 2x0.75mm2 coaxial outdoor cable for industrial tv instalation.
The parameters of the coaxial
Inner conductor 0.59 mm / copper wire (Cu)
Dielectric 3.70 mm / EP
Display braided copper (Cu) 90%
Outer sheath 6mm/PVC/bia³a
Impedance 75 Ω ± 3
Unit Capacity 67 ± 3 pF / m
Screening efficiency > 65dB (100-900MHz)
Internal conductor resistance 46 Ω / km
Minimum bending radius in the internal installations > 5x cable diameter
Damping [dB/100m] 7.6 (50MHz),
10.9 (100MHz),
15.5 (200MHz),
23.1 (450MHz),
25.9 (500MHz),
32.6 (800MHz),
36 ,
5 (1000MHz),
42.0 (1300MHz)
Weight 7.5 kg
The parameters of the control
Vein internal 2 x stranded copper (Cu)
Rated cross-section of living control 0.50 mm / copper,
multiple-
Outer sheath 5mm/PVC/bia³a
Marked each meter, in rolls. Can use connector for RG59.
Coaxial cable YAp RG59 + 2 x power cable 0.75mm2, white, 100m
Net Price: 72,80 EUR  Unit: roll 100m  VAT: 23%
product card»
 COAXIAL CABLES 50Ω UP TO 3GHz
top
#07290

H155 (WC-55) coaxial cable Wave Cables, 50 Ohm (LSOH), 100 m

High performance outdoor coaxial cable for WLAN communication (2,4 GHz).
Internal wire 7x0.45 / cooper (Cu)
Insulation 3.60mm
Shield Double Al foil,
96x0.12Cu
External coating 5.4mm/LSOH
Attenuation 20°C [dB/100m]
5 MHz 1,8
50 MHz 6,8
200 MHz 12,5
400 MHz 17,8
800 MHz 26
1000 MHz 29,6
1350 MHz 34,7
1750 MHz 40
2150 MHz 44,5
3000 MHz 53,2
Return loss [dB]
5-30 MHz >22
30-470 MHz >20
470-1000 MHz >18
1000-2150 MHz >18
Can use connector for H155
WAVE CABLES
H155 (WC-55) coaxial cable Wave Cables, 50 Ohm (LSOH), 100 m
Net Price: 72,30 EUR  Unit: roll 100m  VAT: 23%
product card»
#07211

H155 (WC-55) coaxial cable Wave Cables, 50 Ohm (PE), 100 m

High performance outdoor coaxial cable for WLAN communication (2,4 GHz).
Internal wire 7x0.45 / cooper (Cu)
Insulation 3.60mm
Shield Double Al foil,
96x0.12Cu
External coating 5.4mm/PE
Attenuation 20°C [dB/100m]
5 MHz 1,8
50 MHz 6,8
200 MHz 12,5
400 MHz 17,8
800 MHz 26
1000 MHz 29,6
1350 MHz 34,7
1750 MHz 40
2150 MHz 44,5
3000 MHz 53,2
Return loss [dB]
5-30 MHz >22
30-470 MHz >20
470-1000 MHz >18
1000-2150 MHz >18
Can use connector for H155
WAVE CABLES
H155 coaxial cable (WC-55), 50Ohm (PE), 100m, Wave Cables
Net Price: 65,70 EUR  Unit: roll 100m  VAT: 23%
product card»
#07253

H155 (WC-55) coaxial cable Wave Cables, 50 Ohm (PE), 500 m

50Ω, 5,4mm (H155) High performance outdoor coaxial cable for WLAN communication (2,4 GHz).
Internal wire 7x0.45 / cooper (Cu)
Insulation 3.60mm
Shield Double Al foil,
96x0.12Cu
External coating 5.4mm/PE
Attenuation 20°C [dB/100m]
5 MHz 1,8
50 MHz 6,8
200 MHz 12,5
400 MHz 17,8
800 MHz 26
1000 MHz 29,6
1350 MHz 34,7
1750 MHz 40
2150 MHz 44,5
3000 MHz 53,2
Return loss [dB]
5-30 MHz >22
30-470 MHz >20
470-1000 MHz >18
1000-2150 MHz >18
Can use connector for H155
WAVE CABLES
H155 coaxial cable (WC-55), 50Ohm (PE), 500m, Wave Cables
Net Price: 328,00 EUR  Unit: roll 500m  VAT: 23%
product card»
#02058

RF-10F (H1000) coaxial cable, 50 Ohm (PE), wire, 100 m

Internal wire 2.71/Cu/solid
Insulation 7.25/Foam-PE
Shield 10.3 mm Cu-PET-Cu-foil+cooper braid
External coating 5.4/PE/black
Wave loss [100/1000/2500MHz] 1.0/3.6/20.6
Coaxial cable, RF-10F (H1000), 50Ohm (PE), wire, 100m
Net Price: 244,00 EUR  Unit: roll 100m  VAT: 23%
product card»
#02051

RF-5X (H155) coaxial cable, 50 Ohm (PE), Draka, 100m

High performance outdoor coaxial cable for WLAN communication (2,4 GHz). Draka Comteq.
Internal wire 1.35mm(7x0,45)/cooper (Cu)
Insulation 3.60mm
Shield Cu-Al-PET + 60% cooper (CuCA)
External coating 5.4mm/PE/black
Marked each meter, in rolls. Can use connector for H155
RF-5X (H155) coaxial cable, 50 Ohm (PE), Draka, 100m
Net Price: 50,00 EUR  Unit: roll 100m  VAT: 23%
product card»
#02050

RF-5X (H155) coaxial cable, 50 Ohm (PE), Draka, 500m

High performance outdoor coaxial cable for WLAN communication (2,4 GHz). Draka Comteq.
Internal wire 1.35mm(7x0,45)/cooper (Cu)
Insulation 3.60mm
Shield Cu-Al-PET + 60% cooper (CuCA)
External coating 5.4mm/PE/black
Marked each meter, in rolls. Can use connector for H155
RF-5X (H155) coaxial cable, 50 Ohm (PE), Draka, 500m
Net Price: 251,00 EUR  Unit: roll 500m  VAT: 23%
product card»
 COAXIAL CABLES 50Ω UP TO 6GHz
top
#08259

MRC 400 ECO coaxial cable, Draka, 50 Ohm (PE), 100 m

High performance, professional outdoor coaxial cable for WLAN communication (2,4 GHz, WiMAX, 5 GHz) with a CCA inner conductor (Copper Clad Aluminium). Draka Comteq.
Internal wire 2.74 mm/CCA
Insulation Ø7.24 mm
Shield AL-PET Foil,
bonded to the dielectric + Aluminium braid
External coating 10.3 mm/PE/black
Attenuation table
30 MHz 2.2 dB/100m
150 MHz 5 dB/100m
220 MHz 6.1 dB/100m
450 MHz 8.9 dB/100m
900 MHz 12.8 dB/100m
1800 MHz 18.6 dB/100m
2500 MHz 22.3 dB/100m
5200 MHz 33.6 dB/100m
5800 MHz 35.5 dB/100m
Marked each meter, in rolls. Can use connector for H1000.

Connectors for MRC 400 ECO (H1000)
#02018 N male connector, crimp type, H1000
#02019 N female connector, crimp type, H1000

Crimping tools MRC 400 ECO (H1000)
#02330 Coaxial ratchet crimping tool (CT-336K)
#04293 Coaxial ratchet crimping tool (HT-336K)
MRC 400 ECO coaxial cable, Draka, 50 Ohm (PE), 100 m
Net Price: 119,00 EUR  Unit: roll 100m  VAT: 23%
product card»
#05299

Tri-lan 240 (RF-240) coaxial cable, 50 Ohm, 100 m

Copper core diameter 1.4 mm+/-0.02 mm
Outer diameter 3.8 mm +/- 0.05 mm
Shield Al/Poliester Foil/Al Foil 12/15/12 um
Foil coverage rate 100 %
CuSn braid 16x7x0.12
Braid coverage rate 80 %
Outer diameter 4.45 mm
Sheath
Material PE
Outer diameter 6.10 mm +/-0.10 mm
Colour black
Electrical parameters
Impedance 50 Ohm +/-2
Capacitance 83 pF/m
Wave reduction factor 81%
Screening efficiency >90 dB
Core resistance 11.2 Ohm/km
Braid resistance 12.4 Ohm/km
Other parameters
Minimum bending radius 30/60 mm
Weight 47 kg/km
Working temperature -40°C ÷ 70°C
Attenuation table
30 MHz 4.2 dB/100m
50 MHz 5.4 dB/100m
150 MHz 9.2 dB/100m
220 MHz 11.2 dB/100m
450 MHz 16.2 dB/100m
900 MHz 23.3 dB/100m
1500 MHz 30.7 dB/100m
1800 MHz 33.9 dB/100m
2000 MHz 35.9 dB/100m
2500 MHz 40.6 dB/100m
5800 MHz 65.2 dB/100m
H155 connectors for RF-240 cable (H155)
#02023 SMA male connector, crimp type, H155
#02025 SMA male reverse pin connector (RP), crimp type, H155
#02024 SMA female connector, crimp type, H155
#02026 SMA female reverse pin connector (RP), crimp type, H155
#02021 N male connector, crimp type, H155
#02022 N female connector, crimp type, H155
#02483 TNC male connector, crimp type, H155
#04727 TNC male RP connector (Reverse Pin), crimp type, H155
#02482 TNC female connector, crimp type, H155
#02481 FME male connector, crimp type, H155
#02480 FME female connector, crimp type, H155
#02053 MC-CARD male connector; 90°, gold, crimp type, H155

Crimping tool for RF-240 cable (H155)
#04252 Coaxial ratchet crimping tool (HT-336I)
RF240 coaxial cable, 50 Ohm, 100m
Net Price: 94,90 EUR  Unit: roll 100m  VAT: 23%
product card»

top
