#07099
Cables coaxial type#07099

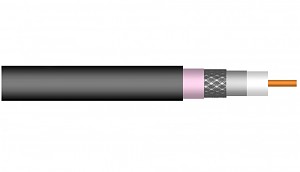

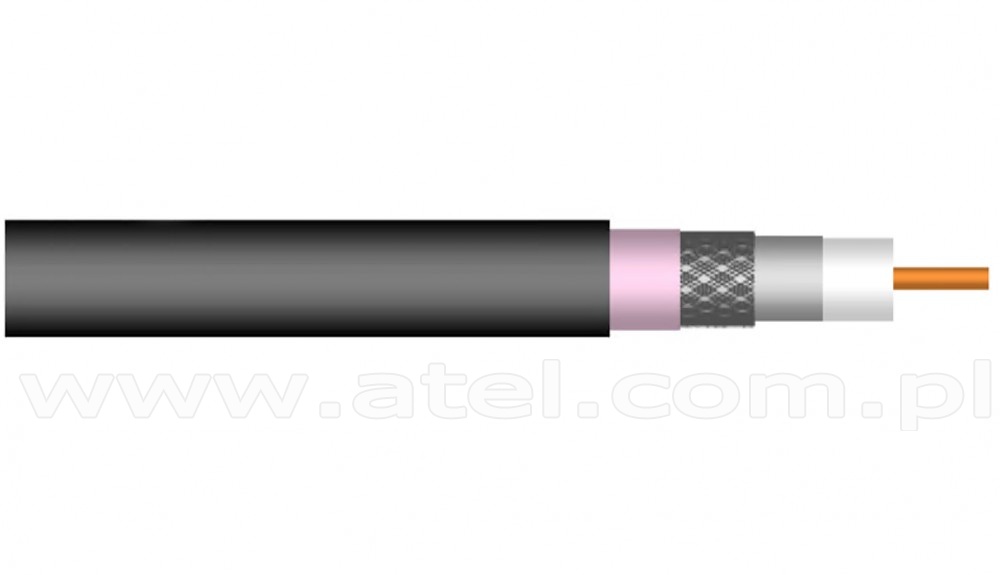

Coaxial cable RG-11/U Tri-shield, gel, 100 m

RG-11/U Tri-shield is a high quality 75Ω coaxial cable designed for perfect signal transmission of digital and analog in a very difficult external environment.
internal vein 1.63 mm / copper wire (Cu)
dielectric 7.11 mm
Screen Al foil + braid 60% + Al-Pet
outer shell 10.1 mm/PE/black + gel
Attenuation 50 MHz - 3,1 dB/100m,
100 MHz - 4,3 dB/100m,
200 MHz - 6,1 dB/100m,
450 MHz - 9,1 dB/100m,
860 MHz - 12,9 dB/100m,
1000 MHz - 14,3 dB/100m,
1350 MHz - 17,1 dB/100m,
1750 MHz - 20,1 dB/100m,
2150 MHz - 23,0 dB/100m,
2400MHz - 24,5 dB/100m,
3000 MHz - 37,3 dB/100m

COAXIAL CABLES 75Ω
Net Price: 59,50 EUR  Unit: roll 100m
Minimal order quantity: 1 x roll 100m
Quantity in the smallest collective package: 1 x roll 100m
x roll 100m
