Cables coaxial typeWAVE CABLESWC-55/500

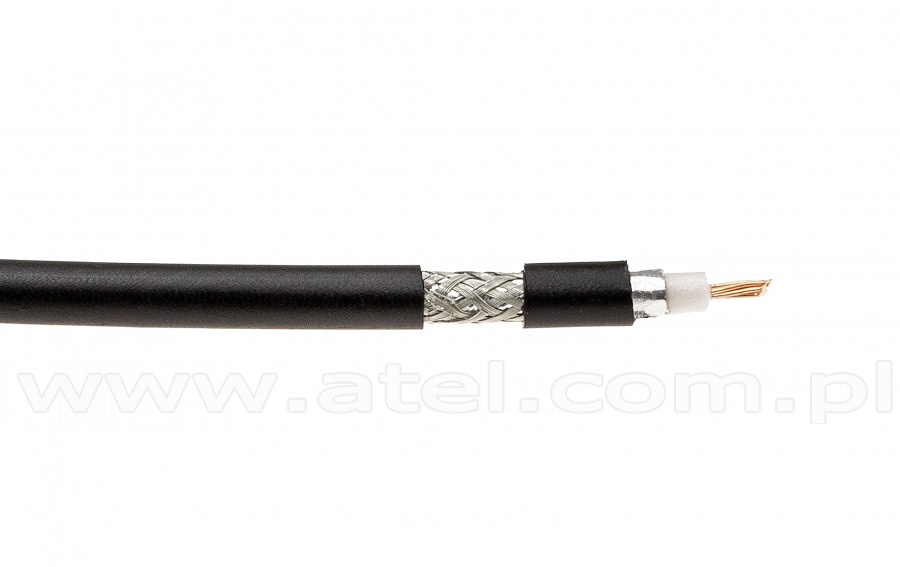

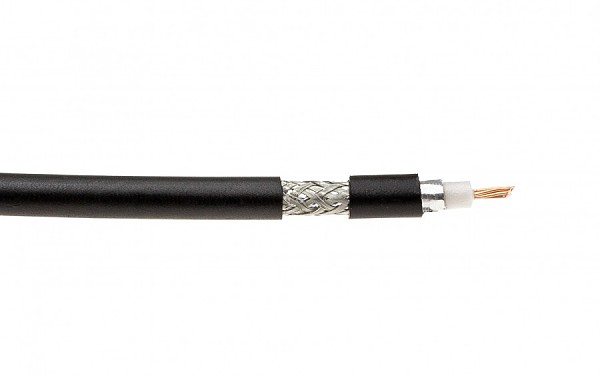

H155 (WC-55) coaxial cable Wave Cables, 50 Ohm (PE), 500 m

50Ω, 5,4mm (H155) High performance outdoor coaxial cable for WLAN communication (2,4 GHz).
Internal wire 7x0.45 / cooper (Cu)
Insulation 3.60mm
Shield Double Al foil,
External coating 5.4mm/PE
Attenuation 20C [dB/100m]
5 MHz 1,8
50 MHz 6,8
200 MHz 12,5
400 MHz 17,8
800 MHz 26
1000 MHz 29,6
1350 MHz 34,7
1750 MHz 40
2150 MHz 44,5
3000 MHz 53,2
Return loss [dB]
5-30 MHz >22
30-470 MHz >20
470-1000 MHz >18
1000-2150 MHz >18
Can use connector for H155

Net Price: 328,00 EUR  Unit: roll 500m
Minimal order quantity: 1 x roll 500m
Quantity in the smallest collective package: 1 x roll 500m
x roll 500m
