Cables coaxial type › MRC 240

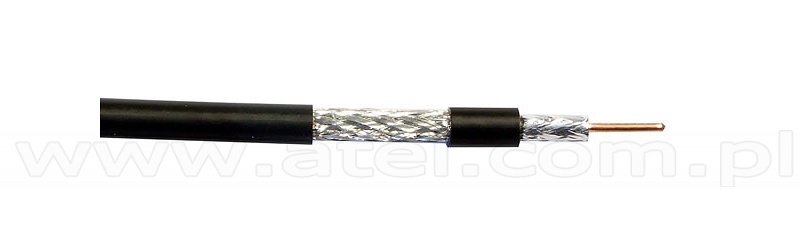

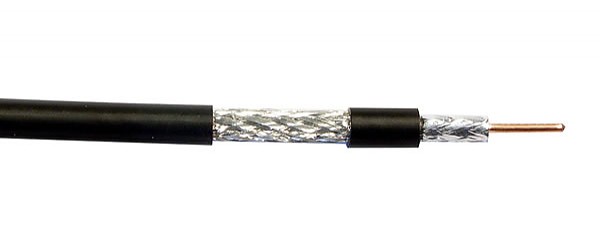

MRC 240 coaxial cable, 50 Ohm, 100 m
50Ω coaxial cable. Features very good electrical characteristics and resistance to weather conditions.
| Copper core diameter | 1.42 mm+/-0.02 mm |
|---|---|
| Outer diameter | 3.81 mm +/- 0.05 mm |
| Shield | Al/Poliester Foil/Al Foil 12/15/12 um |
| Foil coverage rate | 100 % |
| CuSn braid | 16x7x0.12 |
| Braid coverage rate | 93 % |
| Outer diameter | 4.45 mm |
| Sheath | |
| Material | PE |
| Outer diameter | 6.10 mm +/-0.10 mm |
| Colour | black |
| Electrical parameters | |
| Impedance | 50 Ohm +/-2 |
| Capacitance | 83 pF/m |
| Wave reduction factor | 81% |
| Core resistance | 11.2 Ohm/km |
| Braid resistance | 12.4 Ohm/km |
| Other parameters | |
| Minimum bending radius | 30/60 mm |
| Attenuation table | 30 MHz - 4,4 dB/100m, 150 MHz - 9,9 dB/100m, 220 MHz - 12,0 dB/100m, 450 MHz - 17,3 dB/100m, 900 MHz - 24,8 dB/100m, 1500 MHz - 32,4 dB/100m, 1800 MHz - 35,6 dB/100m, 2500 MHz - 42,4 dB/100m, 5800 MHz - 66,8 dB/100m |
Net Price: 71,50 EUR Unit: roll 100m
|
|
Minimal order quantity: 1 x roll 100m Quantity in the smallest collective package: 1 x roll 100m |
