#06985
Media ConvertersTP-LINKTL-MC1400

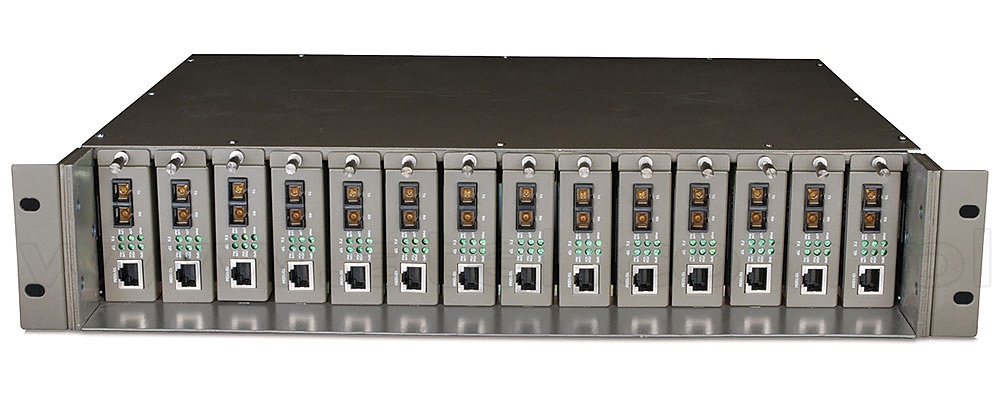

Rack chassis for media converter, 14-port (TP-LINK TL-MC1400)

Capacity 14 media converters
AC Power Supply Input 100-240V~50/60Hz 3.0A(Max),
Output +9.5VDC 9.5A(Max),
optional redundant power supply
Operating Temperature 0°C~40°C
Storage Temperature -40°C~70°C
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing
Weight 8kg
Dimensions 482x358x86 mm
Certificates FCC Class A & CE Mark
Warranty 5 years
Can be mount in 19" rack, Hot-Swappable - easy & quick replacement of converter and power supply
Compatible converters:
#06423 Gigabit media converter 10/100/1000 Mbps RJ-45/SC, MM 850 nm, 550 m (TP-Link MC200CM)
#06424 Gigabit media converter 10/100/1000 Mbps RJ-45/SC, SM 1310 nm, 15 km (TP-Link MC210CS)
#06306 Media converter 10/100 Mbps RJ-45/SC, SM 1310nm, 20 km, WDM (TP-Link MC112CS-20)
#06305 Media converter 10/100 Mbps RJ-45/SC, SM 1550nm, 20 km, WDM (TP-Link MC111CS-20)
#06425 Gigabit media converter 10/100/1000 Mbps RJ-45/SFP slot 1000 Mbps (TP-Link MC220L)
