#06424
Media ConvertersTP-LINKMC210CS

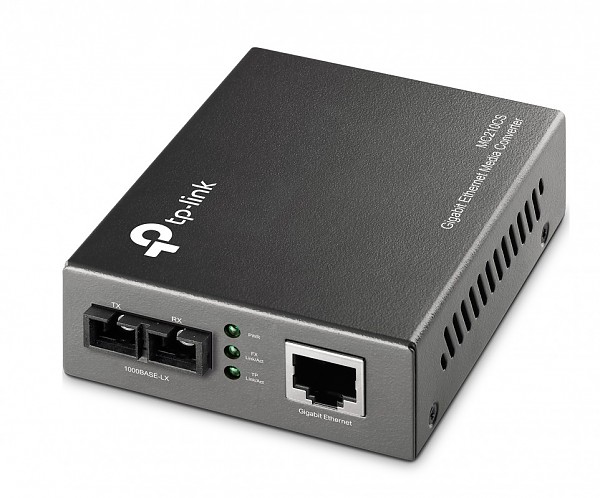

Gigabit media converter 10/100/1000 Mbps RJ-45/SC, SM 1310 nm, 15 km (TP-Link MC210CS)

Standards IEEE 802.3ab/z/i/u
Port #1 10/100/1000 Mbps RJ-45 (Auto MDI/MDIX)
Port #1 max. distance 100 m
Port #1 cable type UTP/STP cat. 5
Port #2 1000 Mbps SC SM
TX wavelength 1310 nm
RX wavelength 1310 nm
Port #2 max. distance 15 km
Port #2 cable type 8.3/125, 8.7/125, 9/125, 10/125 µm
Housing / case type desktop / slot module
Dimensions 94.5x73x27 mm
Operating temperature 0°C ÷ 40°C
Operating humidity 10% ÷ 90%,
non-condensing
Power external,
9V/0.6A
Max Power Consumption 1.8W
Certificates FCC Class B,
CE,
VCCI-B
Warranty period 5 years
Manufacturer TP-Link
Can be mount in:
#06985 Rack chassis for media converter, 14-port (TP-LINK TL-MC1400)

UNMANAGED MEDIA CONVERTERS, SINGLE AND MULTI MODE
Net Price: 26,60 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
