Environmental MonitoringVUTLANUSB100

USB100 / USB dome camera

USB UVC/MJPEG digital camera with high resolution and with IR Leds for direct connection to the VUTLAN system controller.

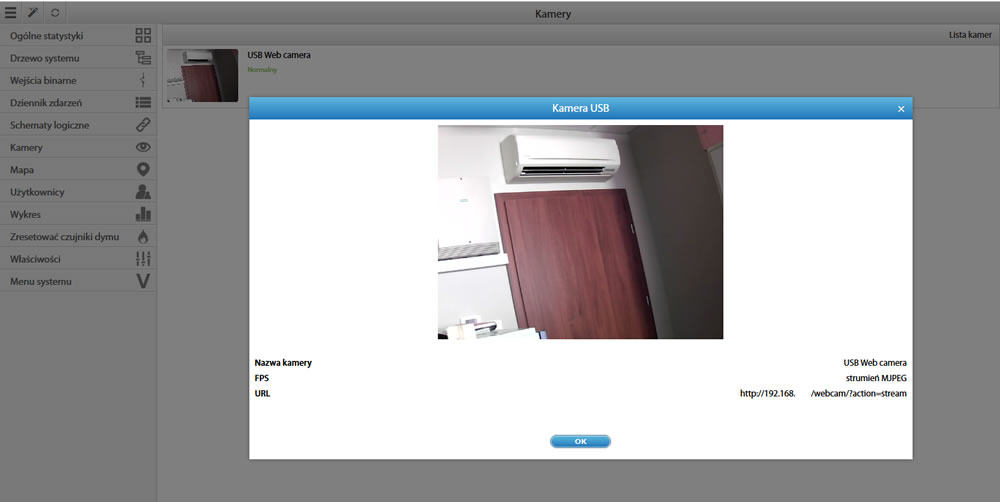

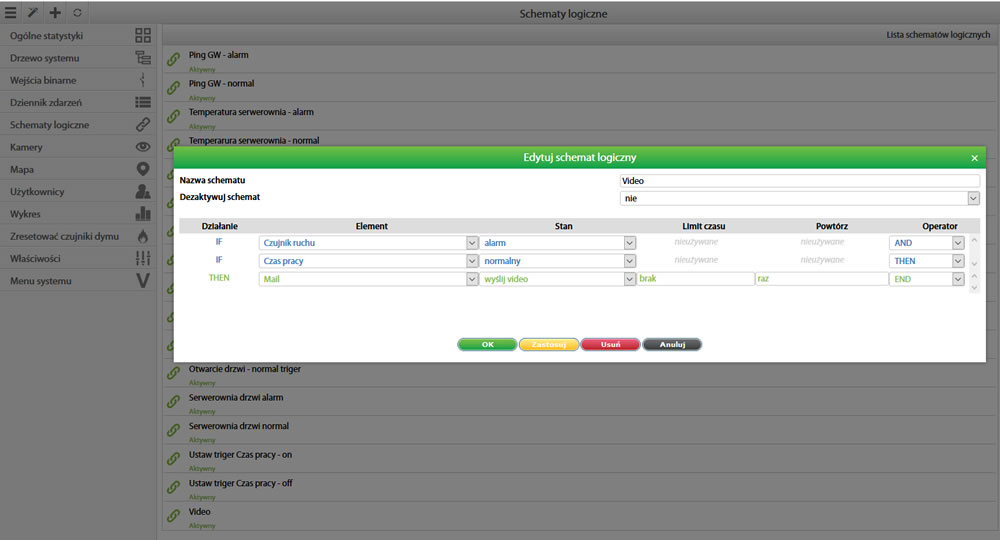

It allows to view the monitored room on an ongoing basis as well as send a video sequence to an email address in response to a defined event.

In addition, the camera connected to the VUTLAN controller is visible in the network at a dedicated URL, allowing to capture the video stream just like from an IP camera (MJPEG stream).
HARDWARE FEATURES:
Interface USB format(Complies with USB 2.0
CAMERA:
Image Sensor 1/4" Color CMOS H62
Resolution 1.0 Megapixel (640 x 480)
Minimum Illumination 0.01 Lux @ F1.2
VIDEO/IMAGE:
Video Compression MJPEG
Frame Rate & Resolutions Max. 20 fps at 640x480 (VGA),
Max. 20 fps at 320x240 (QVGA)
Video Streaming Controllable Frame Rate
OTHERS:
Cable lenght 2,6m
Operating Temperature 0C∼ 40C (Humidity 0% RH∼ 80% RH)
Weight 550g

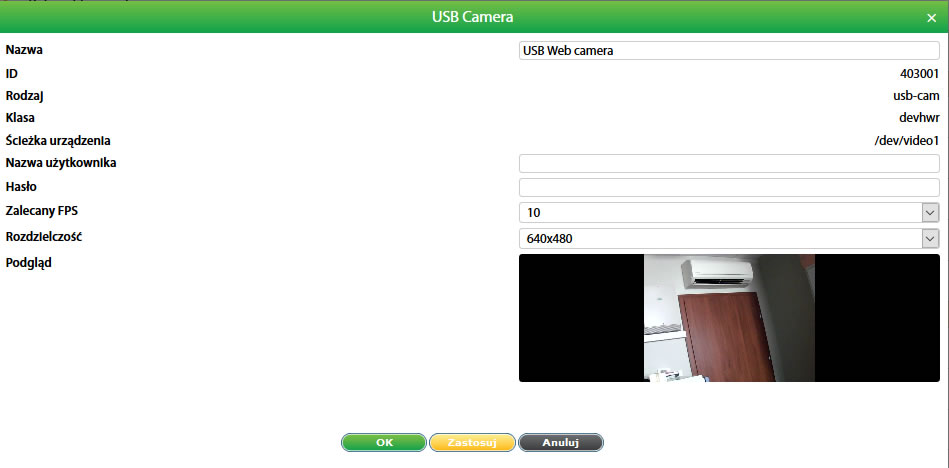

Configuration/Applications
08204-1 08204-2 08204-3
Net Price: 108,00 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
x pcs
