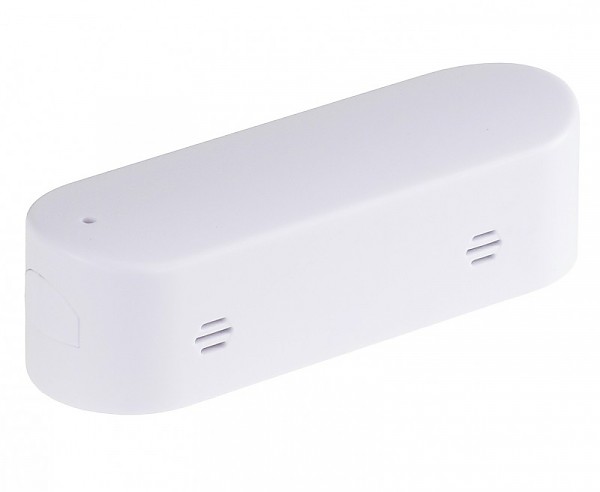

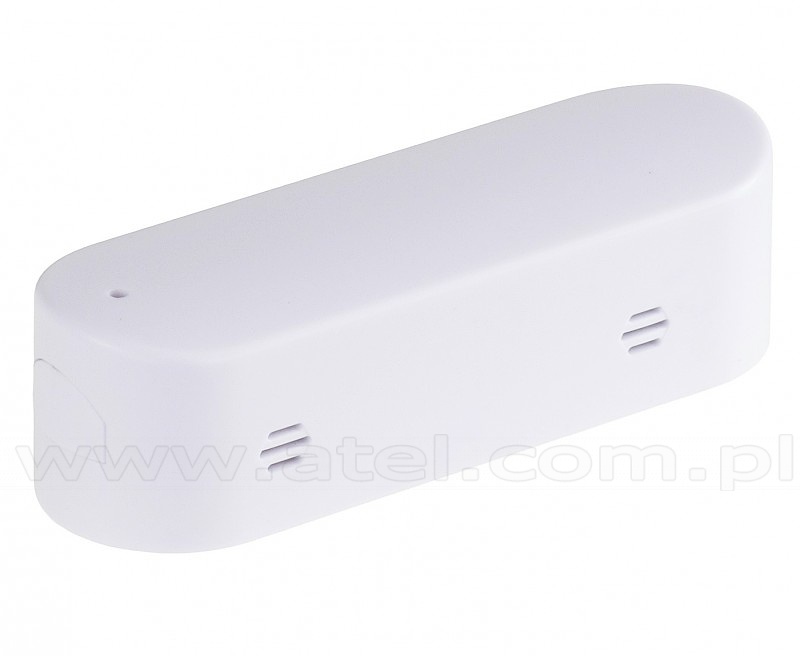

LoRaWAN Temperature & Humidity sensor (Vutlan LR490)
The LR490 Temperature & Humidity Sensor delivers precise measurement of temperature, humidity, vibration and calculated dew point with long-range wireless LoRaWAN connectivity. Easily connects to the LR800 Gateway & Server or 3rd party gateways for seamless monitoring, clear trend graphs, and accurate environmental control.
| Technical specifications | |
|---|---|
| Measured temperature range | -10 ÷ 80°C |
| Accuracy | ±0.5°C in –10 to 85 °C range |
| Measured humidity range | 0 - 95%RH |
| Accuracy %RH | ± 3% RH in 0 to 80% range |
| Protocol | LoRaWAN, class A, ver. 1.0.3 |
| Frequency | 868 MHz |
| Addressing | OTAA only, DevEUI, AppKey |
| Transmission power | +10 / +22 dBm |
| Maximum distance from the appliance | 1 km |
| Features | |
| Battery | ER14335 3.6V, replacable |
| Life time of the battery | Up to 25,000 uplinks. 3 years when a 5 minute uplink interval is used. |
| Net weight | 160g |
| Dimensions | 83 × 27.4 x 23.8 mm |
| * For special orders only
Net Price: 58,10 EUR Unit: pcs
|
|
Minimal order quantity: 1 x pcs Quantity in the smallest collective package: 1 x pcs |
