#03872
Testing devicesNOYAFANF-8209

Cable tester RJ-45, w/LCD. PoE and port flash (NOYAFA NF-8209)

The NF8209 cable tester is used to measure cable continuity. It enables the measurement of connection errors in UTP / STP twisted pairs. The device is equipped with an LCD display.
PoE detection and identify the standard (IEEE802.3at/af / non standard)
Display LCD 128x64 dot-matrix with backlight
Frequency of generator 130kHz
Max. length of the tested cabling 200m (length test),
600m (wiremap)
Length measuring accuracy 1.6m
Max. current <130mA (emitter),
<100mA (reciever)
Function selection graphical menu
Power supply 3x1.5V AAA (emitter),
9V (reciever)
PoE test range 5÷60V
Packaging cardboard box + soft case
Warranty 12 months
Manufacturer NOYAFA

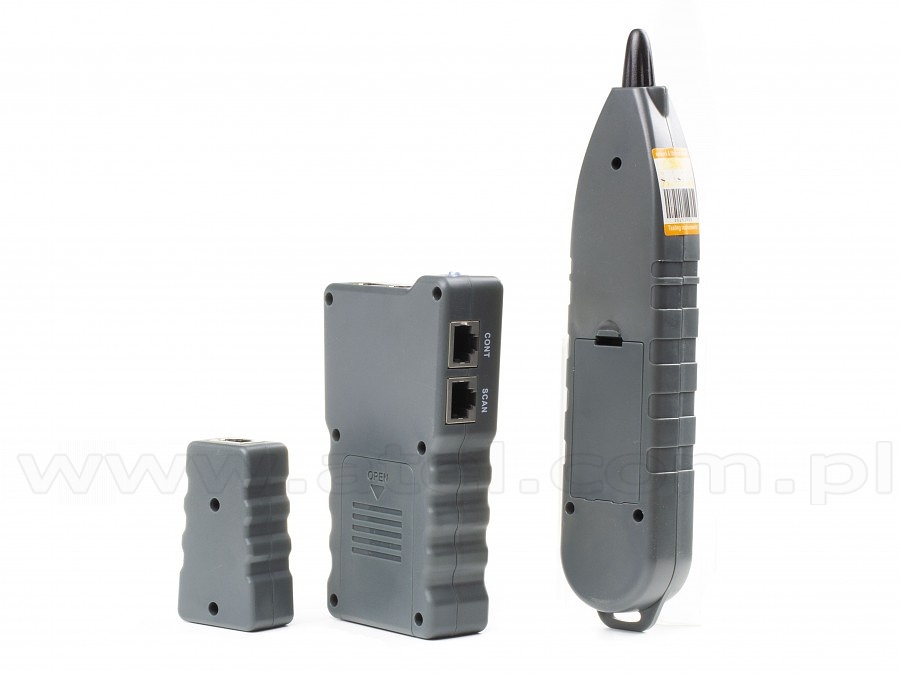

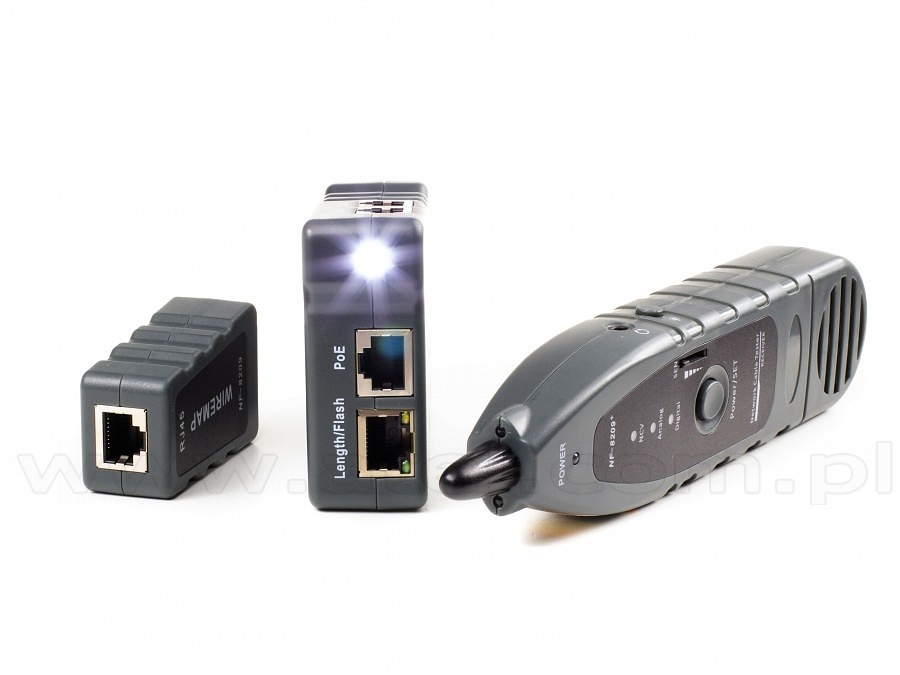

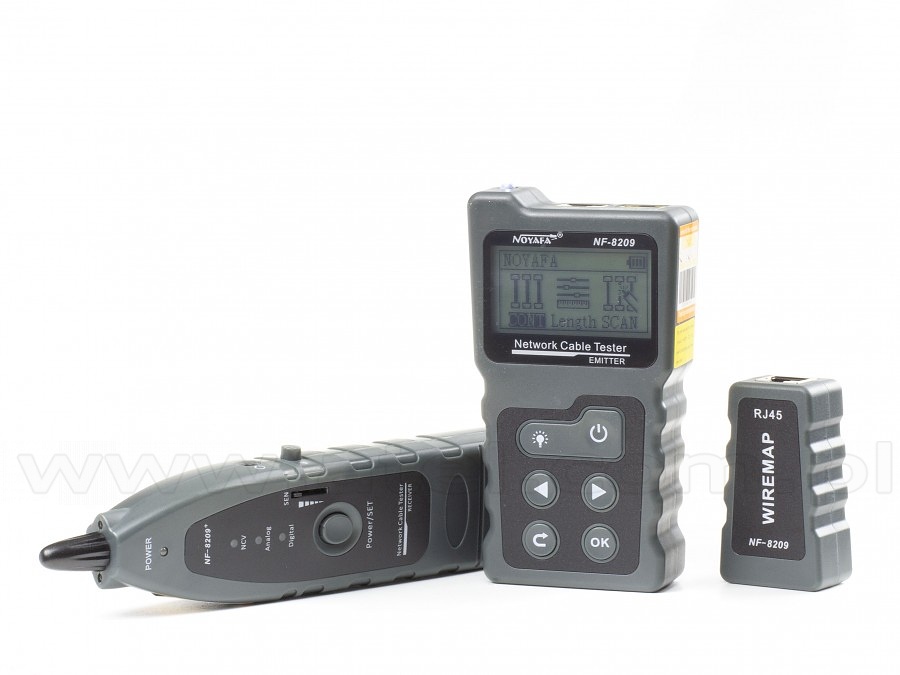

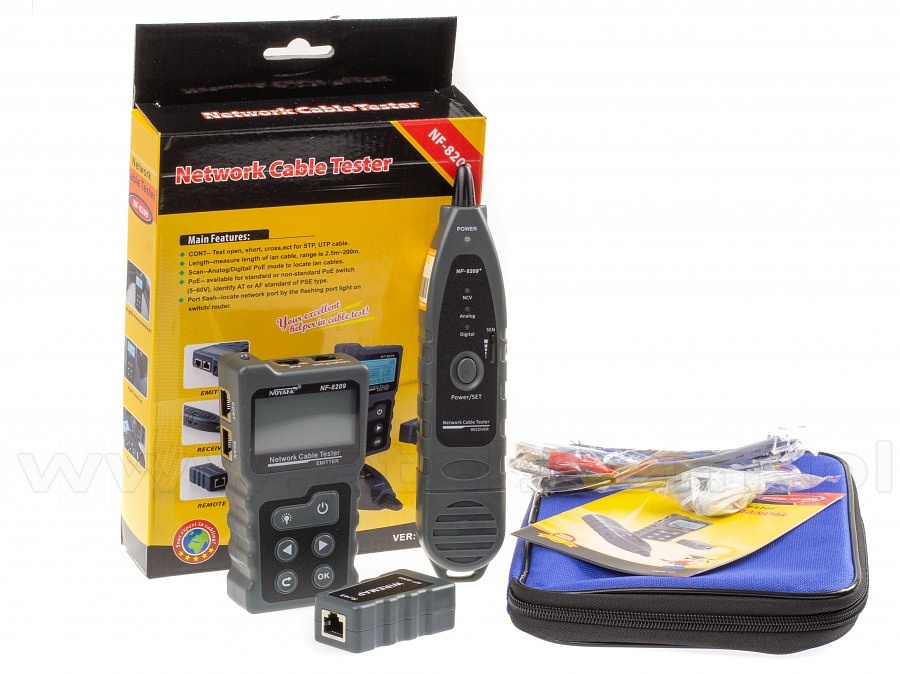

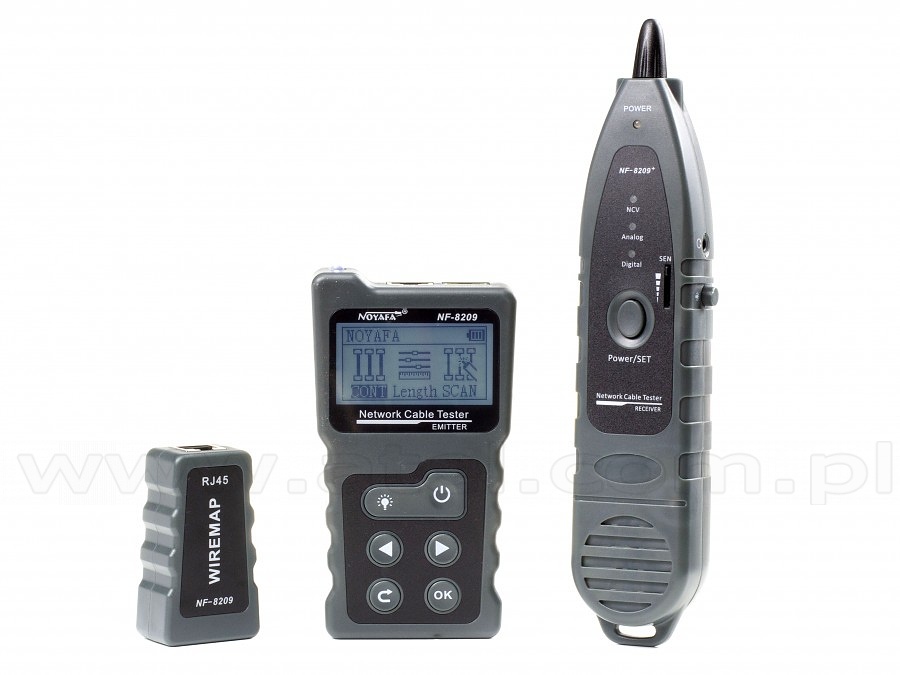

The kit includes:
- emitter,
- reciever,
- remote,
- connection wires,
- soft case

User Manual (1,51 MB)
ADVANCED CABLE TESTERS
TAGS: PoE
Net Price: 64,50 EUR  Unit: pcs
Minimal order quantity: 1 x pcs
Quantity in the smallest collective package: 1 x pcs
